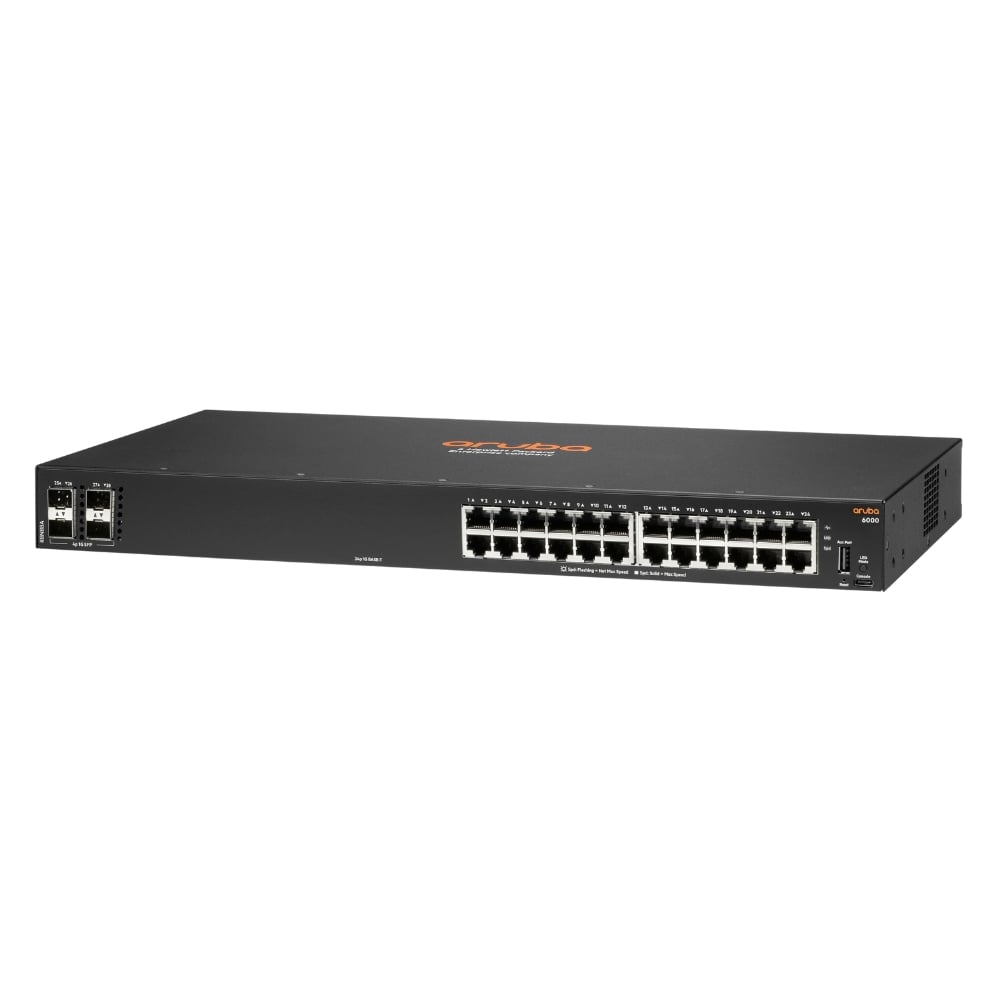

Name: R8N87-61201 HPE Aruba CX 6000 24-Port PoE Managed Switch 370W
Brand: HPE
SKU: R8N87-61201
Price: 1264.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The HPE Aruba CX 6000 24-Port Managed Switch offers 24 Gigabit Ethernet ports with Class 4 PoE delivering up to 370 watts of power, alongside 4 dedicated 1GbE SFP ports for uplink flexibility. It features management capabilities suitable for enterprise network environments requiring PoE support and fiber connectivity.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Managed Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 1000Base-X, USB Console
Port Speed	10/100/1000
UpLink Ports	4
POE Support	PoE+
Switching Capacity	56 Gbps
Switch Forwarding Rate	41.67 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 2
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Remote Protocols	Yes
Management Interfaces	Web UI,CLI (SSH),SNMPv1/v2c/v3,REST API,Aruba Central
Security Features	802.1X,ACLs,MAC Authentication,DHCP Snooping,Dynamic ARP Inspection,Storm Control,Port Security
Management Type	Managed
Security	802.1X,MAC Authentication,SSH,HTTPS,ACLs
Remote Management Protocol	SNMPv1/v2c/v3,REST,SSH,HTTPS

Power & Cooling
Fans	Yes (internal fan)
Power	370W PoE budget, AC 100-240V 50/60Hz
Power Supply	Internal 370W AC power supply

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3az

Product Description
The HPE Aruba CX 6000 24-Port Managed Switch (R8N87-61201) is designed to support scalable and flexible network deployments. It delivers 24 ports of 10/100/1000 Mbps Ethernet with Class 4 Power over Ethernet (PoE), enabling power and data delivery over a single cable to network devices such as IP phones, wireless access points, and security cameras. This switch also offers 4 1GbE SFP uplink ports for fiber connections, supporting diverse network topologies and extended reach. As a managed switch, it provides enhanced network control, monitoring, and configuration capabilities suitable for enterprise and campus environments. Key Features 24 10/100/1000 Mbps ports with Class 4 PoE delivering up to 370W total power 4 1GbE SFP ports for flexible fiber optic uplink connectivity Managed switch functionality for advanced network administration Supports Power over Ethernet to simplify device deployment and cabling Designed for enterprise and campus network infrastructure This switch serves as a core or edge device within network environments, providing essential connectivity and power for IP-based network devices. Its combination of PoE and fiber uplinks allows integration into various network architectures while supporting centralized management.

Use Cases
This switch is typically deployed in enterprise and campus network environments requiring Power over Ethernet support for devices such as wireless access points, VoIP phones, and surveillance cameras. It suits scenarios where managed network control and fiber uplink options are necessary for network scalability and reliability. How It's Used: Providing power and connectivity to IP phones and VoIP deployments in office environments Supporting wireless access points with PoE in campus or branch locations Offering fiber uplinks via 1GbE SFP ports for integration into broader network topologies Serving as an access layer switch managed for network segmentation and control Supplying power to security cameras and other PoE-enabled devices in corporate facilities Facilitating network expansion with managed features to support device monitoring and configuration Overall, the switch plays a role in delivering centralized management, powering endpoints via PoE, and providing flexible connectivity options within medium to large network infrastructures.

FAQ's
What does Class 4 PoE mean on this switch? Class 4 PoE refers to the Power over Ethernet standard that allows the switch to deliver up to 30 watts of power per port, enabling it to support devices with higher power requirements such as IP cameras and wireless access points. How many ports support PoE on the R8N87-61201 switch? The switch provides 24 10/100/1000 Ethernet ports, all of which support Class 4 PoE for powering connected devices through the network cable. What type of connectivity do the 4 SFP ports provide? The 4 SFP ports offer 1 Gigabit per second fiber optic uplink capabilities, allowing the switch to connect to other network devices over longer distances using fiber cables. Is the R8N87-61201 a managed or unmanaged switch? This product is a managed switch, providing advanced network control, configuration, and monitoring features suitable for enterprise environments. How much total PoE power does the switch supply? The switch can deliver up to 370 watts of total Power over Ethernet across all PoE-enabled ports, supporting multiple powered devices simultaneously. Can this switch be used in campus network environments? Yes, the switch is designed for use in enterprise and campus networks, offering managed features, PoE support, and fiber uplinks to meet diverse networking requirements.
