| Product Overview |
|---|

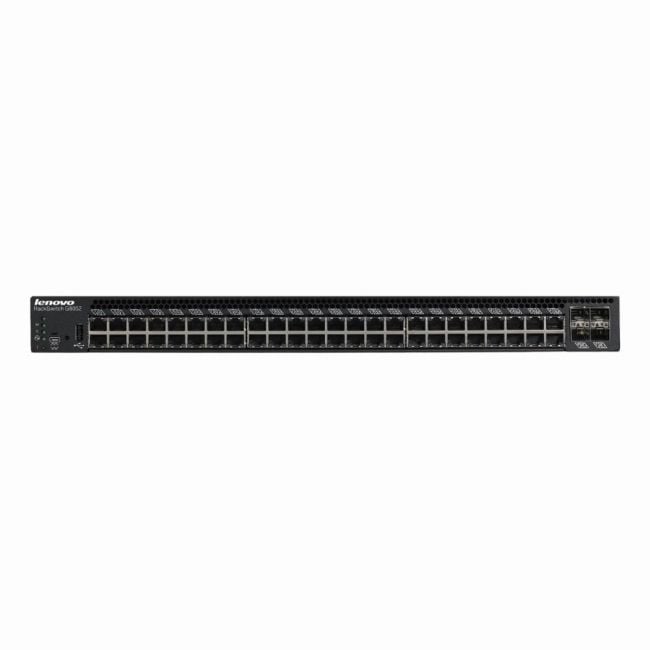

The Lenovo RackSwitch G8052 is a Layer 3 managed switch that combines 48 Gigabit RJ-45 ports with 4 10Gbps SFP+ uplinks, offering a versatile solution for data center and enterprise networks. It fits neatly into a 1U rack space and provides essential routing and traffic control functions to keep network operations smooth and efficient. |
| General Information | |
|---|---|
| Brand | Lenovo |
| Part Number | 00MY099 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x RJ-45 1000Base-T + 4 x SFP+ |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-T, 10G SFP+, RJ-45, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 1 Gbps (RJ-45), 10 Gbps (SFP+) |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 Entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes (Web GUI/HTTP(S), CLI via SSH/Telnet, SNMP v1/v2c/v3) |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (SSH, Telnet), Serial Console (RJ-45), USB Console, SNMP v1/v2c/v3, RMON |
| Security Features | 802.1X, ACLs, RADIUS/TACACS+, SSH, SNMPv3, Port Security, Storm Control, DHCP Snooping, BPDU Guard |
| Security | RADIUS, TACACS+, ACLs, DHCP Snooping, 802.1X |
| Remote Management Protocol | CLI, SNMP v1/v2c/v3, HTTP/HTTPS, Telnet/SSH |
| Routing Protocol | Static,RIP,OSPF |
| Power & Cooling | |
|---|---|
| Fans | 2 hot-swappable variable-speed fans |
| Power | AC 100-240V, 50/60Hz; typical power consumption ~100W (varies by configuration) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7 x 17.3 x 17.5 inches |
| Weight | 4.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.1D, 802.1p, 802.1Q, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3u, 802.3x, 802.3z |
| Product Description |
|---|
The Lenovo RackSwitch G8052 is built for environments requiring reliable and scalable network solutions. It is often found in enterprise data centers and campus networks where managing large volumes of traffic efficiently is crucial. Network administrators benefit from its Layer 3 capabilities, which provide advanced routing features beyond simple switching. Key Features
This switch is typically deployed in medium to large enterprise setups where reliable and flexible connectivity is critical. It plays a key role in aggregating traffic from various devices, ensuring smooth data flow, and supporting business operations without interruption. |
