N9K-C93108TC-FX

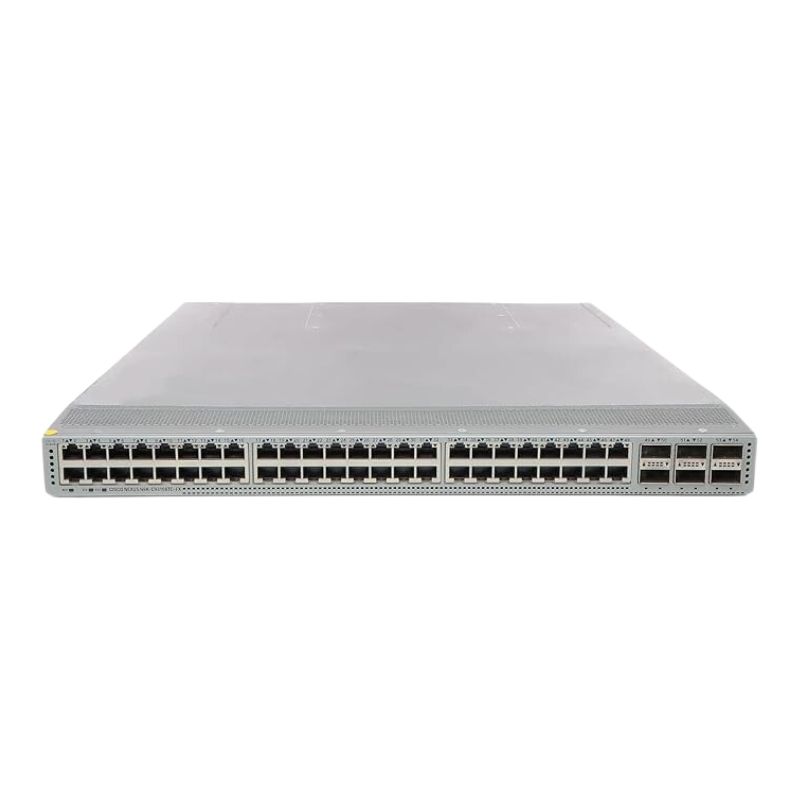

The Cisco Nexus 9300-FX (N9K-C93108TC-FX) is a high-performance, rack-mountable, 1U height Layer 3 managed network switch designed to support enterprise-level applications. With 48 x 10GBASE-T Ethernet ports and 6 x QSFP28 ports supporting 40/100 Gbps, it provides excellent scalability for high-speed data transfer and connectivity. The switch is equipped with dual redundant, hot-swappable power supplies, ensuring continuous uptime and system reliability.

With a switching capacity of 2.16 Tbps and a forwarding rate of 1.25 billion packets per second (bpps), the Nexus 9300-FX can handle the demands of high-bandwidth environments and ensure low-latency communication. The switch supports up to 256,000 IPv4 routing entries and 128,000 IPv6 routing entries, making it suitable for modern data centers and large-scale enterprise networks.

The Cisco Nexus 9300-FX offers robust security features, including IEEE 802.1X authentication, MACsec encryption, and Control Plane Policing (CoPP) for secure and efficient network traffic management. It also supports a variety of routing protocols such as BGP, OSPF, EIGRP, and more, providing flexibility for complex network topologies.

Key Features:

• Switch Device Type: Managed Layer 3 Network Switch for advanced networking capabilities.
• Switch Enclosure Type: Rack-mountable, 1U height for efficient space utilization in data centers.
• Switch Ports: 48 x 10GBASE-T Ethernet ports and 6 x QSFP28 ports supporting 40/100 Gbps for high-speed connectivity.
• Switching Capacity: 2.16 Tbps for handling large volumes of network traffic.
• Switch Forwarding Rate: 1.25 billion packets per second (bpps) for efficient packet forwarding.
• Default Power Supply: Dual redundant, hot-swappable power supplies for continuous operation.
• IPv4 Routing Entries: Supports up to 256,000 entries for robust network routing.
• IPv6 Routing Entries: Supports up to 128,000 entries for IPv6-enabled networks.
• Switch Jumbo Frame: Supports frames up to 9216 bytes for large data transfers.
• Security: IEEE 802.1X authentication, MACsec encryption, CoPP, RBAC, Secure Boot, and Image Signing for enhanced network security.
• DRAM: 16 GB for fast data processing and efficient networking.
• Switch Flash Memory: 64 GB for storing configuration and data.
• Switch Compliant Standards: Compliant with various IEEE standards including IEEE 802.3, IEEE 802.1Q, and IEEE 802.3ad for enhanced networking compatibility.
• Switch Routing Protocol: Supports BGP, OSPF, EIGRP, IS-IS, RIP, Static Routing, and Policy-Based Routing (PBR).
• Switch MAC Address: 128,000 entries for efficient address management.
• VLAN IDs: Supports up to 4096 VLANs for network segmentation.
• Switch Power: Typical: 250W, Maximum: 400W for efficient power usage.
• Fans: Hot-swappable, redundant fans for enhanced cooling.
• Connector Type: RJ-45 for 10GBASE-T ports, QSFP28 for 40/100 Gbps ports for versatile connectivity.
• Switch Remote Management Protocol: Supports CLI, SNMP v1/v2/v3, HTTP/HTTPS, Telnet/SSH, RADIUS, and TACACS+ for comprehensive remote management.

The Cisco Nexus 9300-FX is a powerful and reliable switch for high-speed network environments, providing excellent scalability, security, and performance for enterprise networks and data centers.
