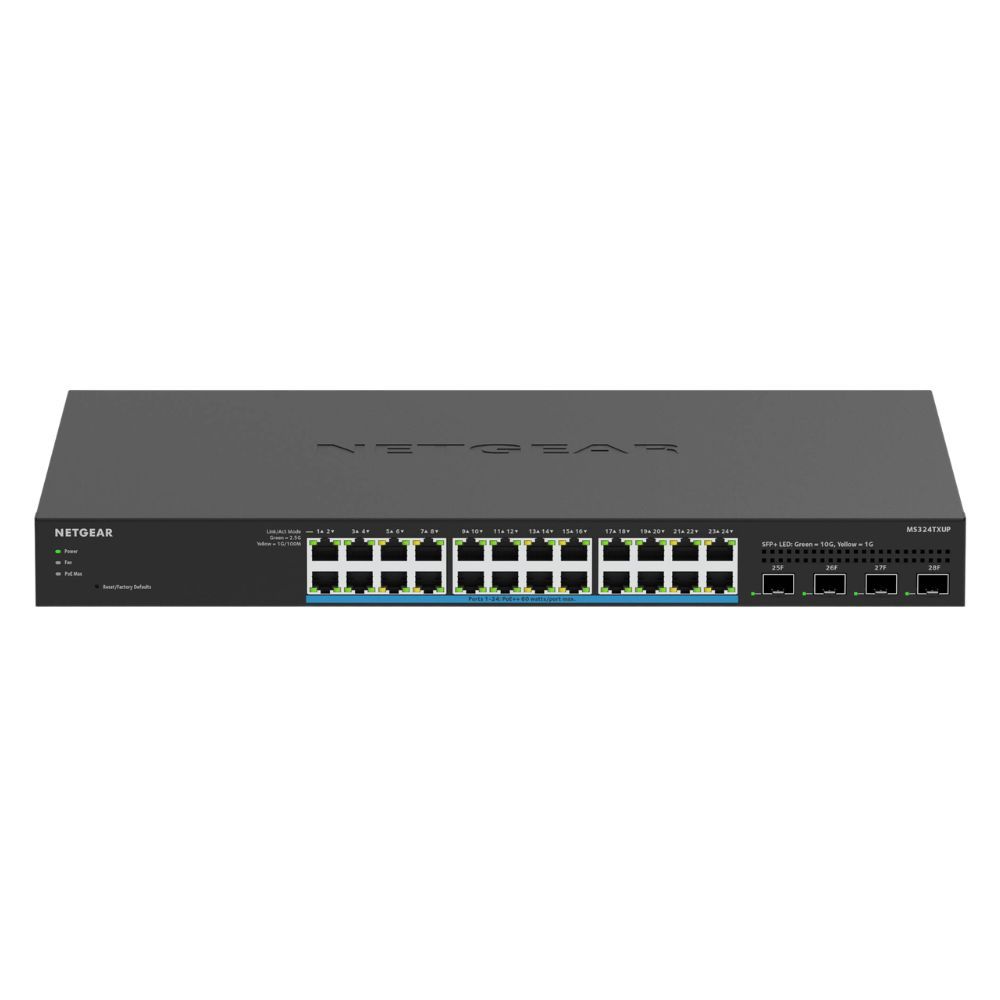

Name: MS324TXUP Netgear 24-Port 2.5G Ultra60 PoE++ Network Switch
Brand: Netgear
SKU: MS324TXUP
Price: 2583.42 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The Netgear MS324TXUP is a 24-port network switch offering 2.5G Ethernet speeds with Ultra60 PoE++ support, enabling up to 60W of power per port. It is designed for environments that require both higher network throughput and enhanced power delivery to connected devices.

General Information
Brand	Netgear
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Managed Switch, Smart Managed Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10G SFP+, 2.5GBase-T, RJ-45, SFP+
Port Speed	2.5G,1G,10G
UpLink Ports	2
POE Support	PoE++
Switching Capacity	160 Gbps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 2
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9000 Bytes

Management and Configuration
Remote Protocols	Yes
Management Interfaces	Web GUI,Command Line (SSH),SNMP
Security Features	802.1X,Access Control Lists (ACL),Port Security,Storm Control,DoS Prevention,BPDU Guard
Management Type	Smart Managed
Security	ACL,802.1X,Port Security
Remote Management Protocol	SNMP,SSH,HTTP/HTTPS

Power & Cooling
Power	720W (PoE budget)

Physical Characteristics
Weight	3.00

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X

Product Description
The Netgear MS324TXUP is a 24-port network switch designed to deliver 2.5G Ethernet connectivity with Ultra60 PoE++ power capabilities. This switch serves environments where devices require more than standard PoE power while maintaining multi-gigabit Ethernet speeds, making it suitable for modern network demands. Commonly used in office and enterprise settings, it supports high-power devices such as advanced wireless access points, IP cameras, and VoIP phones. Network administrators and IT professionals benefit from its integration of power and speed in a single device. Key Features 24 ports providing 2.5G Ethernet connectivity for faster data transfer Ultra60 PoE++ technology delivering up to 60W power per port Compact design optimized for rack or desktop installation Supports high-power network devices without additional power adapters Designed to support diverse network workloads requiring multi-gigabit speeds and robust power output This switch plays a significant role in simplifying network infrastructure by combining power delivery and increased bandwidth. It allows organizations to support demanding network devices while maintaining efficient network operation without separate power solutions.

Use Cases
The Netgear MS324TXUP is typically deployed in office, enterprise, and SMB networks where there is a need to connect multiple devices requiring higher data rates and substantial power. It benefits environments integrating advanced wireless infrastructure, IP telephony, and surveillance systems. How It's Used: Powering high-performance wireless access points requiring up to 60W PoE++ power per port Supporting IP surveillance cameras with increased power and data throughput demands Connecting VoIP phones and video conferencing devices in enterprise networks Deploying multi-gigabit switches in SMB networks to upgrade from standard Gigabit Ethernet Facilitating network expansion where both power and enhanced bandwidth are essential This switch serves as a centralized solution to manage network connections and power requirements simultaneously. It enables streamlined deployments by reducing the need for separate power injectors and supporting growing network bandwidth demands.

FAQ's
What does Ultra60 PoE++ mean on the MS324TXUP? Ultra60 PoE++ refers to the capability of delivering up to 60 watts of power per port over Ethernet, supporting devices that require higher power than standard PoE. Can the MS324TXUP support 1G devices? Yes, the MS324TXUP supports devices operating at 1G speeds as it provides multi-gigabit connectivity including 2.5G and standard Gigabit Ethernet. How many ports does the MS324TXUP have with PoE++ capability? All 24 ports on the MS324TXUP support 2.5G speeds with Ultra60 PoE++ power delivery. Is the MS324TXUP suitable for small office networks? The switch is designed for both SMB and enterprise environments where higher power and multi-gigabit speeds are needed, making it suitable for small office setups with advanced device requirements. Does the MS324TXUP require additional power injectors for PoE devices? No, the switch provides built-in Ultra60 PoE++ power to connected devices, eliminating the need for external power injectors for supported devices. What types of devices commonly connect to the MS324TXUP? Common devices include high-power wireless access points, IP cameras, VoIP phones, and other network equipment requiring multi-gigabit speeds and elevated PoE power.
