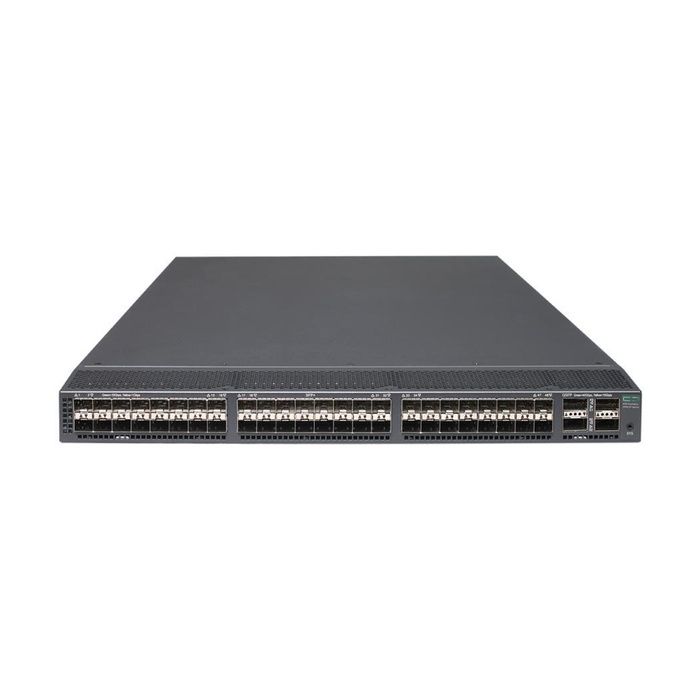

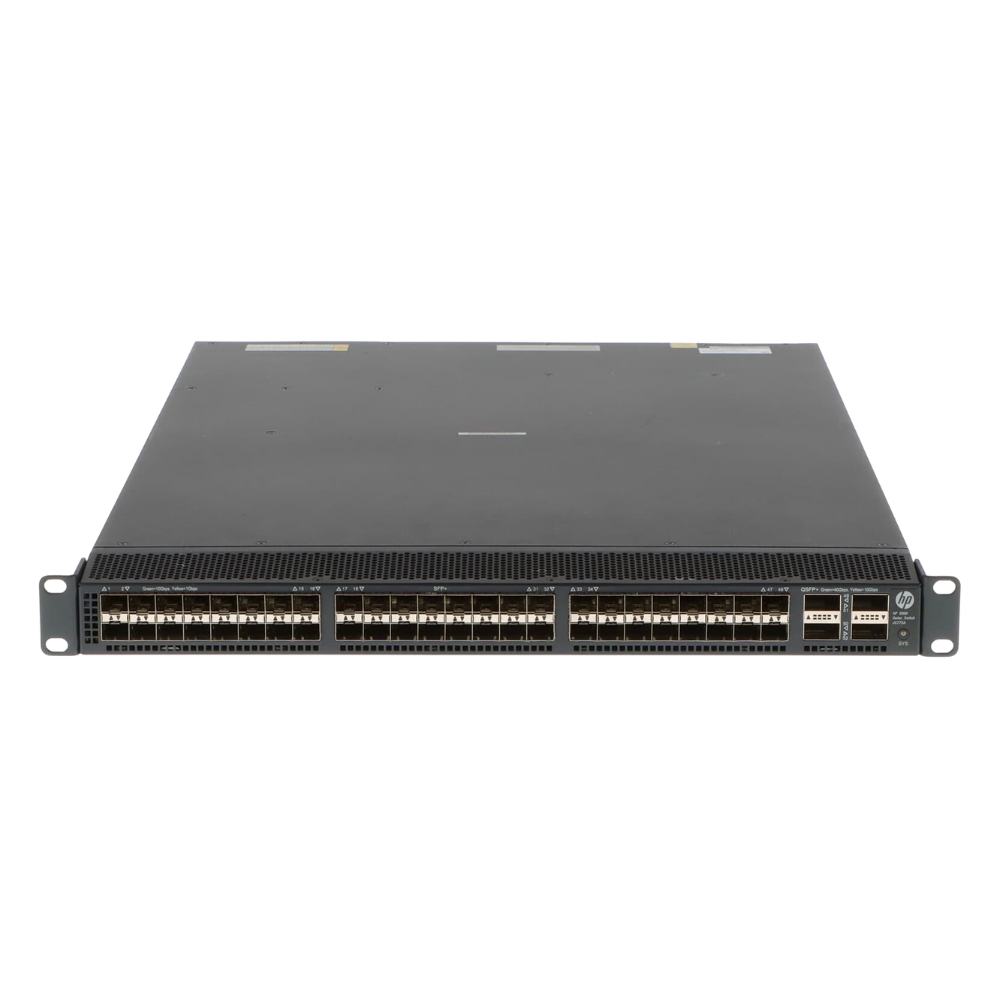

Name: JH302A#ABA HP FlexFabric 5900CP 48 SFP+ 4 QSFP+ 10G Layer 2 Switch
Brand: HP
SKU: JH302A#ABA
Price: 10271.73 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP FlexFabric 5900 Series 5900CP delivers high-density 10GbE and 40GbE connectivity tailored for data center and enterprise Layer 2 networking. It fits into standard rack environments and provides a managed solution focused on traffic control and scalability.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10G SFP+, 40G QSFP+, USB Console, Serial Console (RJ-45)
Port Speed	10G,40G
UpLink Ports	4 (QSFP+)
POE Support	No
Switching Capacity	1.28 Tbps
Switch Forwarding Rate	952.38 Mpps
DRAM	2 GB
Flash Memory	1 GB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 2
Connector Type	SFP+,QSFP+,Serial Console (RJ-45),USB Console

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Remote Protocols	Yes
Management Interfaces	Web GUI, CLI (SSH/Telnet), SNMP (v1/v2c/v3), Serial Console (RJ-45), USB
Security Features	802.1X,ACLs,Port security,SSH,Storm control,IP Source Guard,DHCP Snooping,ARP Inspection,RADIUS/TACACS+ support
Management Type	In-band and Out-of-band
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS

Power & Cooling
Fans	Yes (redundant, hot-swappable)
Power	100-240 VAC, 50/60 Hz, internal PSU (typical power ~250W)
Power Supply	Internal AC power supply (fixed)

Physical Characteristics
Dimensions	1.72 x 17.32 x 16.73 in
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1X

Product Description
The HP FlexFabric 5900 Series 5900CP switch offers a robust Layer 2 managed network solution designed for modern data center and enterprise environments. Equipped with 48 SFP+ ports and 4 QSFP+ uplink ports, it delivers flexible and scalable 10GbE and 40GbE connectivity options. This switch is commonly found in rack-mounted configurations, where space optimization and high port density are essential. Built for network administrators and IT professionals, it supports efficient traffic management and integrates seamlessly into existing infrastructure. Its Layer 2 features enable comprehensive VLAN segmentation and network traffic control, catering to demanding networking requirements. Key Features High-density 10GbE ports for demanding network throughput QSFP+ uplinks enable fast aggregation and inter-switch connections Supports advanced Layer 2 protocols for efficient network segmentation 1U rack-mountable chassis fits standard data center racks Managed capabilities allow for granular traffic and network policy control This switch provides a reliable platform for managing network performance and segmentation within dense environments. Its combination of port density and uplink speed supports operational continuity and flexibility without excessive physical footprint. The device's managed capabilities ensure it can be tuned to meet evolving network demands.

Use Cases
This switch is typically deployed in data centers and enterprise networks where space and connectivity density are critical. Network teams use it to improve traffic flow and support high-bandwidth applications in environments requiring scalable uplink options. How It's Used: Connecting high-performance servers in rack deployments within data centers Aggregating multiple 10GbE links into 40GbE uplinks for backbone connections Segmenting network traffic through VLANs in large enterprise LANs Supporting virtualization clusters requiring low-latency switching Enhancing network management in managed Layer 2 environments By integrating this switch, organizations can maintain efficient network operations with scalable port density and uplink capacity. It supports evolving traffic demands while fitting into standard rack infrastructures commonly found in professional IT settings.
