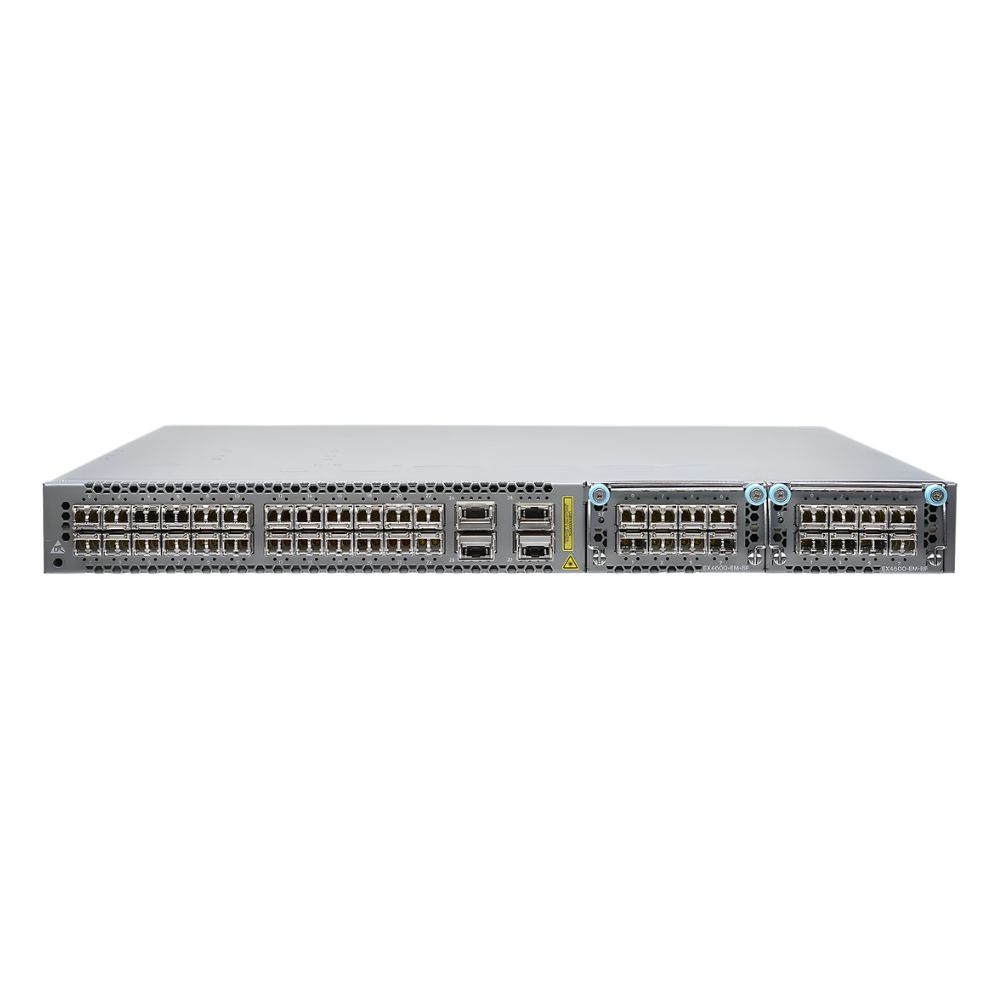

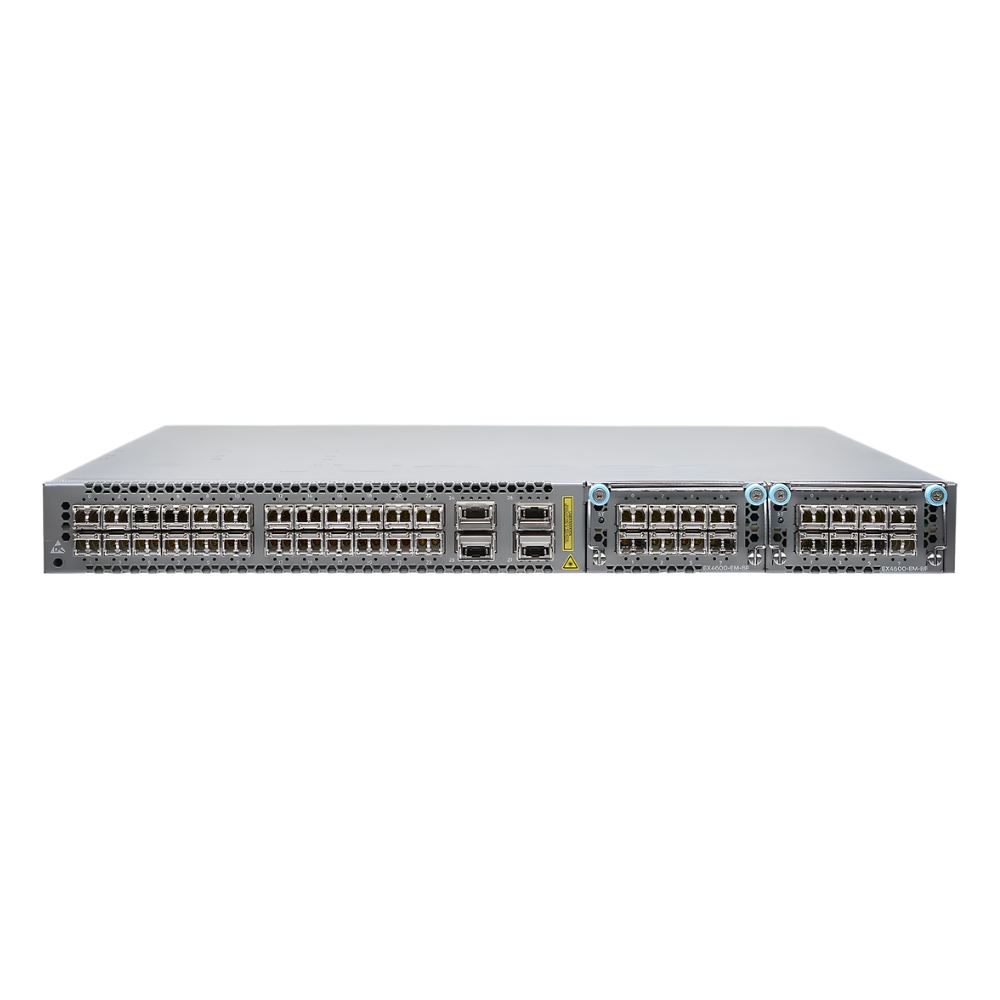

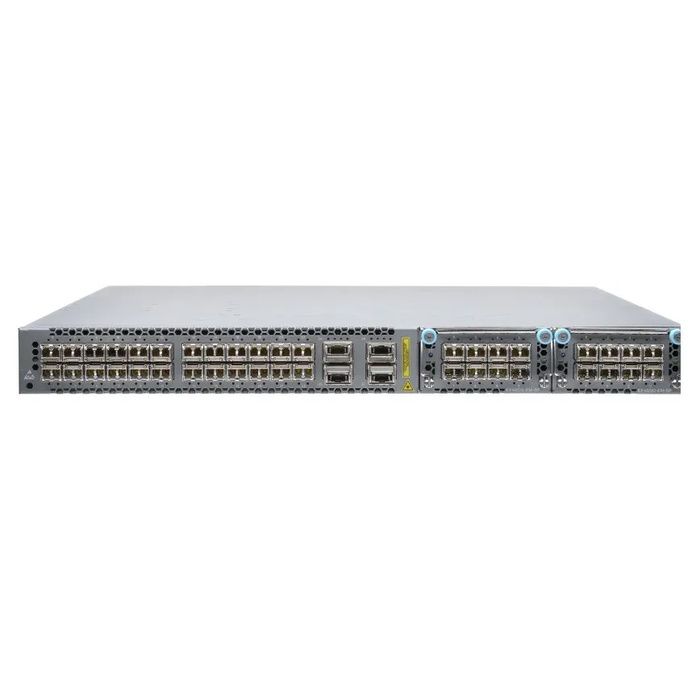

Name: EX4600-40F-DC-AFI Juniper 24x SFP+ 4x QSFP+ 2 Exp Slot DC Switch
Brand: Juniper Networks
SKU: EX4600-40F-DC-AFI
Price: 4987.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The EX4600-40F-DC-AFI is a versatile network switch that combines multiple high-speed ports with expandable slots to support growing network infrastructures. Positioned for environments requiring DC power, it fits well in data center and enterprise setups where reliability and scalability are important. By blending 10GbE and 40GbE connectivity with a compact design, it enables effective network aggregation and access layer functions without compromising on performance or space.

General Information
Brand	Juniper Networks
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Layer 3, Managed Switch, Stackable Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	0
Number of Ports	28-Ports
Port Type	40G QSFP+, SFP+, QSFP / QSFP+, USB Console, Serial Console (RJ-45)
Port Speed	10G,40G
UpLink Ports	4
POE Support	No
Switching Capacity	800 Gbps
DRAM	8 GB
Flash Memory	8 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
NIM Slot	2
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP+,QSFP+,RJ-45 (console),USB

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Console (RJ-45),USB,Telnet,SSH,SNMP,J-Web (Web GUI),NETCONF
Security Features	802.1X,MAC limiting,ACLs,Storm control,RADIUS,TACACS+
Management Type	CLI,Web GUI (J-Web),SNMP,NETCONF
Remote Management Protocol	SSH,Telnet,HTTPS/HTTP,SNMP,NETCONF
Routing Protocol	Static,OSPF,OSPFv3,BGP,VRRP

Power & Cooling
Fans	Front-to-back, redundant, field-replaceable fans
Power	-40 to -72 VDC
Power Supply	Dual redundant -48 VDC hot-swappable power supplies

Physical Characteristics
Dimensions	1.73 x 17.25 x 18.90 in (H x W x D)
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, cURus, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3,IEEE 802.1Q,IEEE 802.1D,IEEE 802.3ad,IEEE 802.1p,IEEE 802.3x

Product Description
The EX4600-40F-DC-AFI switch delivers robust performance tailored for demanding network environments. It offers a combination of 24 SFP+ ports alongside 4 QSFP+ ports, enabling versatile connectivity options for both 10GbE and 40GbE links. Often found in enterprise and data center settings, this switch supports seamless integration with existing network infrastructure. Built for network professionals who require scalable and reliable switching solutions, the EX4600 series supports high throughput and low latency. Its DC power design targets installations where direct current power supplies are preferred or standard, such as in telecom or certain data center racks. Key Features High-density 10GbE ports paired with 40GbE uplinks for aggregated bandwidth Expansion slots allow for additional modules to meet evolving network demands Energy-efficient DC power architecture reduces operational costs Supports advanced Layer 2 and Layer 3 features for flexible network design Compact form factor suitable for space-constrained environments This switch plays a critical role in backbone and aggregation layers, providing stable and scalable networking capabilities. Its design balances performance with energy considerations, making it a practical choice for network teams focused on operational efficiency.

Use Cases
The EX4600-40F-DC-AFI switch is commonly deployed in data centers and large enterprise networks where high-throughput aggregation and access switching are essential. It benefits network administrators managing environments with DC power supplies or those seeking efficient, scalable platforms for their network backbone. How It's Used: Aggregating traffic from multiple 10GbE servers in a data center rack Serving as an access layer switch for high-performance enterprise networks Supporting DC-powered telecom equipment racks requiring reliable switching Extending network capacity via expansion slots for added connectivity options Integrating with virtualization infrastructure for efficient data handling By supporting flexible configurations and robust connectivity, this switch helps maintain consistent network performance in demanding settings. It supports operational scalability and reliability, aiding IT teams in managing complex network architectures effectively.
