| Product Overview |
|---|

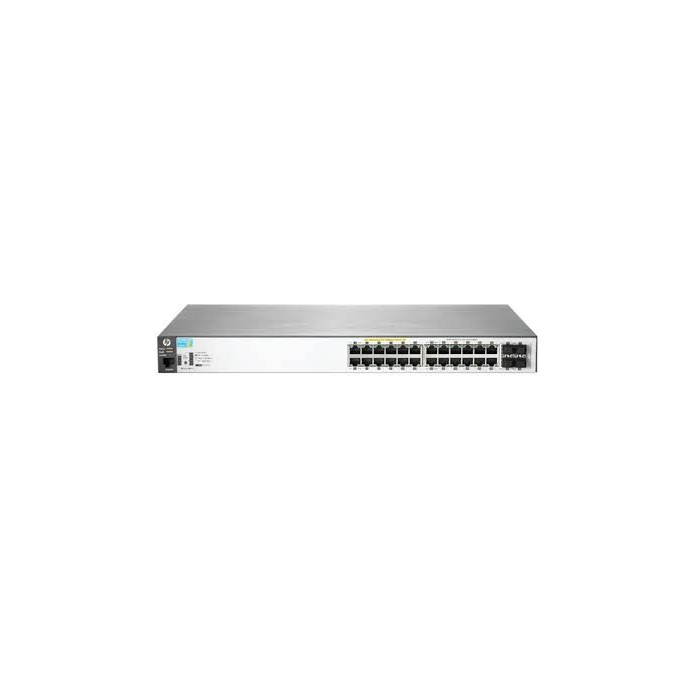

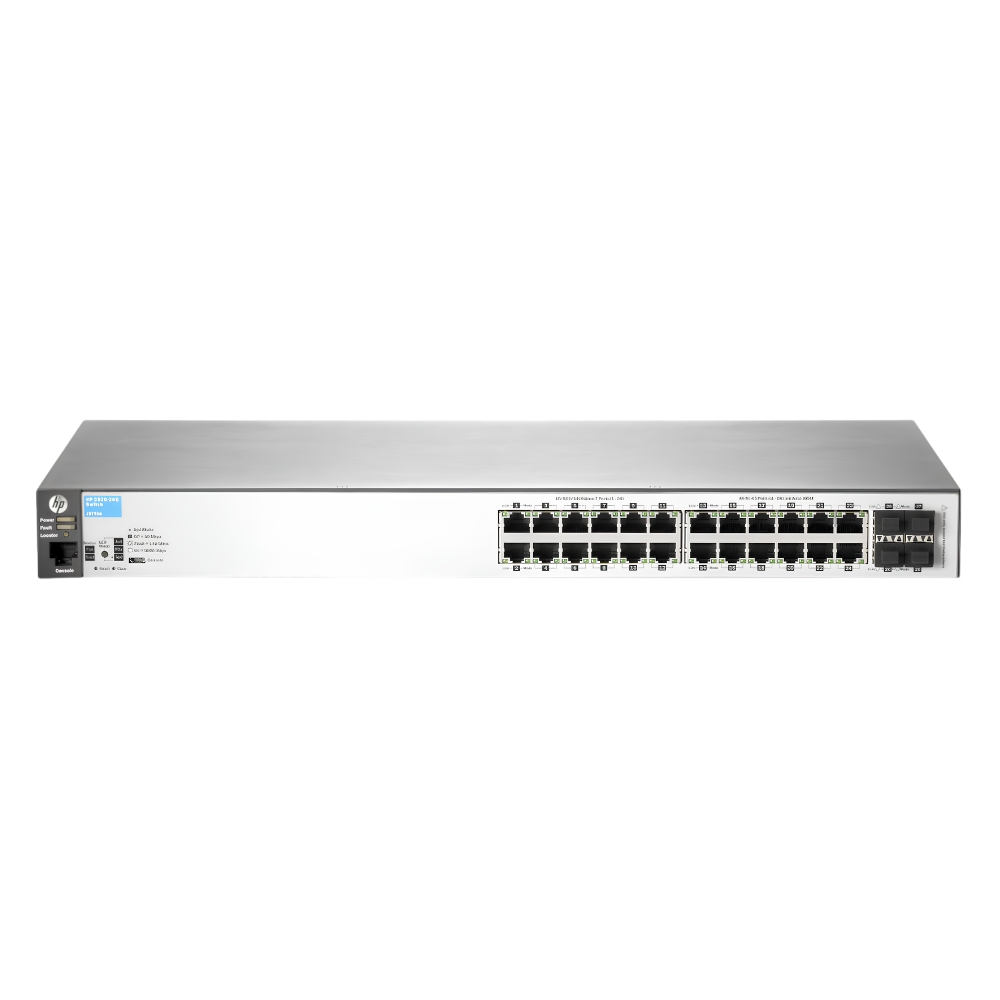

The HP 2530-24G-PoE+ is a Layer 2 switch that combines 24 Gigabit Ethernet ports with PoE+ functionality and 4 SFP ports for fiber connectivity, fitting well into enterprise networks requiring flexible power and data delivery. It offers solid network segmentation and connectivity for various office and data center settings. |
| General Information | |
|---|---|
| Brand | HP |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 2, Managed Switch, Smart Managed Switch, PoE Switch, Gigabit Switch |
| Form Factor | Desktop |
| Mount Type | 1U Rack, Desktop |
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 41.7 Mpps |
| DRAM | 128 MB |
| Flash Memory | 16 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP,USB Console |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8192 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), Command Line Interface (SSH, Telnet), SNMP v1/v2c/v3, RMON |
| Security Features | 802.1X, Access Control Lists (ACLs), RADIUS/TACACS+ authentication, Port security, Storm control, DoS protection |
| Management Type | Managed |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMPv1/v2c/v3, RMON |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | 100-240 VAC, 50-60 Hz; 370 W PoE budget (internal) |
| Power Supply | Internal AC power supply |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 10.04 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3af,IEEE 802.3at |
| Product Description |
|---|
The HP 2530-24G-PoE+ switch delivers reliable Layer 2 network connectivity with Power over Ethernet capabilities, allowing network devices like IP phones and wireless access points to operate without separate power sources. This switch is commonly found in enterprise network closets and wiring rooms, serving as a key component in structured network deployments. Engineered for IT professionals managing medium-sized networks, it supports multiple users with stable and efficient data transport. The switch is designed for environments where network segmentation and PoE power delivery are essential. Key Features
Overall, this switch plays a practical role in maintaining organized network traffic and powering connected devices efficiently. Its dependable performance ensures steady operation in typical enterprise networking conditions. |
| Use Cases |
|---|
The HP 2530-24G-PoE+ switch is often deployed in enterprise and campus networks where powered devices like IP phones, wireless access points, and cameras need reliable connections with integrated power. Network administrators benefit from its straightforward management and robust Layer 2 features in managed switch environments. How It's Used:
This switch helps maintain network stability and power delivery in environments where predictable performance and scalability are essential. Its integration of PoE and fiber uplinks supports evolving network demands smoothly. |
