| Product Overview |
|---|

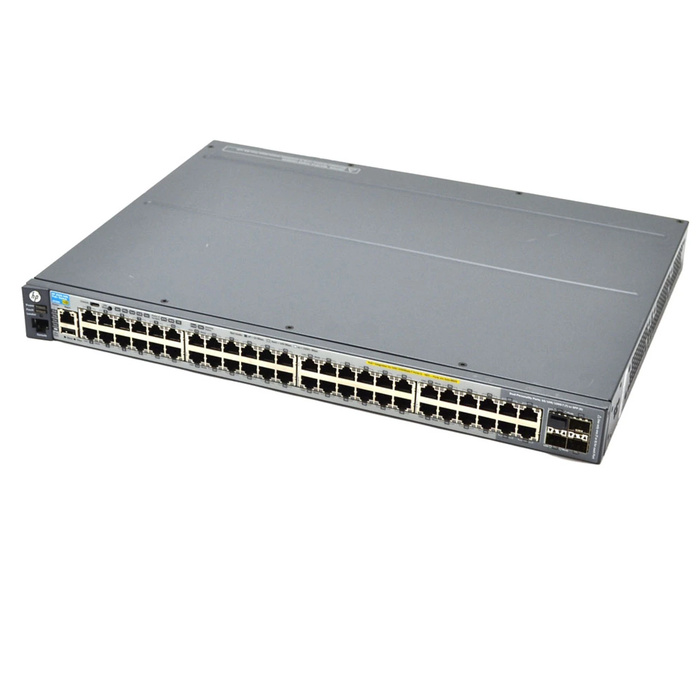

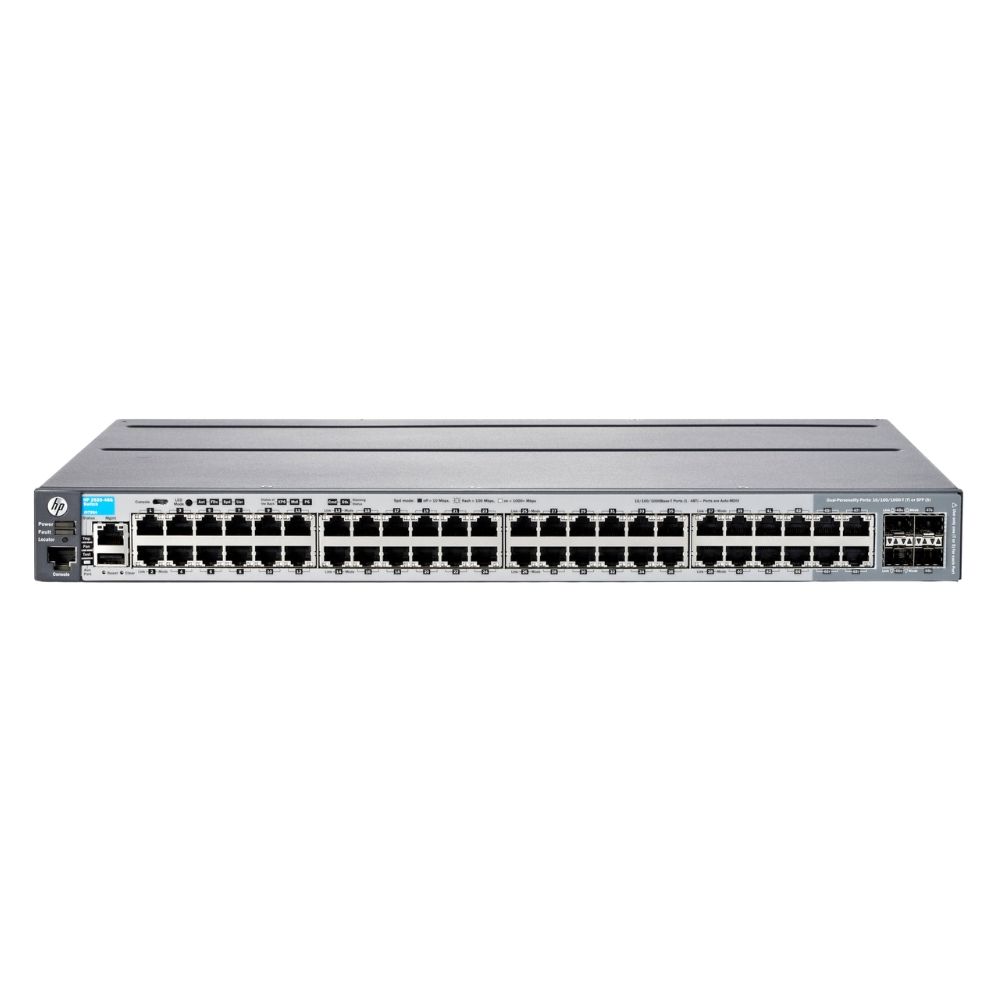

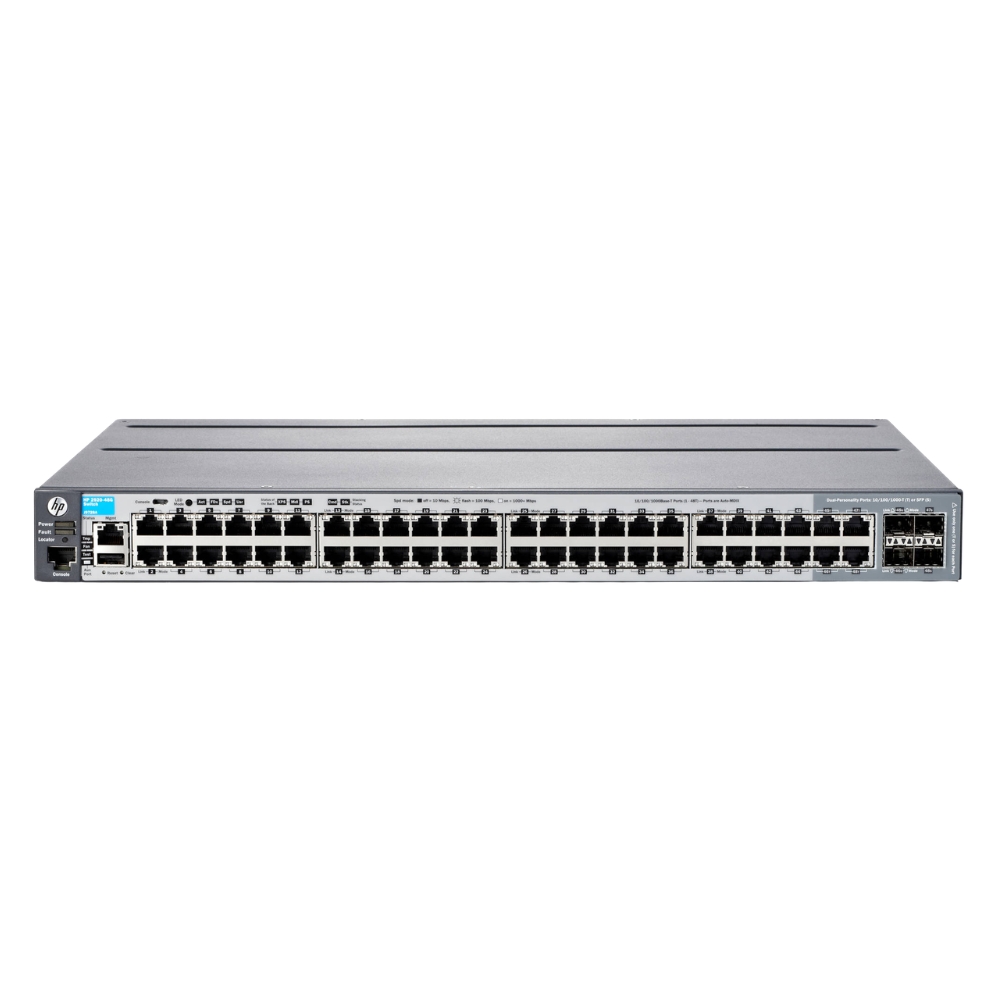

The J9729AR HPE 2920-48G-PoE+ switch offers robust Layer 3 networking with a comprehensive set of ports. It bridges copper and fiber connections while delivering power to connected devices via PoE+. Positioned for enterprise-grade environments, this switch fits where high port density and routing capabilities are needed to manage traffic effectively. |
| General Information | |
|---|---|
| Brand | HPE |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 203.12 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,CLI (Console/SSH),SNMPv1/v2c/v3,RMON |
| Security Features | 802.1X,RADIUS,TACACS+,Access Control Lists (ACLs),SSH,SSL,MAC Authentication |
| Management Type | Managed |
| Remote Management Protocol | SNMP,SSH,HTTP,HTTPS |
| Power & Cooling | |
|---|---|
| Fans | Yes |
| Power Supply | Internal AC |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.3x |
| Product Description |
|---|
The J9729AR is a Layer 3 network switch that combines high port density with advanced routing features. Often found in medium to large network infrastructures, this switch supports a mix of copper and fiber connections to accommodate diverse network demands. Built for IT professionals managing complex networks, it enables efficient power delivery through PoE+ and supports a variety of network configurations with its flexible port options. Key Features
This switch plays a significant role in managing network traffic efficiently across various connected devices. Its combination of port flexibility and routing functionality makes it a solid, dependable choice for stable network operation. Overall, the J9729AR reliably supports network growth and complexity, allowing administrators to maintain performance and connectivity with confidence. |
| Use Cases |
|---|
The J9729AR switch is commonly deployed in enterprise networks that require a high number of PoE+ ports and flexible fiber connectivity. Its blend of Layer 3 features and port options caters well to environments with diverse networking demands. How It's Used:
This switch helps maintain efficient data flow and device connectivity across complex network topologies. Its capability to deliver both power and advanced routing enhances operational flexibility and scalability within enterprise environments. |
