EX2300-48P

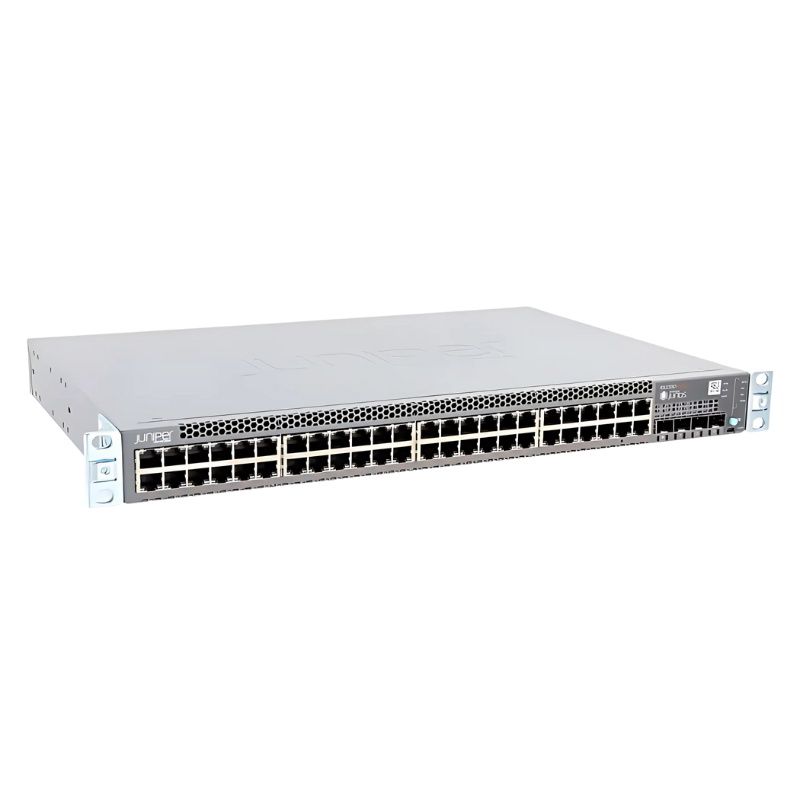

The Juniper Networks EX2300-48P Switch is a powerful networking solution designed for modern enterprise environments. With 48 x 10/100/1000BASE-T Gigabit Ethernet PoE+ ports, this switch provides flexible and reliable connectivity for a variety of devices, including IP cameras, access points, and VoIP phones. Additionally, it features 4 x 1/10GbE SFP/SFP+ uplink ports, enabling high-speed connections to core switches or servers.

Boasting a switching capacity of 176 Gbps and a wire-speed forwarding rate of 130 Mpps, the EX2300-48P ensures efficient data handling, making it suitable for bandwidth-intensive applications. The integrated AC power supply supports a PoE+ power budget of 740W, allowing the switch to power connected devices without requiring additional power sources.

Designed for security and efficiency, the EX2300-48P supports various security features, including MAC limiting, DHCP snooping, Dynamic ARP Inspection (DAI), IP source guard, and 802.1X authentication. With the ability to handle up to 4,093 VLANs and IPv4 routing support for 4,096 unicast routes and 2,048 multicast routes, it is optimized for robust network segmentation and management.

The switch comes equipped with 2 GB of DRAM and 2 GB of flash memory, providing ample resources for operations and configurations. Remote management is facilitated through multiple protocols, including CLI, SNMP v1/v2c/v3, RMON, and HTTP/HTTPS, ensuring easy administration and monitoring.

Key Features:

• Switch Ports: 48 x 10/100/1000BASE-T Gigabit Ethernet PoE+ ports; 4 x 1/10GbE SFP/SFP+ uplink ports.
• Switching Capacity: 176 Gbps for efficient data handling.
• Forwarding Rate: 130 Mpps (wire speed) for high-performance networking.
• Default Power Supply: Integrated AC power supply for simplified setup.
• IPv4 Routing Entries: Supports 4,096 unicast routes and 2,048 multicast routes.
• IPv6 Routing Entries: Supports 2,048 unicast routes and 1,024 multicast routes.
• Jumbo Frame Support: Capable of handling frames up to 9,216 bytes.
• Security Features: Includes MAC limiting, DHCP snooping, DAI, IP source guard, 802.1X authentication, and ACLs.
• DRAM and Flash Memory: 2 GB DRAM and 2 GB flash memory for efficient operations.
• Switch Compliant Standards: Supports a wide range of IEEE standards for compatibility.
• Routing Protocols: Static routing, RIP v1/v2, OSPF v1/v2, PIM-SM, PIM-DM, PIM-SSM, IGMP v1/v2/v3.
• VLAN Support: Up to 4,093 VLANs for robust network segmentation.
• Power Consumption: Maximum system power consumption of 100W (without PoE).
• Fan Type: Fixed internal fans with side-to-side airflow for effective cooling.
• Connector Type: RJ-45 for Ethernet ports; SFP/SFP+ for uplink ports.
• Remote Management Protocols: CLI, SNMP v1/v2c/v3, RMON, HTTP/HTTPS, SSH, Telnet.

The Juniper Networks EX2300-48P Switch is an excellent choice for organizations seeking a high-performance, secure, and versatile networking solution to support their growing infrastructure needs.
