✔ 12-port Gigabit Ethernet switch with Layer 3 capabilities
✔ 2x 10Gbps SFP uplink ports for enhanced data transmission
✔ Compact, managed switch designed for high-performance networks
| Product Overview |
|---|

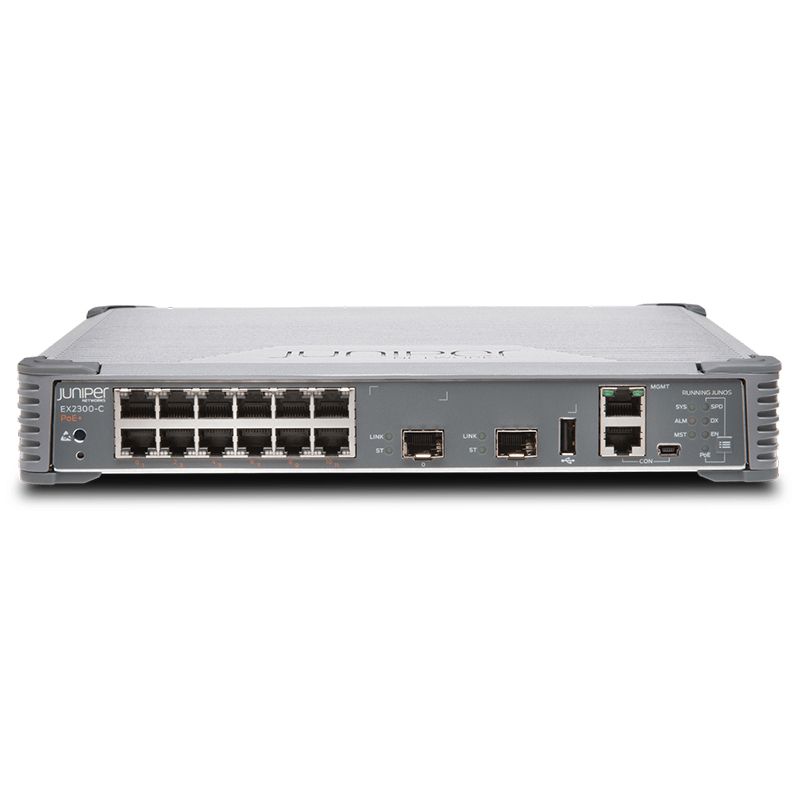

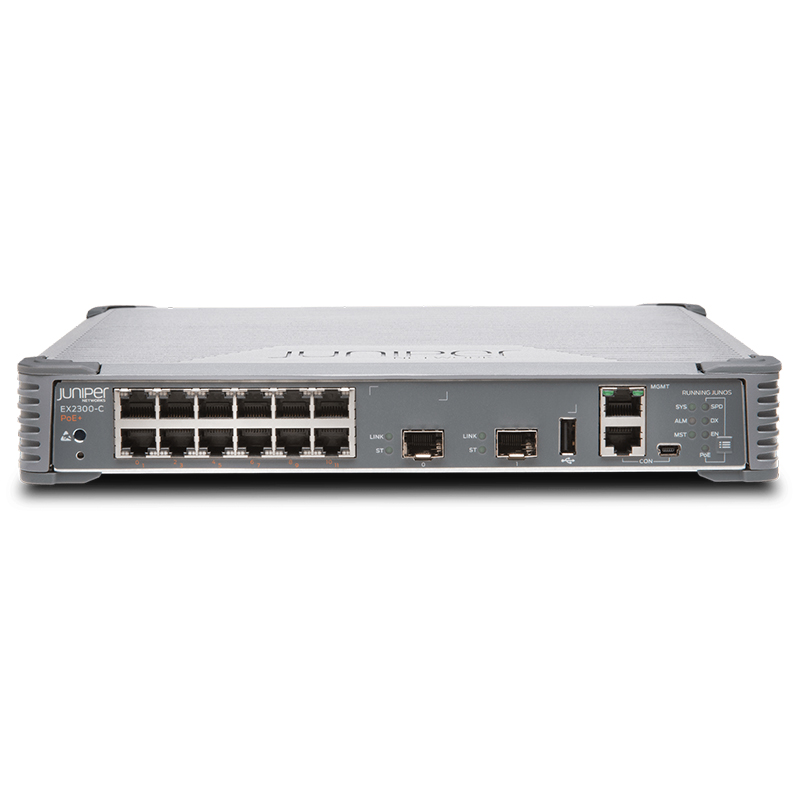

The Juniper EX2300-C-12T-TAA is a 12-port, Layer 3 Gigabit Ethernet switch with two 10Gbps SFP uplink ports, providing flexible and high-speed network connectivity. Compact yet robust, it supports advanced network management features and is optimized for energy efficiency, making it an excellent choice for enterprise settings that need reliable, scalable, and cost-effective solutions. With TAA compliance, it’s also suitable for government and other regulated industries. |
| General Information | |
|---|---|
| Brand | Juniper Networks |
| Part Number | EX2300-C-12T-TAA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Switch Ports | 12 x 10/100/1000Base-T ports |
| Number of Ports | 12-Ports |
| Switching Capacity | 40 Gbps |
| Switch Forwarding Rate | 28.5 Mpps |
| DRAM | 1GB |
| Flash Memory | 2GB |
| Max VLANs Supported | Supports 4,096 VLANs |
| Connector Type | 12 x RJ-45 (10/100/1000Base-T), 2 x SFP (10 Gbps) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16K Entries |
| Management and Configuration | |
|---|---|
| Remote Management Protocol | HTTP/HTTPS, SNMP v1/v2c/v3, CLI via console or SSH, RMON |
| Routing Protocol | Static routing, RIP, OSPF, BGP for Layer 3 capabilities |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliant Standards | IEEE 802.3, 802.3u, 802.3ab, 802.1Q, 802.1p, 802.1X |
| Product Description |
|---|
The Juniper EX2300-C-12T-TAA is a powerful yet compact switch designed for enterprises seeking efficient, high-performance networking. This 12-port Gigabit Ethernet switch supports Layer 3 capabilities, making it suitable for managing complex network traffic across various applications. Each of its 10/100/1000Base-T Ethernet ports provides reliable connectivity, while the two 10Gbps SFP uplink ports enhance data throughput, allowing for faster and more seamless data transmission. Engineered for easy integration into diverse network environments, the Juniper EX2300 offers a managed interface that simplifies configuration and network optimization. It’s built to handle enterprise-grade workloads while remaining energy-efficient and cost-effective. Ideal for both small and medium businesses and large enterprises, this switch provides the scalability and reliability needed for modern networking needs. Key Features:
The EX2300-C-12T-TAA provides the perfect balance of power and flexibility, making it a reliable choice for businesses looking to scale and optimize their network infrastructure. |
| Use Cases |
|---|
The Juniper EX2300-C-12T-TAA switch is ideal for compact enterprise environments requiring advanced Layer 3 routing capabilities combined with high-speed uplinks. It serves well in settings where space constraints exist but network performance and scalability remain priorities, such as branch offices and small data closets. How It's Used:
By combining compact form factor with robust Layer 3 features and scalable uplinks, this switch supports operational efficiency and network segmentation in constrained spaces. Its design enables IT teams to maintain consistent performance and adaptability as network demands evolve. |
