5CT6D

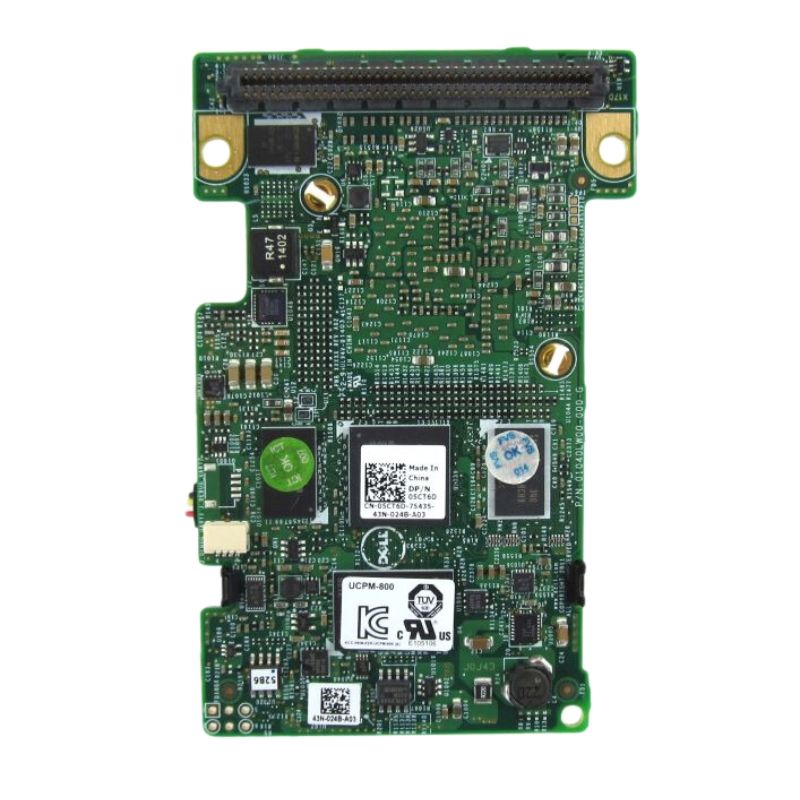

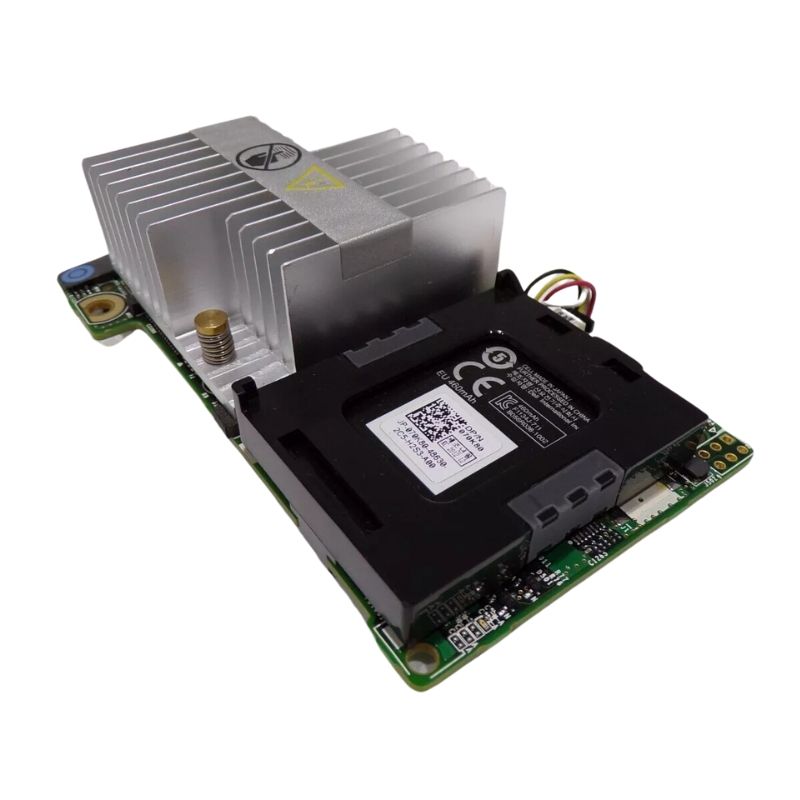

The Dell PERC H710P (5CT6D) is a high-performance RAID controller card designed to provide robust data protection and performance for enterprise storage solutions. Featuring 8 internal SAS ports, this controller supports both SAS and SATA hard drives and SSDs, offering flexibility for various storage configurations.

With a PCI Express 2.0 x8 host bus interface, the H710P ensures efficient data transfer, achieving rates of up to 6 Gb/s per port. It is equipped with 512MB NV cache memory, enhancing data processing speed and providing improved performance for demanding applications. The controller also supports multiple RAID levels, including RAID 0, 1, 5, 6, 10, 50, and 60, allowing for customized storage configurations to meet specific business needs.

The interface includes 2 x internal mini-SAS SFF8088 connectors, providing seamless connectivity to storage devices. Whether you're building a new server or upgrading an existing system, the Dell PERC H710P RAID controller offers the reliability and performance needed for critical data applications.

Key Features:

• Host Bus Interface: PCI Express 2.0 x8 for efficient data transfer.
• RAID Supported Devices: Compatible with SAS and SATA hard drives and SSDs.
• Channel Quantity: 8 internal ports for versatile connectivity options.
• Interface: 2 x internal mini-SAS SFF8088 connectors for easy integration.
• Buffer Size: 512MB NV cache memory for enhanced performance.
• RAID Levels Supported: 0, 1, 5, 6, 10, 50, and 60 for flexible storage configurations.
• Data Transfer Rate: Up to 6 Gb/s per port for high-speed data access.

The Dell PERC H710P RAID Controller Card is an excellent choice for organizations looking to enhance their data storage capabilities with a reliable and high-performance solution.
