| Product Overview |
|---|

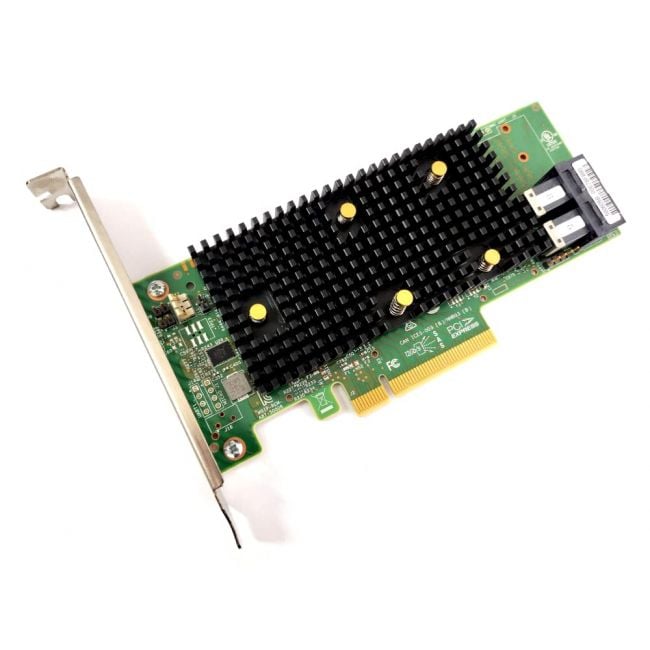

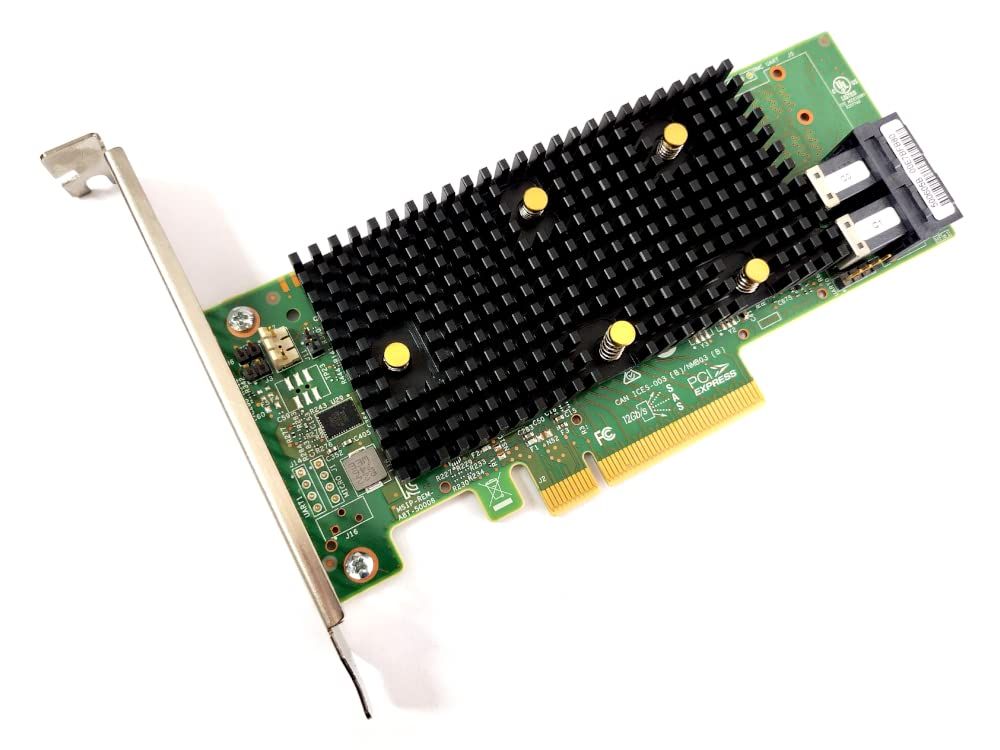

The Dell 9440-8I RAID controller manages mixed storage environments with a tri-mode interface that supports SAS, SATA, and NVMe devices. It fits into PCI Express slots and is suited for servers requiring versatile and reliable drive control without compromising speed or compatibility. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | YW3J6 |
| Technical Specification | |
|---|---|
| Chipset | Broadcom MegaRAID (9440-series Tri-Mode controller) |
| Host Interface | PCI Express 3.0 x8 |
| Data Rate | 12 Gbps per SAS lane (SAS-3 / 12Gb/s) |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Ports | 8 Ports |
| Compatibility | Dell PowerEdge servers that support PERC 9440 series (e.g., R640, R740, R740xd, R540) — requires compatible server firmware/BIOS and drive backplane supporting Tri-Mode |
| Physical Characteristics | |
|---|---|
| Form Factor | Low profile MD2 form factor |
| Weight | 3.00 |
| Condition | Refurbished |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Product Description |
|---|
The Dell 9440-8I RAID controller is designed to manage a mix of storage devices, including SAS, SATA, and NVMe drives. It provides a flexible storage solution that supports high data transfer rates through its 12Gbps SAS interface. Often found in enterprise servers and workstations, this controller helps IT professionals and system administrators maintain reliable and efficient storage systems. It's built for environments where diverse drive types and performance needs must be balanced. Key Features
This controller is commonly deployed in data centers and enterprise IT setups where storage performance and flexibility are critical. It helps streamline storage management and ensures that various drives work seamlessly together. |
