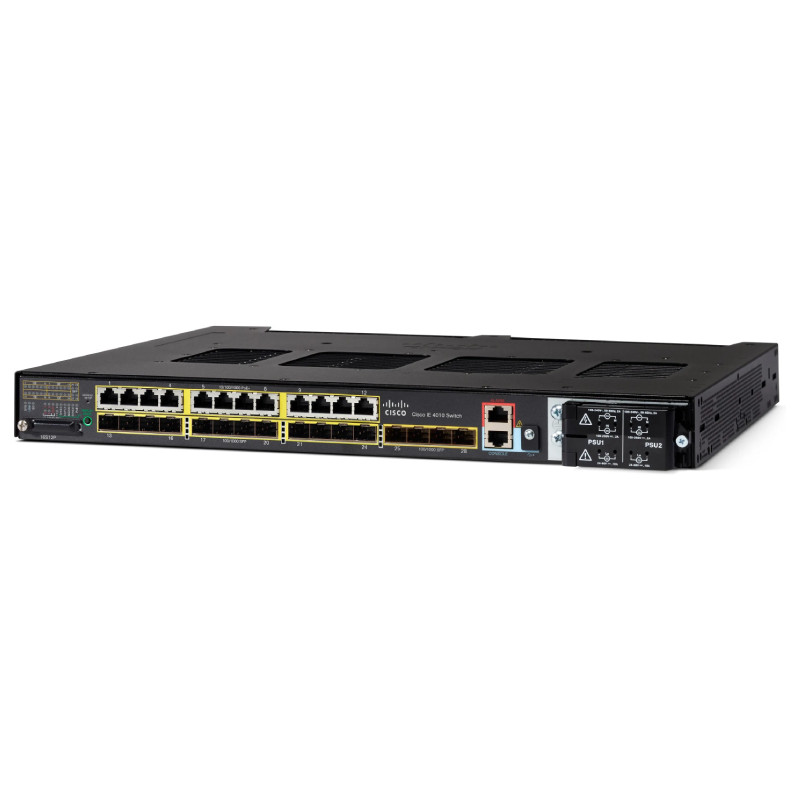

Name: IE-4010-16S12P Cisco Industrial Ethernet 4010 Series 12 x Ports 1000Base-T PoE+ RJ-45 + 12 x Ports 1000Base-X SFP + 4 x Ports SFP uplink Layer 2 Managed Gigabit Ethernet Network Switch
Brand: Cisco
SKU: IE-4010-16S12P
Price: 2699.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The IE‑4010‑16S12P Cisco Industrial Ethernet 4010 Series Switch offers 16 SFP fiber and 12 PoE/PoE+ copper ports in a compact, fanless 1U form factor, delivering 56 Gbps switching capacity and advanced Layer 2/3 features for demanding industrial deployments requiring both flexibility and durability.

General Information
Brand	Cisco
Part Number	IE-4010-16S12P
Condition	Refurbished

Technical Information
Switch Type	Managed Switch, Industrial Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack, Wall Mount, DIN Rail
Number of Ports	28-Ports
Port Type	RJ-45, SFP
Port Speed	10/100/1000 Mbps
UpLink Ports	4 × SFP (1 Gb)
POE Support	PoE+
Switching Capacity	56 Gbps
Switch Forwarding Rate	41.67 Mpps with 64-byte packets
DRAM	1 GB
Flash Memory	128 MB onboard, 1 GB removable SD card
Max VLANs Supported	1,000 VLAN'S
Stackable	No
Layer Support	Layer 2, Layer 3
Connector Type	RJ‑45 PoE, SFP fiber, console RJ‑45, mini‑USB

Performance
Jumbo Frame Support	Up To 9000 Bytes
MAC Address Table Size	16,000 entries

Management and Configuration
Routing Protocols	Static
Remote Protocols	Cisco IOS CLI, web GUI, SNMP v1/2/3, RMON, Telnet/SSH, Cisco Catalyst Center
Security Features	802.1X, IGMP snooping, DHCP snooping, ACLs, Dynamic ARP, RADIUS/TACACS+, MACsec not supported
Security	IEEE 802.1X, RADIUS, TACACS+, MACsec, Access Control Lists (ACLs), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
Remote Management Protocol	CLI, SNMP, HTTP/HTTPS, Telnet/SSH, RADIUS, TACACS+
Routing Protocol	Static Routing (default), OSPF, EIGRP, BGP, IS-IS, RIP (with IP Services license)

Power & Cooling
Fans	Fanless (silent)
Power	Supports PoE/PoE+ with power budget up to 385W (with appropriate power supplies)

Physical Characteristics
Dimensions	1.75 in x 17.5 in x 14.0 Inches
Weight	12.90

Miscellaneous
Compliant Standards	IEEE 802.1D, 802.1Q, 802.1X, 802.3, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3ad, 802.3az, 802.3ae, 802.3an

Product Description
The IE‑4010‑16S12P is a rugged, high-performance industrial Ethernet switch from Cisco, designed for harsh environments where secure and reliable connectivity is critical. With 28 total ports, it supports fiber and copper connections and delivers advanced switching and management capabilities. Key Features 16 SFP fiber ports and 12 RJ‑45 PoE/PoE+ ports with 10/100/1000 Mbps speed 56 Gbps non-blocking switching capacity and 41.67 Mpps forwarding rate Supports Layer 2 and basic Layer 3 routing with static IPv4, OSPF, and RIP Fanless, convection-cooled design with multiple mounting options Field-replaceable 150 W/250 W AC/DC power supplies with redundancy Ideal for manufacturing plants, transportation systems, and utility networks, this switch enables seamless integration into industrial infrastructures, offering robust remote management, PoE delivery, and reliable performance in space-constrained environments.

Use Cases
The Cisco IE-4010-16S12P is designed for industrial and harsh environments where reliable, high-capacity connectivity is essential. Typical users include manufacturing facilities, transportation systems, and energy sector operations that require robust network infrastructure capable of supporting both fiber and PoE devices in rugged conditions. How It's Used: Integrating PoE-powered devices such as IP cameras and wireless access points in smart factory automation setups. Providing secure, redundant Ethernet connectivity for critical control systems in oil and gas pipelines and refineries. Supporting high-bandwidth data aggregation and uplink for transportation networks including rail and traffic management systems. Deploying in remote substations and renewable energy installations to enable monitoring and control over wide-area networks. Facilitating edge computing workloads by delivering reliable Layer 2/3 switching in compact industrial enclosures. By enabling seamless integration of fiber and PoE devices with advanced Layer 2/3 capabilities, the IE-4010-16S12P enhances operational reliability and scalability in mission-critical industrial applications. Its versatile mounting options and redundant power support simplify deployment while maintaining network performance under demanding conditions.
