WS-C2960X-48LPD-L

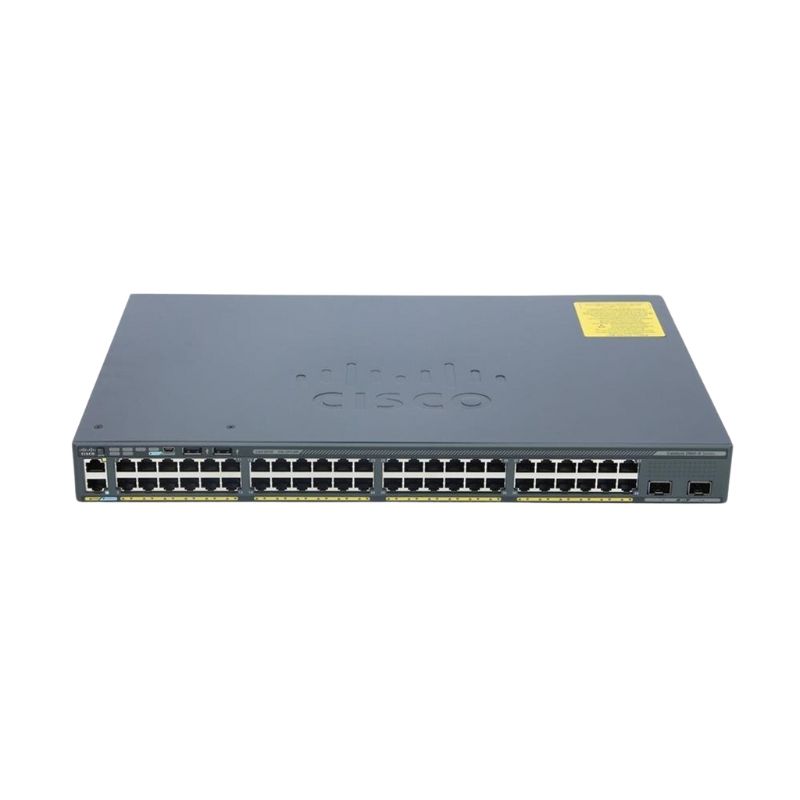

The Cisco Catalyst 2960-X WS-C2960X-48LPD-L is a high-performance Layer 2 managed network switch designed to provide efficient and scalable network connectivity for modern enterprise environments. Equipped with 48 x 10/100/1000Base-T PoE+ ports and 2 x SFP uplink ports, this switch offers both wired and fiber connectivity options, making it ideal for a wide range of applications from office networks to larger enterprise infrastructures.

With a total switching capacity of 216 Gbps and a forwarding rate of 107.1 Mpps, the 2960-X ensures fast data transmission and efficient handling of large amounts of network traffic. The switch supports a jumbo frame size of 9216 bytes, enhancing data transfer efficiency for high-bandwidth applications.

Designed for high availability, the switch comes with a default power supply offering a 370W PoE power budget, enabling it to power PoE+ devices such as IP phones, wireless access points, and security cameras. Security features such as port security, DHCP snooping, and ACLs ensure that your network is protected from unauthorized access.

The Catalyst 2960-X switch includes 512MB DRAM, 128MB flash memory, and supports up to 16,000 MAC addresses, ensuring reliable performance for large-scale networks. With a compliant standard set including IEEE 802.3af, IEEE 802.3at, and IEEE 802.1x, it is suitable for a wide range of network configurations. The switch supports CLI, SNMP, HTTP/HTTPS, and SSH remote management protocols, providing flexible and secure management options.

Key Features:

• Switch Device Type: Managed Layer 2 Gigabit Ethernet switch for high-performance networking.
• Ports: 48 x 10/100/1000Base-T PoE+ ports, 2 x SFP uplink ports for both copper and fiber connections.
• Switching Capacity: 216 Gbps for fast data transmission.
• Forwarding Rate: 107.1 Mpps, ensuring efficient packet processing.
• PoE Power Budget: 370W for powering PoE+ devices such as IP phones and cameras.
• Jumbo Frame Support: Up to 9216 bytes, suitable for high-bandwidth applications.
• Security: Includes port security, DHCP snooping, and ACLs for protecting your network.
• DRAM: 512MB for reliable network performance.
• Flash Memory: 128MB for storage of configuration data.
• VLAN Support: Up to 4,094 VLANs for network segmentation.
• Routing Protocol: Layer 2 switch with no Layer 3 routing capabilities.
• MAC Address Table: Supports up to 16,000 MAC addresses for large-scale network environments.
• Remote Management Protocols: CLI, SNMP, HTTP/HTTPS, and SSH for flexible management.

The Cisco Catalyst 2960-X WS-C2960X-48LPD-L is an excellent choice for businesses needing reliable, high-performance network connectivity with robust security, management, and PoE+ capabilities.
