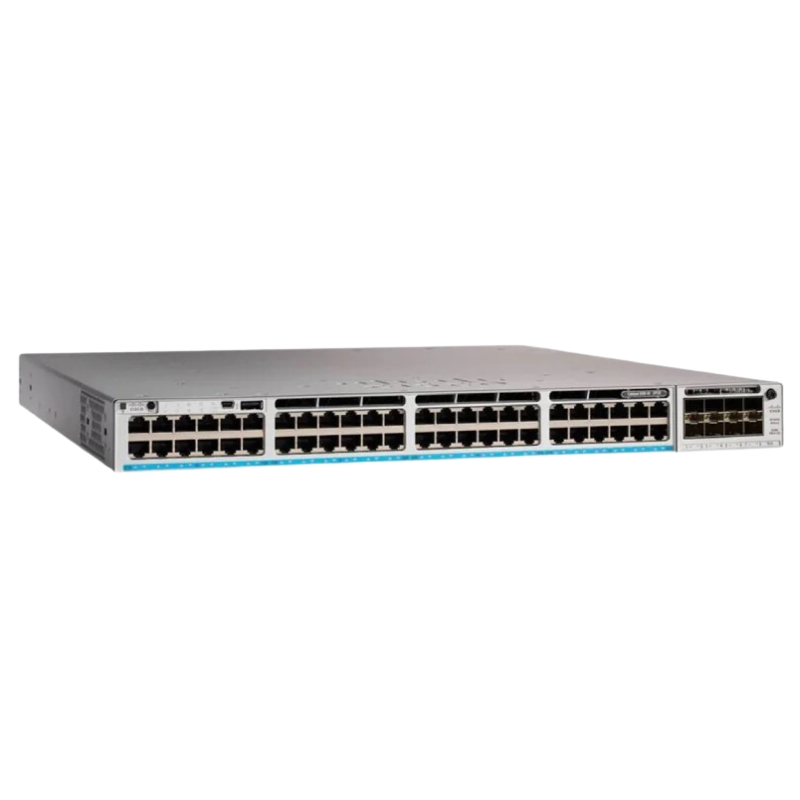

Name: C9300-48UXM-A Cisco Catalyst 9300L Series C9300-48UXM 36 x RJ-45 Ports UPoE 2.5GBase-T + 12 x RJ-45 10GBase-T Ports Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
Brand: Cisco
SKU: C9300-48UXM-A
Price: 1834.00 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Overview
The C9300‑48UXM‑A Cisco Catalyst 9300X switch delivers 48 multigigabit UPOE copper ports, dual uplink expansion, 580 Gbps switching capacity and advanced Layer 2/3 features—perfect for high‑density access deployments with future‑proof power and connectivity needs.

General Information
Brand	Cisco
Part Number	C9300-48UXM-A
Series	Catalyst 9300 Series
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48 ports: 36 x 100 Mbps/1G/2.5G + 12 x Multigigabit (100M/1G/2.5G/5G/10G)
Number of Ports	48-Ports
Port Type	RJ-45
Port Speed	Up to 10 Gbps
Switching Capacity	580 Gbps
Switch Forwarding Rate	431.54 Mpps
DRAM	8GB
Flash Memory	16GB
Max VLANs Supported	Supports up to 4,096 VLAN IDs
Stackable	Yes
Layer Support	Layer 2, Layer 3
Connector Type	RJ‑45 UPOE ports, console RJ‑45, USB

Performance
Jumbo Frame Support	Up To 9198 Bytes
MAC Address Table Size	32,000 Entries

Management and Configuration
Routing Protocols	RIP, OSPF, EIGRP, BGP, IS-IS, VRRP, IGMP
Remote Protocols	CLI, SNMPv2/3, RMON, NetConf, RESTConf, Cisco DNA Center, Cisco Meraki option
Management Interfaces	Console RJ‑45, USB, Ethernet in-band/out-of-band
Security Features	MACsec, 802.1X, ACLs, Secure Boot, Cisco Trust Anchor, Flexible NetFlow, etc.

Power & Cooling
Fans	3 Fans
Power Supply	1100W AC

Physical Characteristics
Dimensions	1.73 x 17.5 x 19.1
Weight	20.50

Miscellaneous
Eco Friendly	Yes
Compliant Standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Product Description
The C9300‑48UXM‑A is a fixed, stackable Layer 2/3 access switch from Cisco’s Catalyst 9300X UPOE family, built to deliver scalable multigigabit connectivity and high-performance power delivery. Key Features 48 multigigabit UPOE ports supporting 100 Mb to 10 Gb speeds Dual modular uplink slots for up to 100 GbE options Up to 490 W PoE budget, 60 W per port Support for advanced Layer 2/3 protocols and MACsec security StackWise‑480 stackable up to 8 units for scaling Ideal for enterprise campus or branch deployments requiring high‑speed wired access with power for devices like APs and cameras. It performs best in environments demanding Layer 3 routing, robust security, and modular uplinks.
