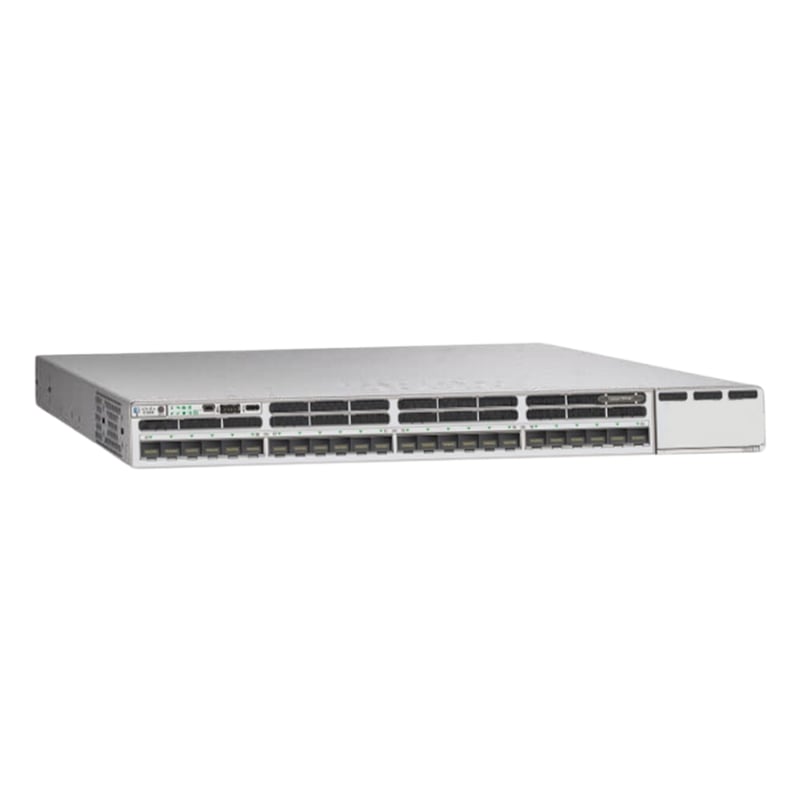

C9300X-24Y-A Cisco Catalyst 9300 Series 9300X-24Y 24 x SFP28 Ports 25GBase-X Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
SKU:
C9300X-24Y-A
Weight: 17.00 lbs
Condition: Refurbished
- 24 x SFP28 ports supporting 1/10/25 Gbps high-speed connectivity
- Fixed, stackable Layer 2/3 switch in 1U rack-mountable form
- Switching capacity up to 2,000 Gbps standalone or 3,000 Gbps stacked
- Advanced Layer 3 routing and enterprise-grade security features
In stock
$8,460.00
| Product Overview |
|---|
The C9300X‑24Y‑A Cisco Catalyst 9300X 24 x Ports 1/10/25GBASE‑X SFP28 Layer 3 Rack‑Mountable Managed Network Switch delivers robust fiber connectivity, enterprise-grade security, and high-speed switching capacity, making it a powerful solution for scalable and secure enterprise networks. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9300X-24Y-A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports |
24 x 25G SFP28 Ports 8 x 100G QSFP28 uplink Ports |
| Number of Ports | 24-Ports |
| Port Type | 25G SFP28, RJ-45 |
| Port Speed | 1/10/25 Gbps |
| POE Support | No |
| Switching Capacity | 2,000 Gbps |
| Switch Forwarding Rate | 2,232 Mpps |
| DRAM | 16 GB |
| Flash Memory | 16 GB |
| Max VLANs Supported | Supports up to 4,094 VLANs |
| Stackable | Yes |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | SFP28 ports; RJ‑45 console; USB; stack and power connector interfaces |
| Performance | |
|---|---|
| Latency | <2 μs (typical) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | RIP, OSPF, EIGRP, BGP, IS-IS, VRRP |
| Remote Protocols | Cisco DNA Center, Catalyst Center, CLI, RESTCONF/NETCONF, SNMP, WebUI |
| Security Features | MACsec AES‑256, Secure Boot, Trust Anchor, IPsec line-rate 100 Gbps, 802.1X, ACLs |
| Power & Cooling | |
|---|---|
| Fans | Field-replaceable, hot-swappable fans |
| Power | 800W (fully redundant) |
| Power Supply | Dual redundant, hot-swappable power supplies |
| Physical Characteristics | |
|---|---|
| Dimensions | 4.4 × 44.5 × 52.6 cm |
| Weight | 17.00 |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Miscellaneous | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1X |
| Product Description |
|---|
The Cisco C9300X‑24Y‑A is a high-performance enterprise switch designed for scalable, secure, and efficient networking in demanding environments. It belongs to the Catalyst 9300X series and delivers next-generation stackable switching capabilities with multi-gigabit fiber support. Key Features
Ideal for large campus networks, data center aggregation, and high-density access deployments, this model ensures performance, security, and flexibility with modular uplink options and full redundancy support. |
