PNY XLR8 CS3150-XHS SSD Review | An RBG Classic

PNY XLR8 CS3150-XHS Performance-driven PCIe Gen5 NVMe SSD. This method should be attractive to anyone seeking ultra-fast storage. Aimed at gamers, content creators, and PC enthusiasts. With the PCIe 5.0 x4 interface, this SSD can really handle high-speed storage. The sequential read speeds can top 12,000 MB/s, and the write speeds are equally high at up to 11,000 MB/s.

That also sets it apart wrt many of the Gen5 SSDs. It gets a full-size heatsink, but no Thus, it's actually meant to limit the heat produced from high-speed PCIe 5.0 hardware. Besides the plain one, we got PNY's EPIC-X RGB lighting with the XHS version. In this review, we will look at its design, performance and cooling, power consumption, and more. Finally, we will discover its strengths and weaknesses.

Now, let’s take a look at its features and specifications.

·         PCIe 5.0 x4 NVMe 2.0 interface

·         Up to 12,000 MB/s sequential read speed

·         Up to 11,000 MB/s sequential write speed

·         Phison E26 controller

·         232-layer Micron TLC NAND

·         LPDDR4 DRAM cache

·         Available in 1TB and 2TB capacities

·         M.2 2280 form factor

·         Dual-fan active heatsink

·         EPIC-X RGB lighting on the XHS version

·         TCG Opal 2.0 hardware encryption support

·         DirectStorage-optimized firmware

·         700TBW endurance for 1TB and 1,400TBW for 2TB

·         5-year limited warranty

·         Designed mainly for desktop PCs

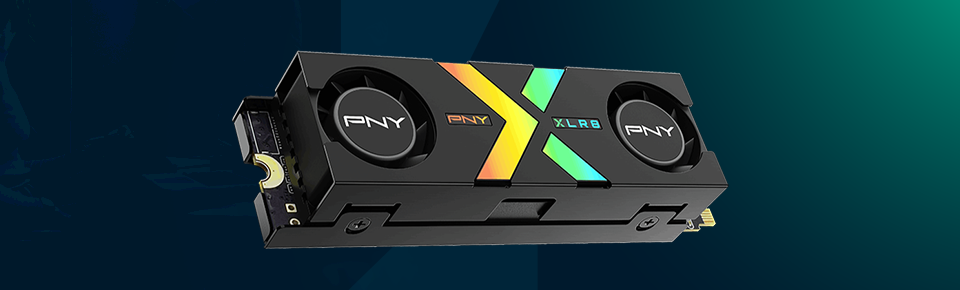

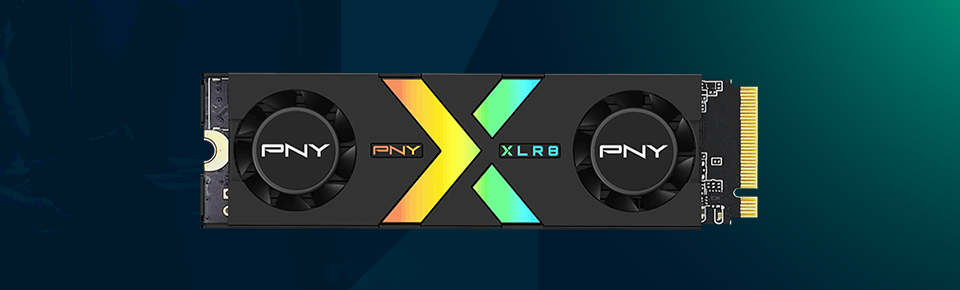

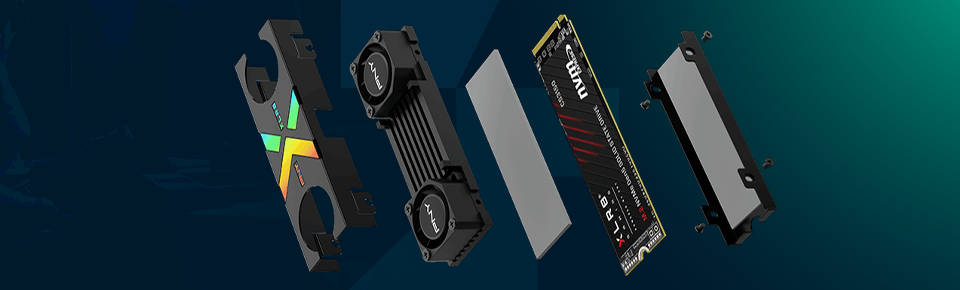

The PNY XLR8 CS3150-XHS is more than just a run-of-the-mill SSD in a colorful wrapper. However, it comes fitted with an oversized cooling mechanism. On the front side is a big heatsink assembly that contains the M.2 2280 drive. The total heatsink and fins measure about 76 × 23.5 × 17.5 mm. It's big enough that the M.2 slot alone should have adequate breathing room.

Two fans are missing from the heatsink. To add to this, some of these fans even actively blow air over the SSD. As a result, this drive can handle heavy loads while still maintaining excellence. It also comes with RGB lighting on the XHS. This makes gaming PCs a bit prettier.

However, there is one important note. This is mainly a desktop SSD. For some laptops, it simply is not possible due to the massive cooler. So it may also obstruct the clearance of certain mobo parts. Before installing it, always check the motherboard for available space.

Maybe the design accents were overdone in favor of performance, and thus CS3150-XHS really shone. The PCIe 5.0 x4 interface gives it considerably more bandwidth than older PCIe 4.0 drives. As for PNY's figures, they're in the neighborhood of 12,000 MB/s sequential reads and 11,000 MB/s sequential writes for the drive.

In real-world terms, that means very fast file transfers. And particularly so when working with larger video projects. It also enables much faster completion of game installs. In the same way, all the applications and windows can also be opened faster.

At the same time, it outperformed everything sustained with CS3150 workloads. Independent tests found it to be a well-optimized performer across the board, while 3DMark testing showed it as a particularly optimized option.

Now, maximum benchmark numbers are not expected to produce awesome gains in all tasks. The delta over a good PCIe 4.0 SSD is likely a lot smaller for typical web browsing, office work, and more casual gaming, which means this is really a drive that makes sense mostly for those who are routinely transferring big files around or running any performance-intensive workloads.

CS3150-XHS — Dual Fan Heatsink. This is particularly important when you consider how hot Gen5 SSDs can run. Therefore, proper cooling is important. The great news is that you can always expect a decent cooling system with the CS3150. During write saturation testing, the drive was well under 50°C. This is an excellent showing for high-end PCIe 5.0 SSDs. The fans are also temperature-controlled. That means that they do not have to run full speed 24/7.

The fans do draw power and can make a bit of noise, though. In this case, the fan control is a silver lining. This enables users to strike a good balance between cooling and noise according to their workload.

CS3150-XHS is not designed primarily for laptop efficiency. And what a power draw it is; with PCIe 5.0 performance outpacing what many PCIe 4.0 solutions need to extract from the motherboard, so this is no joke at all. The CS3150 does not enjoy particularly high power efficiency, either in independent tests that bring its ranking compared to many PCIe 4.0 SSDs down a notch.

This holds less true for a desktop game PC. However, when users are attempting to create a system with extremely low wattage, they might still prefer a lower-powered SSD.

The CS3150-XHS is DRAM-less and based on TLC NAND. Rated service life is 700TBW for the 1TB variant and 1,400TBW for the 2TB model. It also supports TCG Opal 2.0 hardware encryption. PNY is also offering a limited warranty of up to 5 years, giving buyers a bit of serious long-term peace of mind for an endurance-leading SATA SSD challenger.

Here is what it offers:

Pros

·         Extremely fast PCIe 5.0 performance

·         Up to 12,000 MB/s read and 11,000 MB/s write speeds

·         Excellent dual-fan cooling system

·         Strong sustained performance

·         TLC NAND with DRAM

·         EPIC-X RGB lighting

·         TCG Opal 2.0 hardware encryption

·         5-year limited warranty

Cons

·         Large heatsink can create installation problems

·         Mainly designed for desktop PCs

·         Higher power consumption than many PCIe 4.0 SSDs

·         Active fans can produce some noise

·         Gen5 performance is expensive for everyday users

PNY XLR8 CS3150-XHS Best PCIe 5.0 SSD: A speedy, cool-running option with a great gaming aesthetic. This is a big win for Gamers, Content Creators, and anybody else dealing with large file sizes.

Even more crucially, its twin-fan heatsink maintains temps in check. Sequential performance is very good on this drive, too. But it's not right for everyone. So, unless you're doing tons of video editing or other high-performance tasks (and even then to a point), a nice PCIe 4.0 SSD is likely going to give you better price/performance for general storage.

Overall, the CS3150-XHS is an excellent upper-end SSD. It is an all-in-one offer where they threw together speed, cooling capability, durability, and RGB styling. It's a bit of a heavyweight and certainly a consideration if you happen to be building an outright desktop gaming or workstation build.
