Crucial T700 SSD Review | PCIe 5.0 NVMe Scoreboard Leader

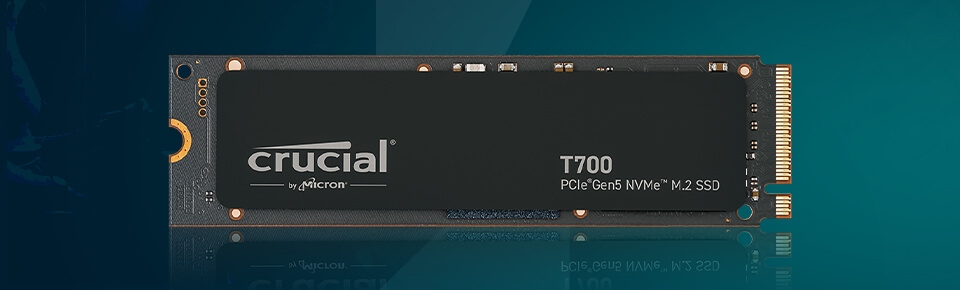

The Crucial T700 is a top-tier solid-state drive. It is designed for high-performance computers. This includes systems for gamers, creators, and enthusiasts. The T700 uses the latest PCIe 5.0 x4 technology. It features a Phison E26 controller. It also has Micron's 232-layer TLC NAND flash.

This drive comes in three sizes: 1TB, 2TB, and 4TB. You can buy it with or without a heatsink. The heatsink helps with cooling. The drive is built for speed. It has fast read/write rates. It also has high IOPS. This means it can handle a lot of data quickly. It uses the modern NVMe 2.0 feature set.

This is what it offers:

·         It has an interface / Form Factor of PCIe 5.0 x4, NVMe 2.0, M.2 2280 form factor

·         Available with Phison PS5026-E26 8-channel controller

·         It offers Micron 232-Layer 3D TLC NAND

·         LPDDR4 included, and the size depends on the capacity

·         Capacities offered are 1TB, 2TB, 4TB, each with a bare or heatsink version

·         It has a ~11,700 MB/s for 1TB, ~12,400 MB/s for 2TB/4TB Sequential Read Speeds

·         Offering ~9,500 MB/s (1TB), ~11,800 MB/s (2TB / 4TB) Sequential Write Speeds:

·         Talking about the Random Read / Write IOPS, which is up to ~1,500,000 IOPS on read & write for higher capacities; slightly lower for the 1TB model

·         ~600 TBW (1TB), ~1,200 TBW (2TB), ~2,400 TBW (4TB) Endurance

·         Available with a 5-year warranty

·         Its cooling variants are Bare and with heatsink; note that cooling is important for sustaining top speeds and avoiding thermal throttling

When tested, the Crucial T700 delivers top-tier speed. It is one of the fastest consumer SSDs available. The 2TB and 4TB versions are the fastest. They can reach read speeds up to 12,400 MB/s. They have written speeds up to 11,800 MB/s. The 1TB model is also fast. Its read speed is about 11,700 MB/s. Its write speed is about 9,500 MB/s.

Random I/O performance is also excellent. This matters for loading apps and the operating system. The T700 has read/write IOPS up to 1,500K. This is for the larger versions. These speeds are similar to those of professional enterprise drives.

There is one issue. Performance drops under heavy, continuous use. This happens after the write cache is filled. For example, the 4TB model's write speed can fall to around 3.7 GB/s. This is still fast. But it is much lower than the peak speed. For large tasks like video editing, expect this drop.

The T700's design has one key issue. It is hot. The drive gets very hot. This is due to its high speeds. The 2TB and 4TB models generate the most heat.

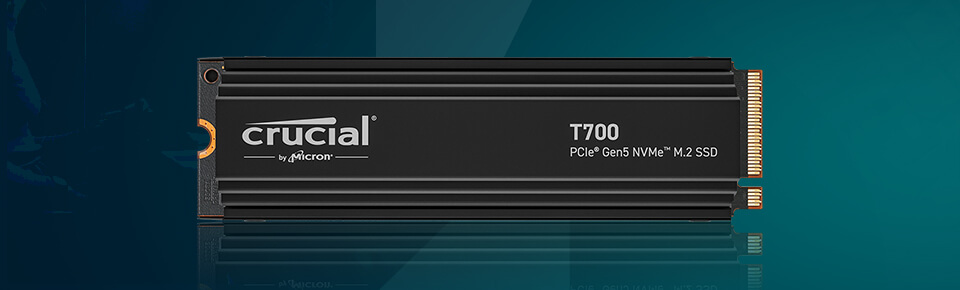

Crucial offers a heatsink version. Many experts say cooling is needed. This is true for heavy workloads. Without cooling, the drive can slow down. This is called thermal throttling. It may even shut down.

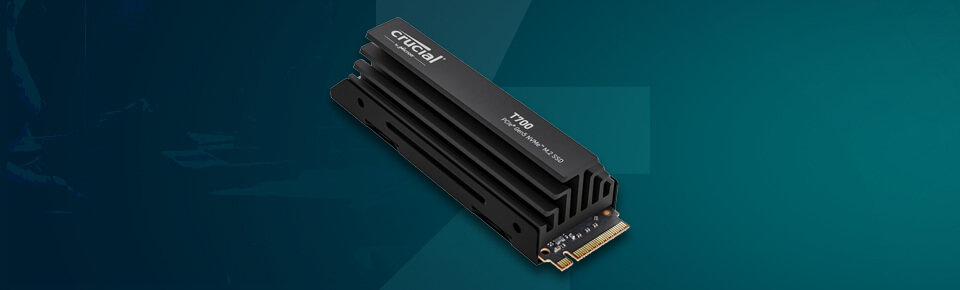

Desktop users may not need the heatsink. Their motherboards often have one. But for laptops, the heatsink version is almost required. This also applies to small PCs. The heatsink model is larger. It may not fit in all systems.

The Crucial T700 comes with a 5-year warranty. The drive's endurance is very good. The 1TB model has a rating of 600 TBW. The 2TB version has 1,200 TBW. The 4TB model has 2,400 TBW. This should be enough for most users. This includes gamers and creators.

The drive supports new features. It uses the NVMe 2.0 protocol. This helps with new hardware and operating systems. The drive also has security features. These include AES-256 encryption. It also supports TCG Opal.

The T700 is a top choice. This is for systems with PCIe 5.0. It also needs good cooling. Speed gains are very noticeable. This is true for tasks like editing media. It also helps with large file transfers. Loading big games is faster too. The T700 is much faster than PCIe 4.0 drives.

However, the price is high. At launch, the bare 1TB drive was about $179.99. The 2TB was $339.99. The 4TB was $599.99. Versions with a heatsink cost more. For some people, a good PCIe 4.0 SSD may be a better option. It can offer a better balance of price and performance.

Talking about all the goods and bads:

Pros:

·         It has an extremely high performance (reads/writes) and very high IOPS for demanding workloads.

·         Offering generous endurance numbers, especially for the larger capacity models.

·         This drive comes in both heatsinked and bare versions, offering flexibility depending on your cooling setup.

·         It has modern features like NVMe 2.0, a strong controller, and the latest NAND.

·         A 5-year warranty is standard for enthusiast SSDs.

Cons:

·         It is a very high price compared to Gen4 alternatives.

·         Runs very hot; without good cooling, you may face thermal throttling or even shutdowns under heavy sustained load.

·         Heatsink version is bulky and may not fit in confined or compact builds.

·         1TB version has somewhat lower sustained performance relative to the 2TB/4TB.

·         High power draw under load (which could be a concern for energy efficiency or laptops).

The Crucial T700 is a top-tier drive. It's for those building a high-end PC. It offers some of the fastest speeds. It uses the PCIe 5.0 standard. It has high endurance. It comes with a solid warranty. The price is high. It also requires good cooling. You need this to get its full performance.
