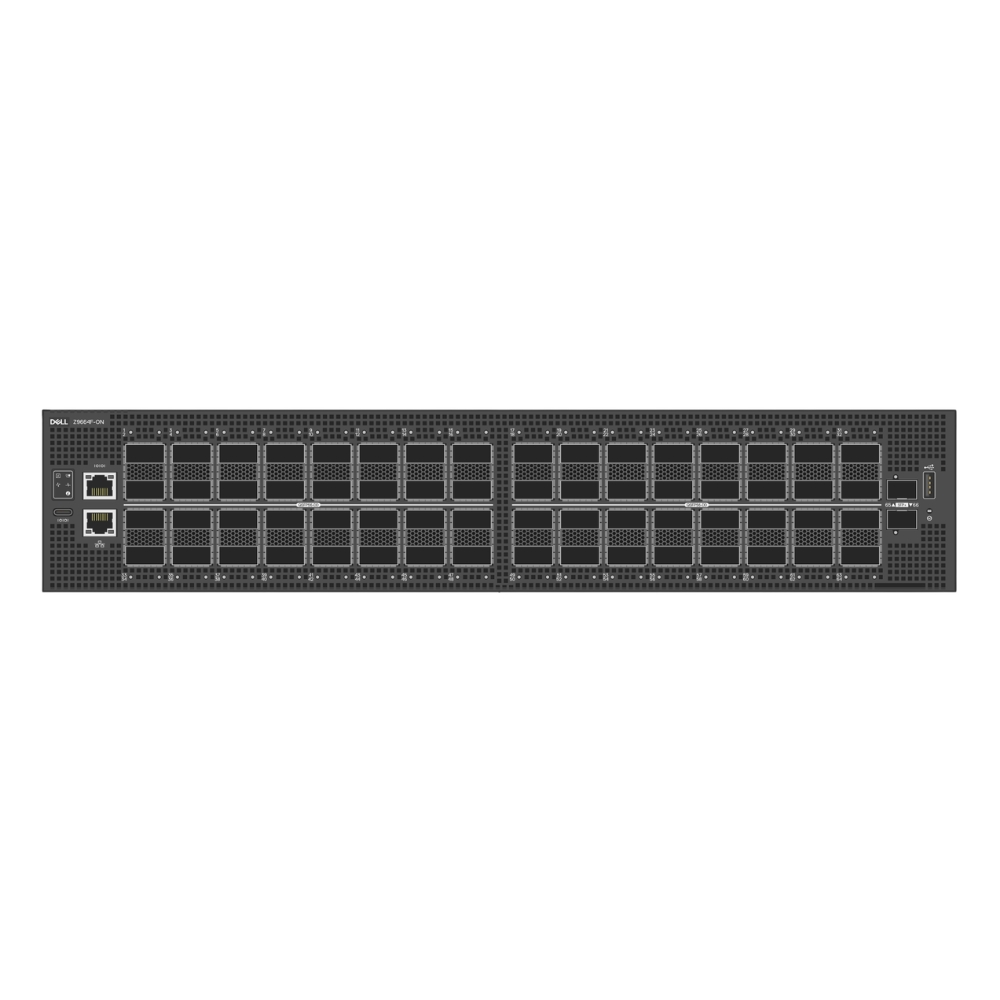

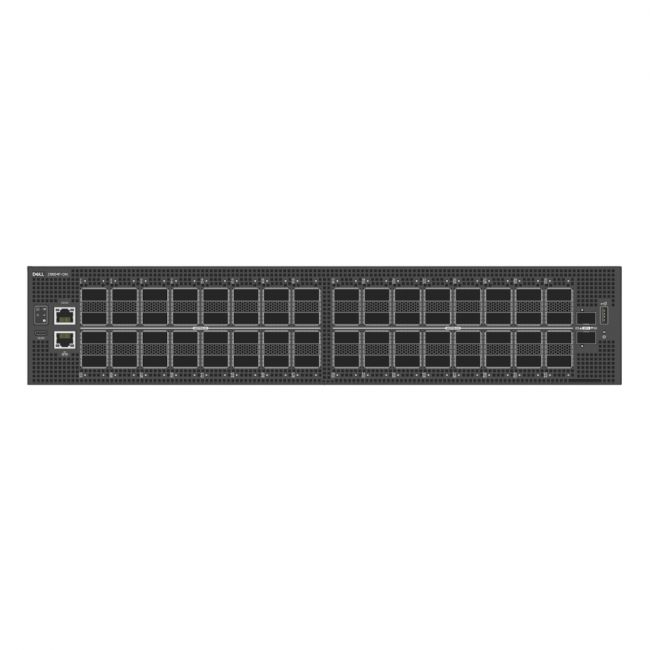

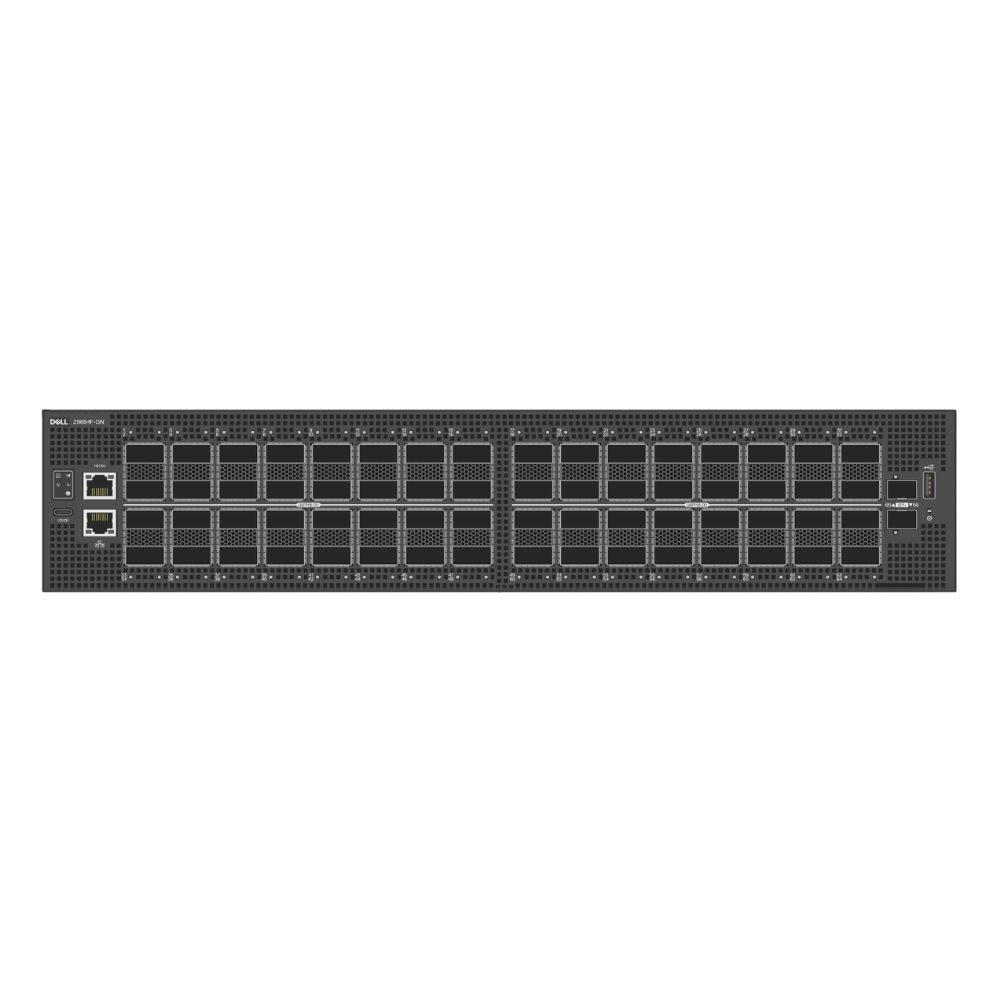

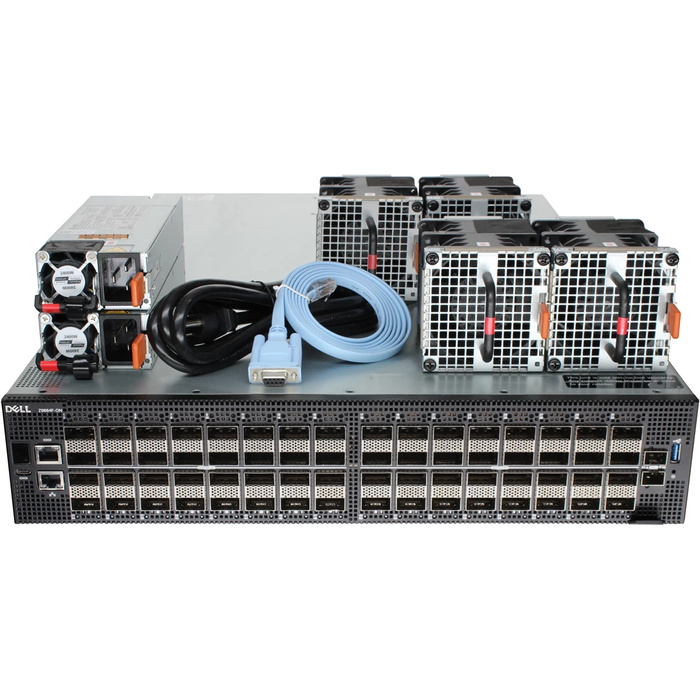

Name: Z9664F-ON Dell 64-Port 400GbE QSFP56-DD Network Switch 1RU Rack
Brand: Dell
SKU: Z9664F-ON
Price: 7284.00 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Overview
The Z9664F-ON is a high-capacity network switch offering 64 ports of 400GbE QSFP56-DD, fitting well within modern data center and core network setups. It provides the throughput and density needed for large-scale network operations, emphasizing efficiency and performance in demanding environments.

General Information
Brand	Dell
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	64
Number of Ports	64-Ports
Port Speed	400Gbps
POE Support	No
Switching Capacity	51.2 Tbps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	QSFP56-DD

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI,Web GUI,SSH,SNMP,Serial Console (RJ-45),USB Console
Security Features	ACLs,802.1X,RADIUS,TACACS+,DHCP Snooping,IP Source Guard
Management Type	Managed
Remote Management Protocol	SNMP,SSH,Telnet,RESTCONF,NETCONF

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D

Product Description
The Z9664F-ON is a network switch designed to deliver substantial bandwidth with its 64 ports of 400GbE QSFP56-DD connectivity. It's commonly found in large-scale data centers and network cores where massive data flow and speed are critical. Built for IT professionals handling demanding network environments, this switch supports complex networking architectures and intensive traffic loads. It often serves enterprises and service providers that require robust and scalable infrastructure. Key Features High port density enabling large-scale aggregation Low latency switching suited for performance-sensitive applications Energy-efficient design to optimize operational costs Supports advanced network protocols and automation features Flexible configuration options for diverse network topologies This switch plays a pivotal role in network infrastructure by managing high volumes of data with reliability and speed. Its performance and design help maintain smooth traffic flow and support evolving networking needs.

Use Cases
The Z9664F-ON switch is typically deployed in environments that require high throughput and low latency, such as hyperscale data centers and enterprise core networks. Network administrators and IT architects benefit from its ability to handle large data volumes efficiently. How It's Used: Aggregating traffic in hyperscale cloud data centers for large service providers Serving as a core switch in enterprise networks with intensive data flow Supporting high-performance computing clusters requiring fast interconnects Enabling edge computing sites to manage substantial bandwidth demands Integrating into storage clusters to facilitate rapid data transfer These deployment scenarios highlight the switch’s role in enhancing network scalability and operational reliability. Its design and features contribute to consistent performance across demanding workloads.
