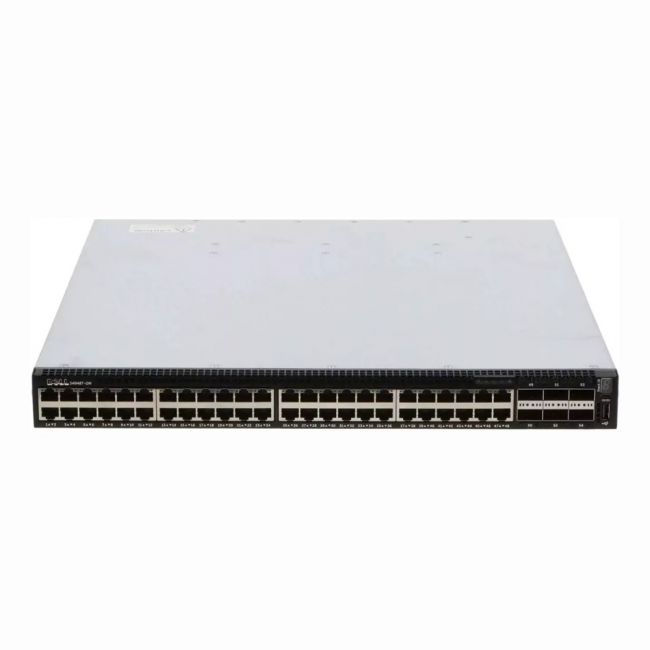

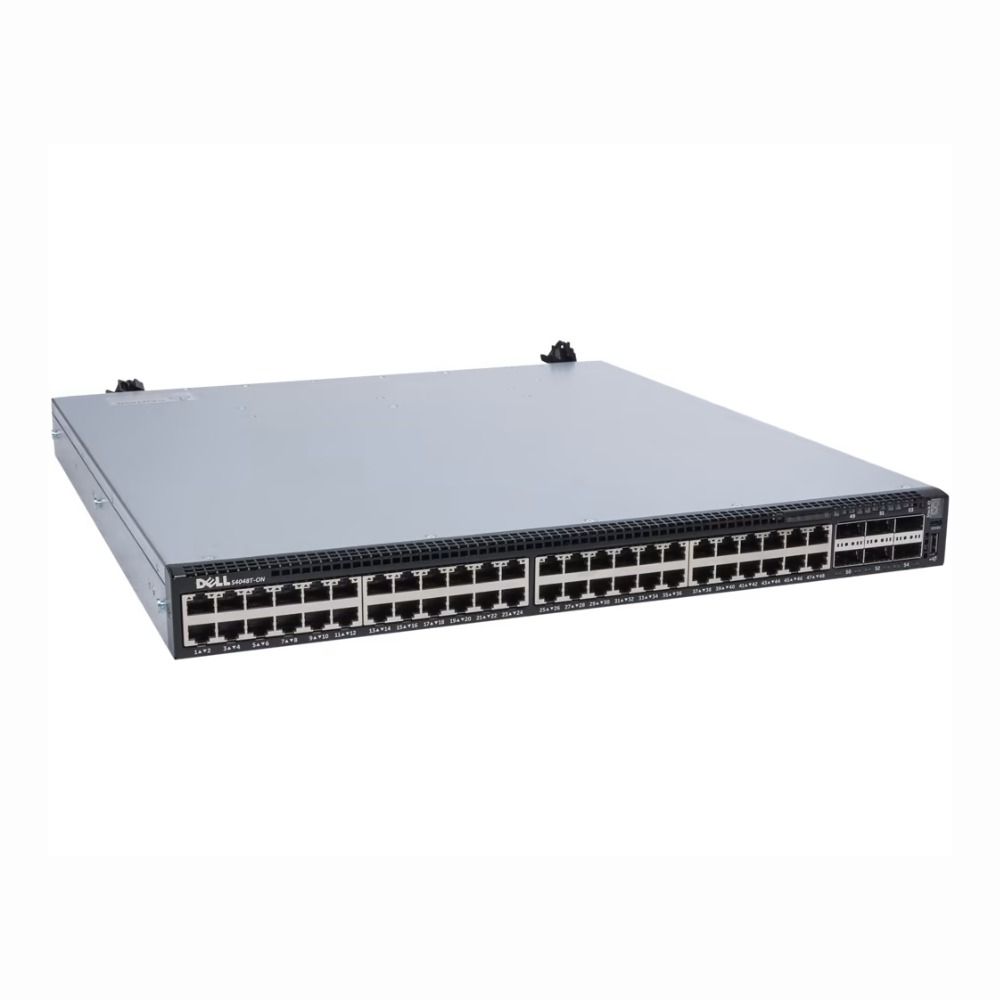

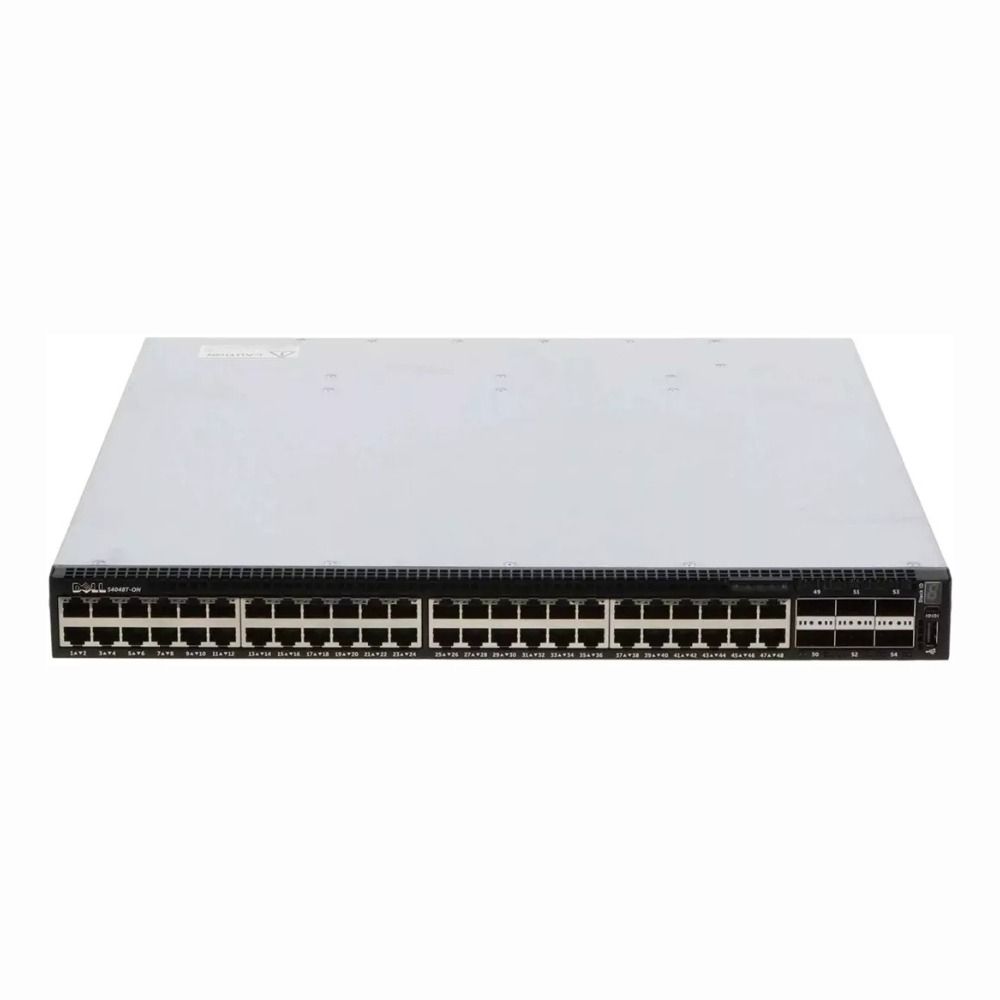

Name: YMFPH Dell PowerSwitch S4048T-ON 48x10GBase-T RJ-45 + 6xQSFP+ 1U Layer 3 Switch
Brand: Dell
SKU: YMFPH
Price: 874.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell PowerSwitch S4048T-ON offers 48 10GBase-T ports alongside 6 QSFP+ slots, providing flexible connectivity options for modern networks. It fits into rack-mounted setups and suits environments that need both Layer 2 switching and Layer 3 routing functions. This makes it a practical choice for data centers and large enterprise networks aiming to balance speed, scalability, and manageability.

General Information
Brand	Dell
Part Number	YMFPH
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10GBase-T, 40G QSFP+
Port Speed	10 Gbps (10GBase-T, auto-negotiation to 1G/100M), 40 Gbps (QSFP+)
UpLink Ports	6
POE Support	No
Switching Capacity	1.44 Tbps
Switch Forwarding Rate	2.81 Bpps (64-byte packets)
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32K

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI,Web GUI (HTTPS),SNMP,SSH,Serial Console (RJ-45)
Security Features	Access Control Lists (ACLs), 802.1X authentication, SSH/SSL, Port security, MAC filtering, Storm control
Security	Yes
Remote Management Protocol	SNMPv1/v2c/v3, SSH, HTTPS

Power & Cooling
Fans	3 (hot-swappable)

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1X

Product Description
The Dell PowerSwitch S4048T-ON is built for environments demanding robust and scalable network performance. It’s commonly found in data centers and enterprise networks where high bandwidth and reliable routing are critical. This switch is often used by network administrators who need a flexible and manageable solution for complex network architectures. Key Features Supports 48 10GBase-T ports, enabling easy integration with existing copper infrastructure Equipped with 6 QSFP+ ports for high-speed uplinks or stacking multiple switches Delivers Layer 3 routing to handle inter-VLAN traffic and advanced network segmentation Includes comprehensive management options including CLI, SNMP, and web interface Designed for 1U rack installation to optimize space in server racks This switch is typically deployed in enterprise or cloud data centers where both access and aggregation layers require high throughput and low latency. Its combination of copper and fiber connections allows for versatile network designs, while its Layer 3 capabilities help simplify traffic management across different VLANs and subnets.

Use Cases
The Dell PowerSwitch S4048T-ON is designed for high-density, high-throughput networking environments, particularly in data centers and enterprise IT infrastructures. Its combination of 10GBase-T and QSFP+ ports enables seamless integration into environments requiring both high-speed access and uplink flexibility. How It's Used: Connecting server racks in data centers to deliver low-latency 10GbE access for virtualization and cloud workloads. Supporting aggregation layers in large enterprise networks, facilitating Layer 3 routing between multiple subnets and VLANs. Providing flexible uplinks for storage area networks (SAN) and backup systems requiring fast and reliable data transfer. Enabling high-performance edge computing deployments with compact rack-mount installations in remote sites. Facilitating network segmentation and traffic isolation in multi-tenant environments through advanced Layer 3 management. This switch enhances operational efficiency by consolidating routing and switching functions in a single device, simplifying network topology. Its scalability supports growing bandwidth demands, while its compact form factor optimizes rack space utilization in dense environments.
