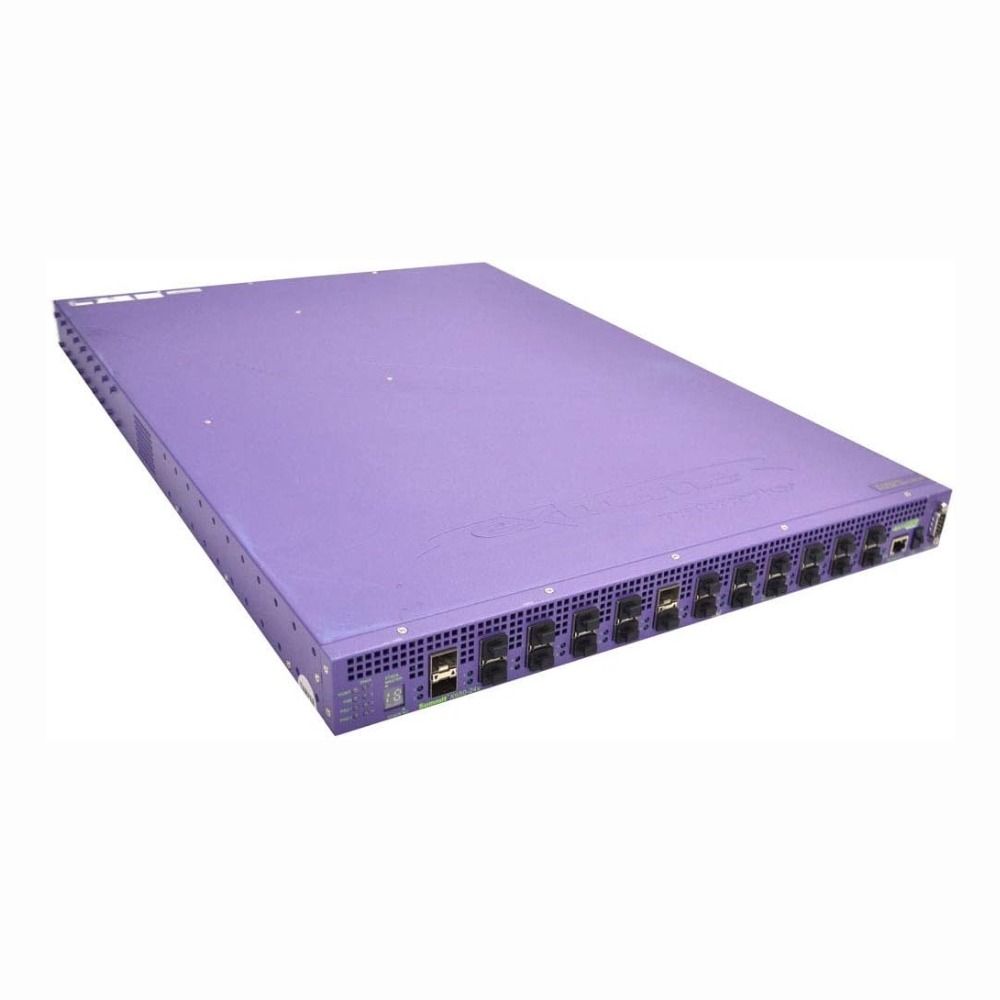

Name: X650-24X Extreme Networks Summit 24 x 10GbE SFP+ Ports, Stackable VLAN QoS Redundant Power 1U Rackmount Layer 3 Managed Switch
Brand: Extreme Networks
SKU: X650-24X
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The X650-24t/X650-24x Extreme Summit X650 series provides 24-port 10GbE connectivity with optional 1GbE uplinks, robust Layer 3 routing, and high switching performance, making it a strong choice for demanding data center and enterprise aggregation deployments.

General Information
Brand	Extreme Networks
Part Number	X650-24X
Condition	Refurbished

Technical Information
Switch Type	Stackable Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Number of Ports	24-Ports
Port Type	10GBase-T, SFP+
Port Speed	10 Gbps per port
UpLink Ports	4 × 1 Gb SFP
Switching Capacity	488 Gbps
Switch Forwarding Rate	363 Mpps
Stackable	Yes
Layer Support	Layer 2, Layer 3
Connector Type	RJ‑45 or SFP+ for data, RJ‑45 management, serial console

Performance
Jumbo Frame Support	Up To 9000 Bytes
MAC Address Table Size	32,000 entries

Management and Configuration
Routing Protocols	RIP, OSPF, BGP, VRRP, PIM-SM, PIM-DM
Remote Protocols	CLI, Web GUI, SNMP v1/v2c/v3, RMON, Syslog, sFlow
Management Interfaces	RJ‑45 OOBM 1Gb, RS‑232 console, USB
Security Features	ACLs, DiffServ QoS, storm control, 802.1p, secure management

Physical Characteristics
Dimensions	1.73″ × 17.35″ × 25.8″

Product Description
The Extreme Summit X650 series delivers high-density 10GbE switching for data centers and enterprise aggregation layers, supporting advanced Layer 3 routing and robust stackable architecture via SummitStack. Key Features Available in two models: X650-24t (10GBASE-T) and X650-24x (10G SFP+) Redundant, hot-swappable power supply and fan tray design Comprehensive Layer 2/3 protocol support including BGP, OSPF, VRRP, and EAPS Secure management with CLI, SNMP, RMON, sFlow, and Web GUI Ultra-low latency with cut-through forwarding and jumbo frame support This switch is ideal for high-throughput environments like virtualization clusters, core networking zones, or storage backbones where low latency, scalable stacking, and 10GbE density are critical to performance and flexibility.

Use Cases
The X650-24X switch is ideal for enterprise aggregation layers and data center environments where high-speed 10GbE connectivity and reliable Layer 3 routing are essential. Network architects and IT administrators benefit from its stackable design and robust switching capacity in managing complex, scalable infrastructures. How It's Used: Aggregating multiple 10GbE server uplinks in medium to large data centers to optimize traffic flow. Deploying in enterprise campus networks as a distribution switch supporting VLAN segmentation and routing. Providing high-throughput connectivity for virtualization clusters requiring low-latency switching. Implementing in edge computing sites needing compact, stackable switches with redundant power options. Supporting storage area networks (SANs) where 10GbE links improve access speed and resilience. By integrating advanced Layer 3 features and stacking capabilities, the X650-24X supports scalable and efficient network designs. Its performance and reliability make it a solid choice for environments demanding consistent throughput and simplified management.
