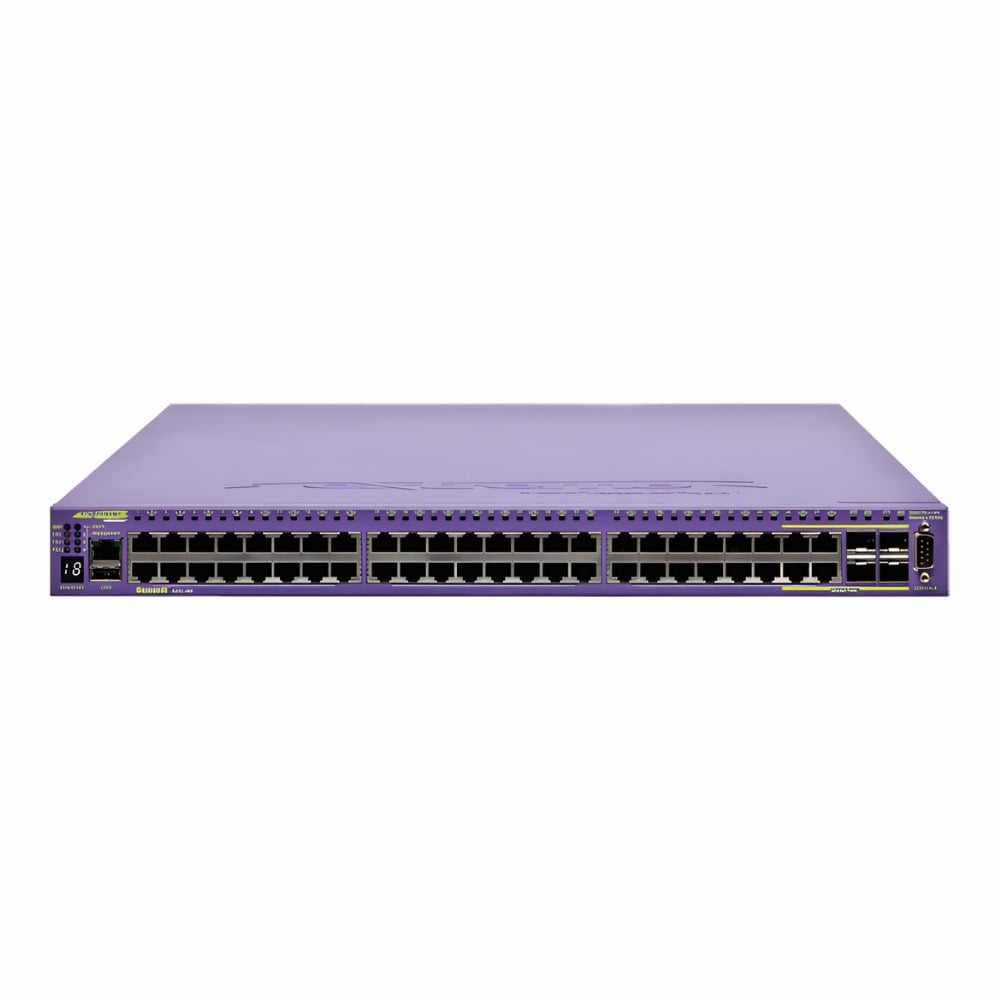

Name: X480-48T-40G-CORE Extreme Networks 48x1GbE + 4 SFP + 4 QSFP+ Layer 3 Switch
Brand: Extreme Networks
SKU: X480-48T-40G-CORE
Price: 2147.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Extreme Networks Summit X480-48T-40G-CORE combines multiple Gigabit ports with high-speed uplinks, making it suitable for core network layers and aggregation points. It integrates Layer 3 functionality to handle routing within enterprise or campus networks, providing flexibility and performance needed in busy IT infrastructures.

General Information
Brand	Extreme Networks
Part Number	X480-48T-40G-CORE
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Speed	10/100/1000Base-T,1G,10G,40G
Switching Capacity	496 Gbps
Switch Forwarding Rate	968.75 Mpps
Max VLANs Supported	1-4094
Connector Type	48 x RJ-45 (10/100/1000Base-T),4 x Shared SFP (1G/10G),4 x QSFP+ (40G)

Performance
Latency	<3 µs
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Security	802.1X,ACL,MAC Authentication,SSH,SNMPv3
Remote Management Protocol	SNMPv1/v2/v3,SSH,Telnet,HTTP/HTTPS,REST
Routing Protocol	OSPF,RIP,VRRP,Static Routing,BGP,PIM

Power & Cooling
Fans	Hot-swappable fans

Physical Characteristics
Weight	4.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	Yes
Compliance Standards	WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X

Product Description
The Extreme Networks Summit X480-48T-40G-CORE is a versatile network switch designed to provide high-performance Ethernet connectivity in enterprise environments. It’s commonly used in data centers and core network layers where reliable and scalable networking is essential. Built for IT professionals and network administrators, it supports a range of deployment scenarios from campus backbones to server aggregation. Key Features Offers robust Layer 3 routing to manage complex traffic flows efficiently Includes 48 Gigabit copper ports for widespread device connections Shared SFP ports allow for flexible network design with fiber or copper options QSFP+ ports deliver high-bandwidth uplinks for demanding network segments Rack-mountable form factor fits standard data center equipment racks This switch is often found in environments requiring reliable traffic management and high port density. It helps maintain smooth communication between servers, storage, and other network devices, reducing bottlenecks and supporting smooth data transfers.

Use Cases
The Extreme Networks X480-48T-40G-CORE switch is designed for environments requiring high-density Gigabit connectivity combined with multi-gigabit uplinks. It excels in enterprise campus cores and data center aggregation layers where routing and switching need to be consolidated into a single device for operational simplicity and scalability. How It's Used: Serving as a core switch in enterprise campus networks to aggregate multiple access switches and manage inter-VLAN routing. Deployed in data center aggregation layers to consolidate traffic from top-of-rack switches and support high-throughput east-west data flows. Supporting virtualization environments by providing segregated routing and high-speed uplinks for VM traffic distribution and storage access. Used in large SMB networks where a combination of Layer 2 and Layer 3 functionalities is required to optimize traffic management and network segmentation. Implementing edge computing nodes with low-latency, high-bandwidth connectivity to support real-time analytics and IoT device aggregation. This switch enhances operational efficiency by combining dense Gigabit access with scalable 40Gbps uplinks, enabling simplified network design in complex infrastructures. Its Layer 3 capabilities help reduce latency and improve bandwidth utilization across multiple network segments.
