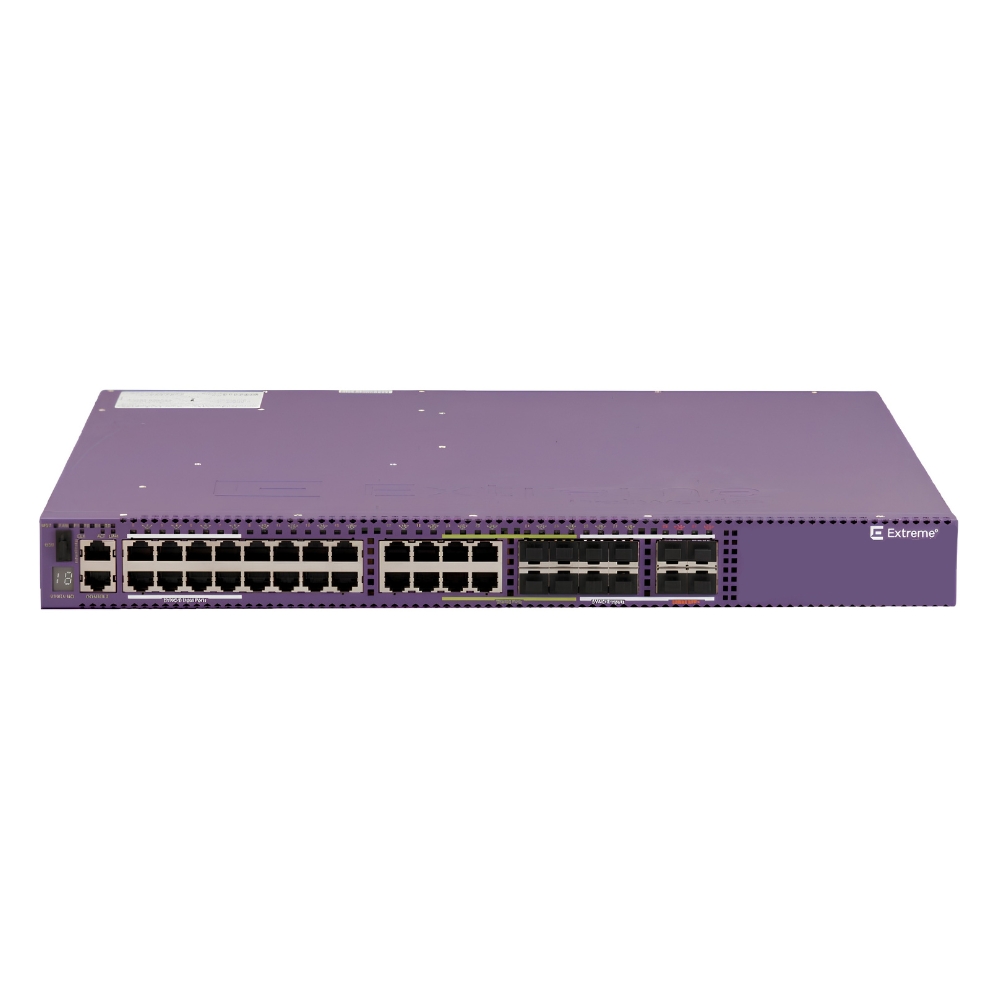

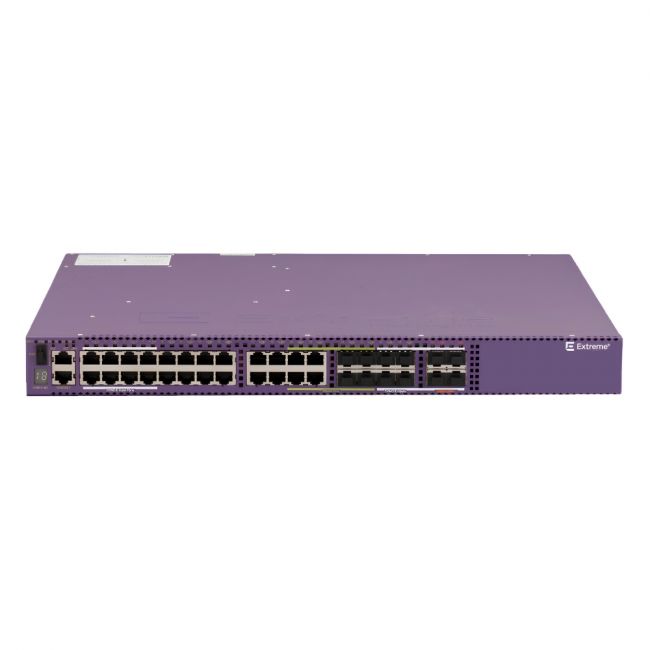

Name: X460-24P Extreme Networks 24-Port PoE 10/100/1000Base-T Layer 3 Switch
Brand: Extreme Networks
SKU: X460-24P
Price: 184.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Extreme Networks Summit X460-24P combines PoE-enabled gigabit ports with flexible fiber uplinks and Layer 3 routing to deliver robust network connectivity. It fits well in environments that require managed switches offering both power and data transmission, supporting a range of enterprise-level networking needs.

General Information
Brand	Extreme Networks
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 1000Base-X, SFP, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000
UpLink Ports	8 x 100/1000Base-X,4 x SFP
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps
DRAM	512 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP,Serial Console (RJ-45),USB Console

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP
Remote Protocols	Yes
Management Interfaces	Web GUI, CLI (console/SSH/Telnet), SNMP v1/v2/v3, RMON, sFlow
Security Features	ACLs, 802.1X, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, ARP protection, Port Security, Storm Control, DoS protection
Management Type	Managed
Remote Management Protocol	SNMP,SSH,Telnet,HTTP,HTTPS,CLI
Routing Protocol	Static,RIP,OSPF,VRRP

Power & Cooling
Fans	Yes (internal variable-speed fans)
Power	AC 100-240V, 50-60Hz; PoE budget: 370 W
Power Supply	Internal fixed AC power supply

Physical Characteristics
Dimensions	1.73 x 17.32 x 12.99 in
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Assembly Required	No
Compliance Standards	RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at

Product Description
The Extreme Networks Summit X460-24P is a Layer 3 managed Ethernet switch built for gigabit network environments. It delivers versatile connectivity with a mix of PoE-enabled RJ-45 ports, high-speed fiber uplinks, and dedicated SFP slots. This switch is often found in enterprise data centers, campus networks, and service provider infrastructures where reliable and scalable network performance is essential. Typically utilized by network administrators and IT professionals, the Summit X460-24P supports advanced routing and traffic management, accommodating a range of network sizes and complexities. Its design suits deployments that demand high throughput with PoE capabilities for connected devices. Key Features High-density PoE ports that supply power and data over a single cable Multiple fiber uplink options for extended reach and flexible connectivity Layer 3 switching with advanced routing protocols for efficient traffic handling Rack-mountable form factor suitable for structured wiring closets and data center racks Comprehensive management tools enabling fine-tuned network control and monitoring Overall, this switch plays a vital role in maintaining network reliability and growth. Its blend of power over Ethernet, fiber uplinks, and Layer 3 capabilities ensures it can handle demanding network loads without compromising on performance or control.

Use Cases
The Summit X460-24P is commonly deployed in environments that need reliable, high-speed networking with PoE support. It serves networks where multiple connected devices require both data and power, alongside fiber connections for backbone or uplink purposes. IT teams benefit from its management features and scalability in medium to large infrastructures. How It's Used: Connecting VoIP phones and wireless access points in enterprise office networks using PoE ports Providing uplink connections to data center core switches via fiber SFP ports Supporting edge computing setups with flexible Layer 3 routing and traffic management Integrating into campus networks requiring segmentation and VLAN routing capabilities Deploying in service provider access networks that leverage fiber and copper connections This switch supports operational efficiency by combining power delivery and high-speed data in one device, helping organizations scale their networks while maintaining performance. Its rack-mount design and comprehensive management tools simplify administration and integration in diverse networking environments.
