Product Overview |
|---|

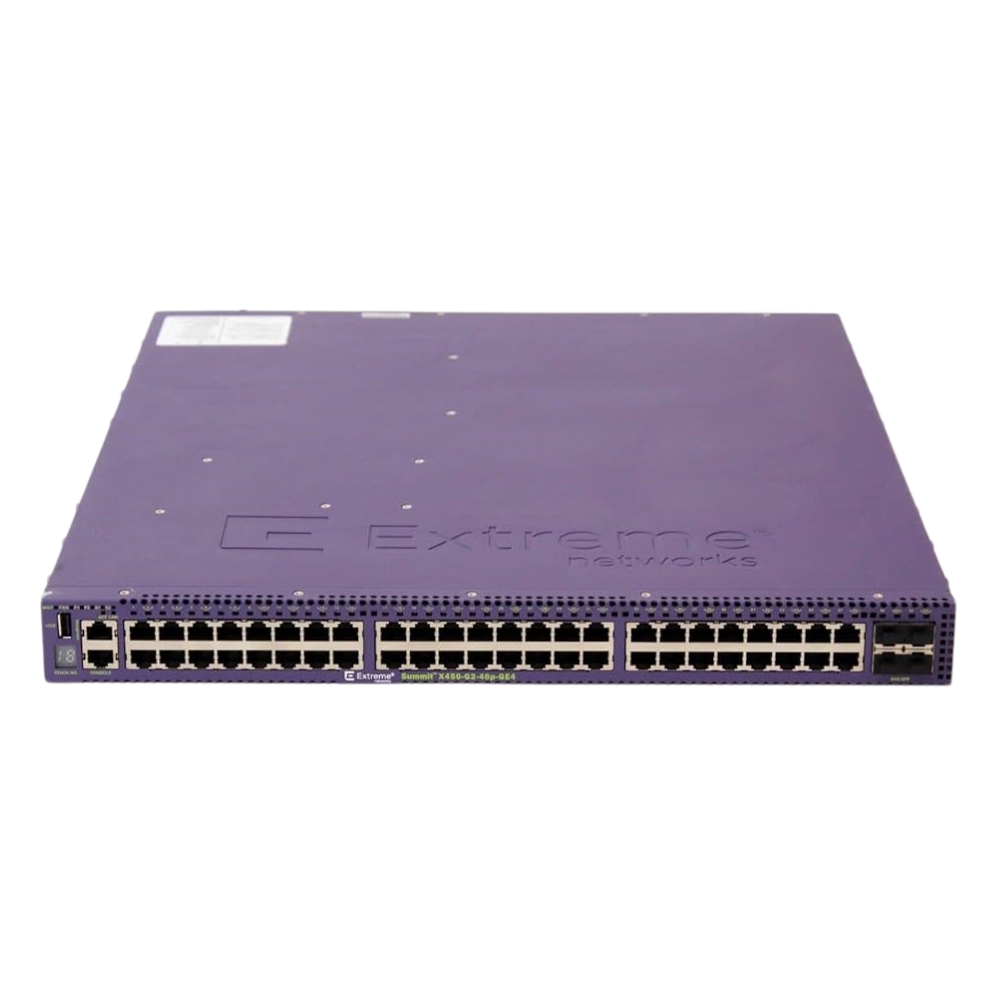

The X450A-48T switch combines 48 Gigabit Ethernet ports with 4 shared SFP slots to offer flexible uplink options and effective Layer 3 routing capabilities. It's built to handle dense network deployments requiring both performance and adaptability without sacrificing manageability. |
General Information |
|
|---|---|
| Brand | Extreme Networks |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 (shared SFP) |
| POE Support | No |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 203.125 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 2, Layer 3 |
| Connector Type | RJ-45,SFP,Serial Console (RJ-45),USB Console |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32768 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, VRRP, IGMP, Policy-Based Routing (PBR) |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), Serial Console (RJ-45), SNMP, RMON, sFlow |
| Security Features | 802.1X,ACLs,MAC authentication,Port security,SSH/HTTPS,ARP inspection,DHCP snooping,IP Source Guard |
| Management Type | In-band and Out-of-band |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static,RIP,OSPF,OSPFv3,VRRP |
Power & Cooling |
|
|---|---|
| Fans | Yes (internal, variable speed) |
| Power | 100-240 VAC, 50/60 Hz (typical max ~75W) |
| Power Supply | Internal fixed AC (100-240VAC) |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.73 x 17.32 x 12.20 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.3ad |
Product Description |
|---|
The X450A-48T switch delivers robust Layer 3 switching with 48 Gigabit Ethernet ports and 4 shared SFP uplinks, allowing flexible connectivity for both copper and fiber networks. It is often found in enterprise and data center networks where high port density and advanced routing are necessary. Built for IT professionals managing medium to large-scale networks, the switch supports efficient traffic handling and network segmentation to keep operations running smoothly. Its design emphasizes scalability and adaptability in evolving network infrastructures. Key Features
This model provides a solid foundation for complex network architectures, enabling seamless data flow and management. Its reliability and performance ensure steady network availability for critical operations. The X450A-48T integrates smoothly into diverse network setups, supporting expansion and maintaining consistent throughput as demands grow. |
Use Cases |
|---|
The X450A-48T switch is typically deployed in environments demanding high port counts and versatile uplink configurations, such as campus networks and mid-sized data centers. Network administrators benefit from its routing capabilities and port flexibility to optimize traffic flow and network segmentation. How It's Used:
By enabling efficient connectivity and routing, the switch enhances operational efficiency and supports network growth without compromising performance, making it a dependable choice for IT infrastructure. |
