| Product Overview |
|---|

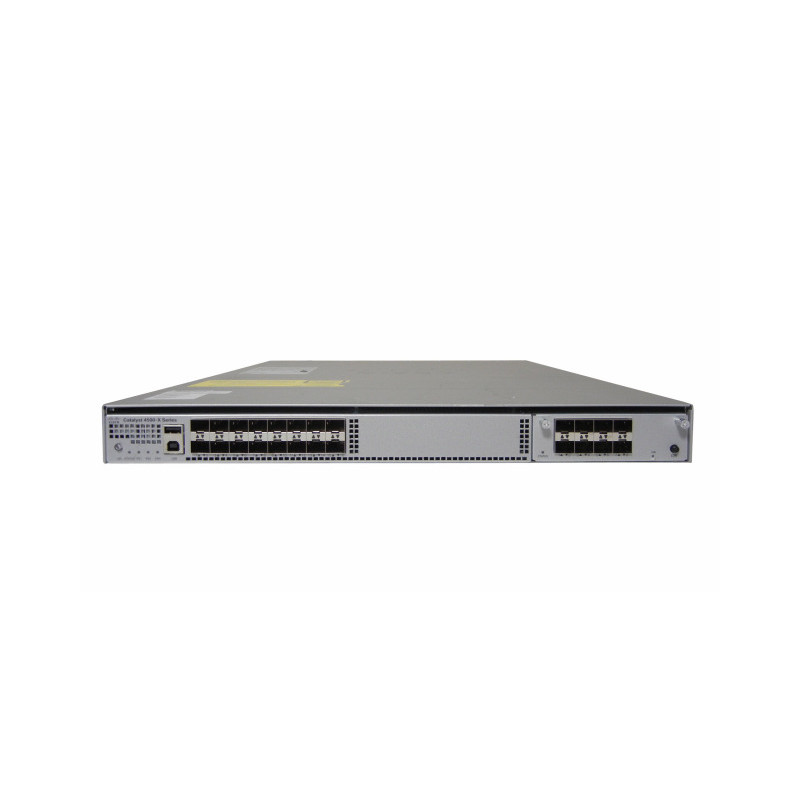

The Cisco Catalyst 4500-X Series C4500X-16SFP+ is a Layer 3 network switch designed to deliver high-speed 10G fiber connectivity through its 16 SFP+ ports. It fits into enterprise or data center networks where reliable, manageable, and scalable switching is needed. Its front-to-back airflow and rack-mount design make it suitable for dense networking setups while providing advanced routing and management features to support complex network architectures. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C4500X-16SFP+ |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 16 |
| Number of Ports | 16-Ports |
| Port Type | 10G SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10 Gbps |
| UpLink Ports | 16 x 10G SFP+ |
| POE Support | No |
| Switching Capacity | 320 Gbps |
| Switch Forwarding Rate | 312.5 Mpps |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | SFP+,Serial Console (RJ-45),USB Console |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP, Policy-Based Routing (PBR) |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console/SSH/Telnet),Web GUI (Cisco Prime),SNMPv1/v2/v3,NETCONF,RESTCONF |
| Remote Management Protocol | SSH,Telnet,HTTPS,HTTP,SNMPv1/v2/v3,NETCONF,RESTCONF |
| Power & Cooling | |
|---|---|
| Fans | Front-to-Back Airflow (variable-speed, hot-swappable) |
| Power Supply | Dual redundant hot-swappable AC power supplies (100-240VAC) |
| Physical Characteristics | |
|---|---|
| Dimensions | 3.5 x 17.5 x 18.4 in (HxWxD) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3ae (10GbE), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ad (LACP), IEEE 802.3x |
| Product Description |
|---|
The Cisco Catalyst 4500-X Series C4500X-16SFP+ is a powerful network switch designed to handle high-performance data traffic in enterprise environments. It is often found in data centers or core network layers where reliable and fast connectivity is essential. This switch is built for network administrators and IT teams looking to deploy a flexible and manageable solution capable of supporting demanding applications. Key Features
This switch is typically deployed in enterprise data centers, aggregation layers, or high-performance access networks. It provides the necessary bandwidth and routing capabilities that modern networks require while maintaining energy efficiency through its cooling design. Users benefit from a robust and scalable platform that fits well in multi-vendor environments and supports evolving network needs. |
