| Product Overview |
|---|

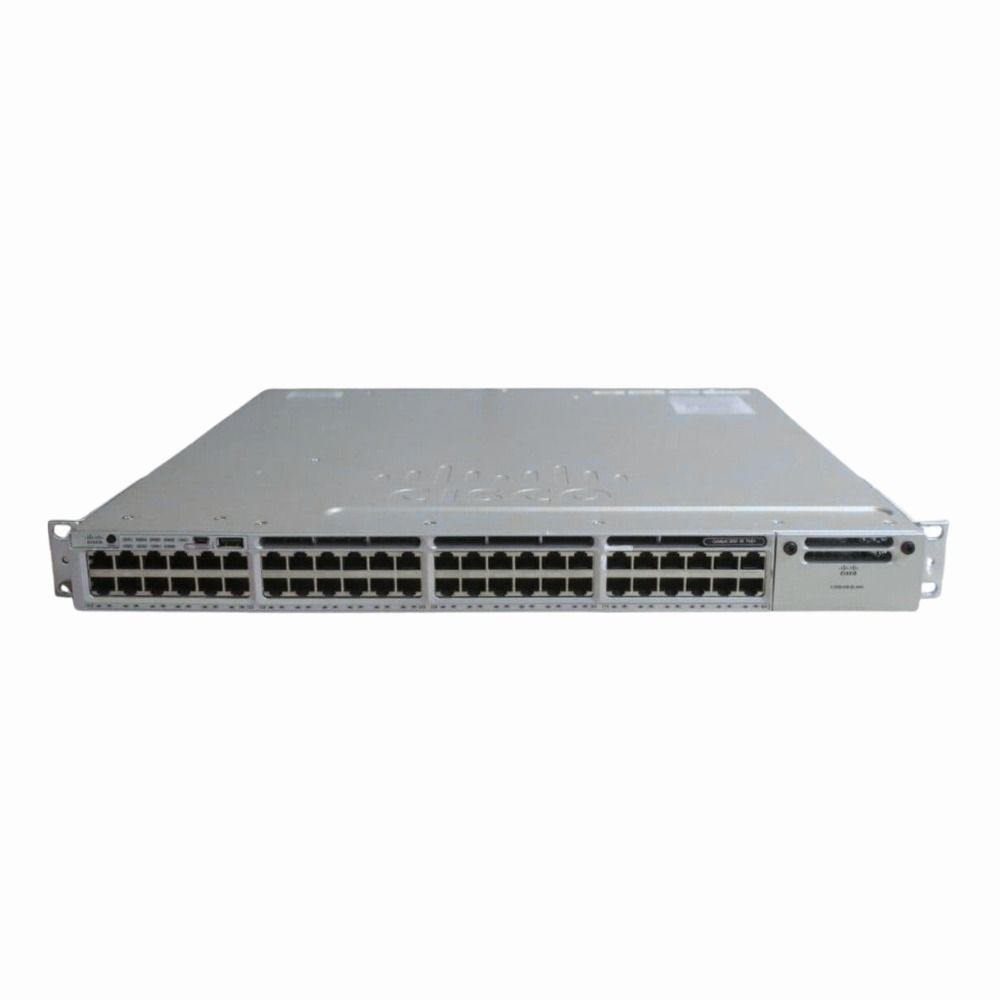

The Cisco Catalyst 3850-48P-S is a robust Layer 3 managed switch that combines 48 PoE+ capable Gigabit Ethernet ports in a rack-mountable unit. It fits well in enterprise or campus networks requiring efficient power delivery alongside advanced routing features, supporting a wide range of network devices with reliable performance and scalability. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3850-48P-S-0PSU |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 x RJ-45 (PoE+) |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP (1G) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 77.37 Mpps |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 (4094 VLANs) |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45), USB Console, SSH, Telnet, HTTP/HTTPS, SNMP |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMP |
| Power & Cooling | |
|---|---|
| Fans | 2 field-replaceable fans |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w |
| Product Description |
|---|
The Cisco Catalyst 3850-48P-S is built for enterprise networks that demand reliable and scalable connectivity. It combines 48 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) capabilities, allowing it to power devices such as IP phones, wireless access points, and security cameras directly through the network cable. This switch is often found in medium to large campus or branch networks where both high performance and power delivery are required. Designed primarily for network administrators and IT teams, the 3850-48P-S offers Layer 3 features including routing and policy control to support complex network topologies. Its rack-mountable form fits neatly into standard server racks, making it a practical choice for structured wiring closets and data centers. Key Features
This switch is typically deployed in enterprise-grade network environments, especially where powering network devices through PoE+ simplifies installation and reduces cabling. It plays a crucial role in delivering consistent network performance and flexibility, meeting the demands of modern network setups. |
