| Product Overview |
|---|

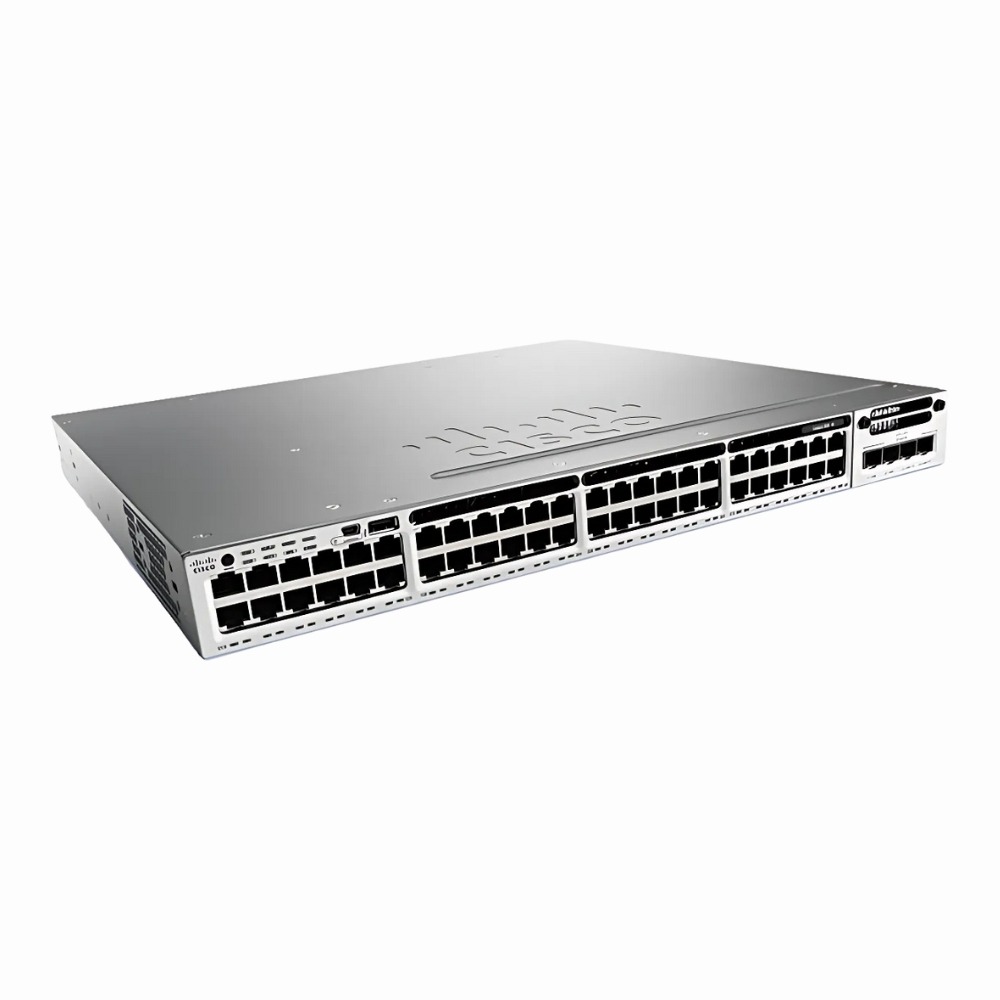

The Cisco Catalyst 3850-48P-E switch provides Layer 3 management capabilities combined with Power over Ethernet Plus for up to 48 devices. It fits into rack environments and supports standard Gigabit Ethernet connections, making it a solid choice for enterprise networks that need both power and data delivery alongside advanced routing features. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3850-48P-E |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x 10/100/1000 (POE+) |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switch Forwarding Rate | Up to 130.95 Mpps |
| DRAM | 4GB |
| VLAN Support | Yes |
| Max VLANs Supported | 4,000 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP, MLD |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console),Web UI,SSH,Telnet,SNMP |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMP |
| Power & Cooling | |
|---|---|
| Power Supply | PWR-C1-715WAC |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1X-Rev ●IEEE 802.11 ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 10 |
| Product Description |
|---|
The Cisco Catalyst 3850 Series switch is built for managing network traffic with high performance and flexibility. It’s often found in enterprise networks where delivering power and data over Ethernet to multiple devices is essential. This switch is commonly used in office data centers, wiring closets, and campus networks to support devices like IP phones, wireless access points, and security cameras. Network administrators and IT teams rely on its Layer 3 capabilities to efficiently route traffic and maintain network stability. Key Features
In practice, this switch is deployed in environments that require a mix of power and data delivery over a single cable, simplifying installations. It plays a key role in networks that need both wired device connectivity and scalable routing functions. |
