| Product Overview |
|---|

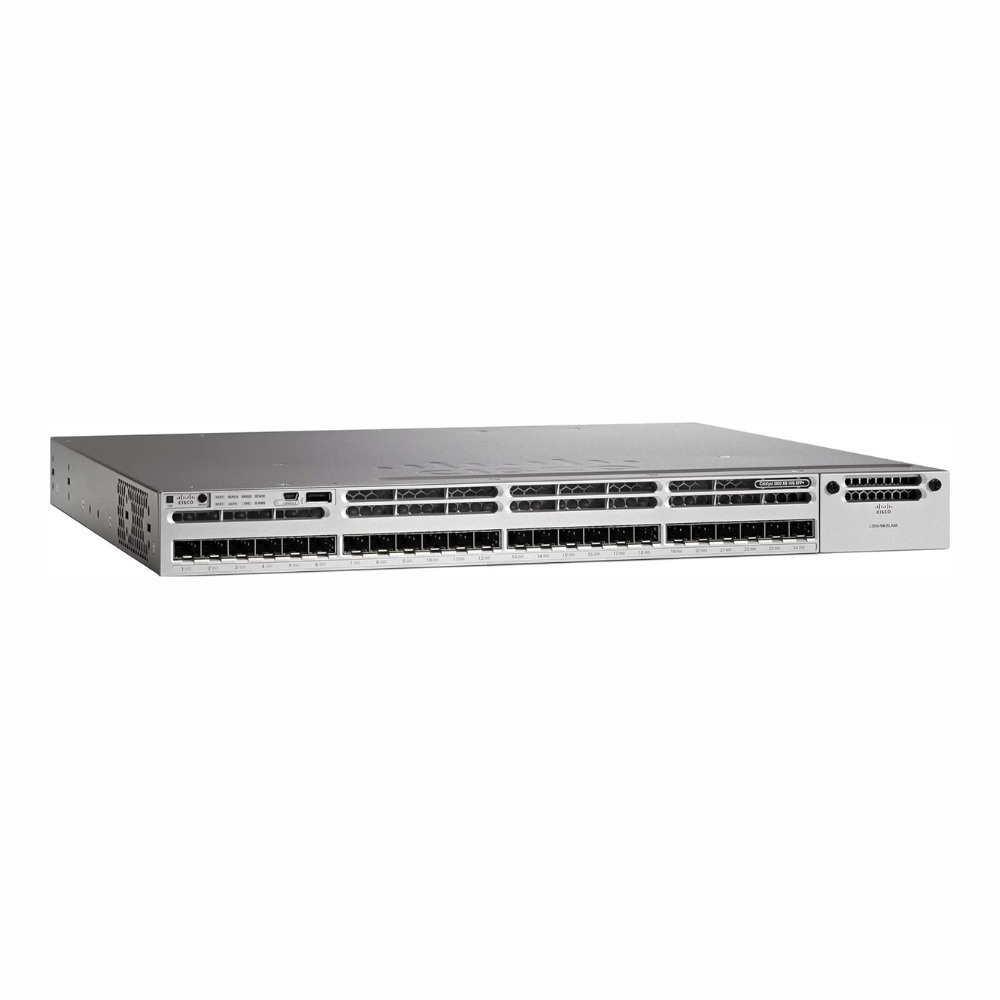

The Cisco Catalyst 3850-24XS-E provides 24 SFP+ ports with 10GBase-X speeds, fitting well into enterprise and data center networks that require high-speed fiber connections. It supports Layer 3 routing and stacking, making it a flexible tool for network growth and management. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3850-24XS-E |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Number of Ports | 24-Ports |
| Port Type | SFP+ |
| Port Speed | 10 Gbps |
| POE Support | No |
| Switching Capacity | 480 Gbps |
| Switch Forwarding Rate | 937.5 Mpps |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP, Policy-Based Routing (PBR) |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45), USB Console, Web UI (HTTP/HTTPS), CLI, SSH, Telnet, SNMP, RMON |
| Remote Management Protocol | SNMPv1,SNMPv2c,SNMPv3,SSH,Telnet,HTTP,HTTPS |
| Power & Cooling | |
|---|---|
| Fans | 2 (field-replaceable, redundant) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.7 inches |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, RFC 791, RFC 793 |
| Product Description |
|---|
The Cisco Catalyst 3850-24XS is built for high-performance network environments requiring reliable 10 Gigabit Ethernet connections. It is commonly used in enterprise data centers and aggregation layers where dense fiber connectivity is essential. Network administrators and IT professionals benefit from its advanced Layer 3 features and flexible stacking capabilities. This switch is often found in setups that demand robust routing, switching, and security functions combined with ease of management. Its 1U form factor fits standard racks, making it a practical choice for optimizing space. Key Features
Typically deployed in core or distribution layers of a network, this switch helps manage large volumes of data traffic efficiently. Its stackable design means organizations can easily scale their infrastructure without disrupting existing operations. |
