| Product Overview |
|---|

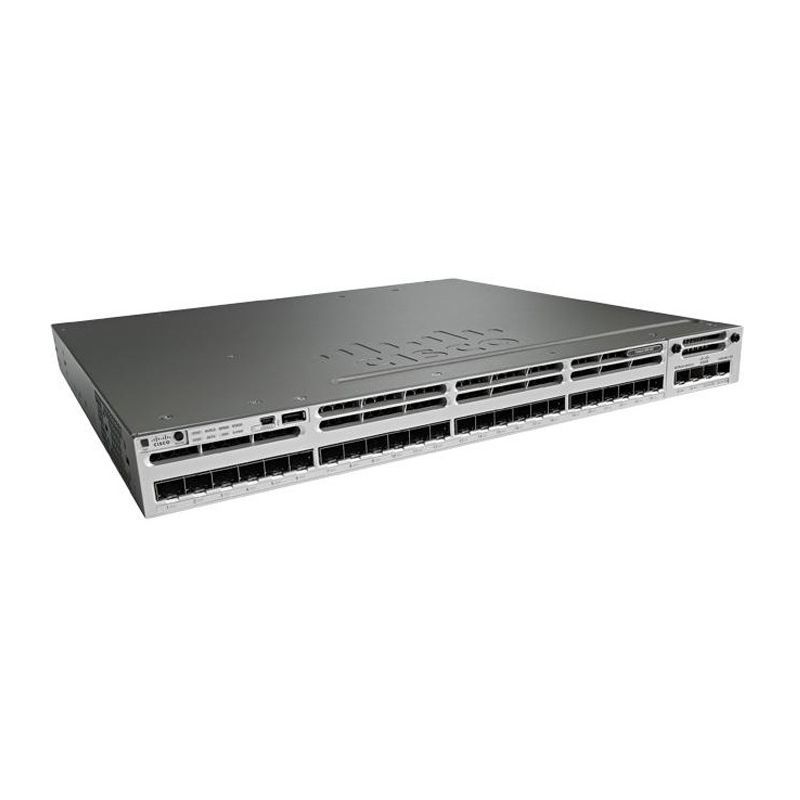

The Cisco Catalyst 3850-24S-S is a versatile layer 3 switch providing 24 fiber SFP ports for gigabit connectivity. It fits neatly in a 1U rack and is designed to support growing networks through stacking and advanced management features, making it a solid choice for enterprises looking to balance performance and scalability. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3850-24S-S |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 24 x SFP+ Ports |
| Number of Ports | 24-Ports |
| Port Type | SFP, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 1 Gbps |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | No |
| Switching Capacity | Up to 92Gbps |
| Switch Forwarding Rate | Up to 68.4 Mpps |
| DRAM | 4GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1,000 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | SFP,SFP+,RJ-45,USB Console |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 Entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console, SSH), Web UI (HTTP/HTTPS), SNMP, RMON, RESTCONF/NETCONF |
| Security | 802.1X,RADIUS,TACACS+,ACLs |
| Remote Management Protocol | SSH,SNMPv2/SNMPv3,HTTP/HTTPS,RESTCONF/NETCONF |
| Routing Protocol | Static,RIP,OSPF,EIGRP,BGP,VRRP,HSRP,PIM-SM,IGMP |
| Power & Cooling | |
|---|---|
| Fans | Redundant, field-replaceable fans |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.1p CoS Prioritization ● IEEE 802.1Q VLAN ● IEEE 802.1s ● IEEE 802.1w ● IEEE 802.1X ● IEEE 802.1X-Rev ●IEEE 802.11 ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad ● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, an |
| Product Description |
|---|
The Cisco Catalyst 3850-24S-S is built for handling demanding network environments where fiber connectivity is essential. It’s often found in enterprise data centers and campus networks where high-speed uplinks and flexible management are required. Engineered for network administrators and IT professionals, this switch offers robust Layer 3 features, allowing for both routing and switching in a single platform. Its stackable design means you can expand your network without adding complexity. Key Features
This switch is typically deployed where reliable fiber uplinks are critical, such as in wiring closets or core network locations. It helps maintain network performance and reduces downtime by offering flexible configuration and stacking options. |
