| Product Overview |
|---|

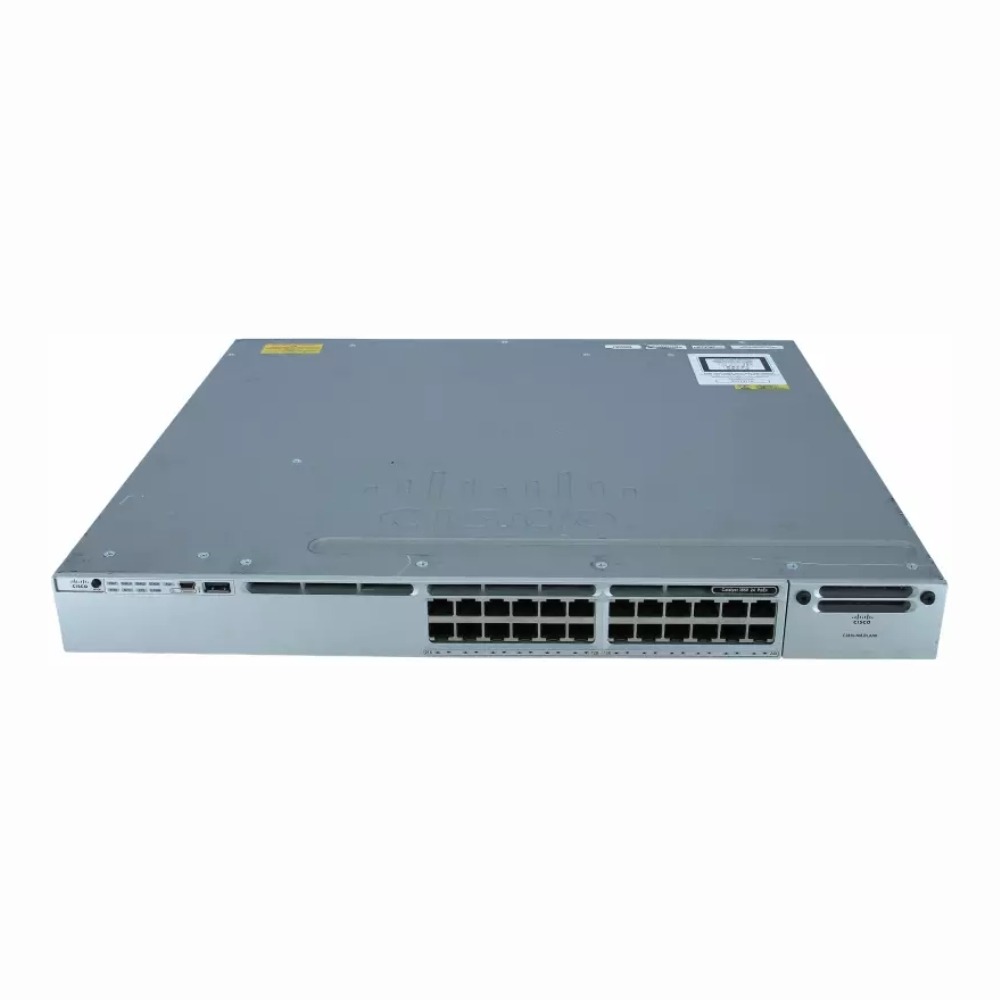

The Cisco Catalyst 3850-24P switch combines high-capacity Gigabit Ethernet ports with PoE to serve medium to large networks that need reliable power and data delivery in a single unit. It fits into standard racks and supports Layer 3 functions, making it a versatile device for managing network traffic in corporate and campus settings. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3850-24P-S |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Cisco IOS XE (CLI, Web UI) with SNMP/NETCONF/RESTCONF support |
| Management Interfaces | CLI (console/SSH), Web UI, SNMPv2/v3, HTTP/HTTPS, TELNET, USB Console |
| Remote Management Protocol | SNMP,SSH,HTTPS,HTTP,TELNET,NETCONF,RESTCONF |
| Routing Protocol | Static,RIP,OSPF,EIGRP,BGP,VRRP,HSRP,GLBP,PIM-SM,IGMP,Policy-Based Routing (PBR),Route Maps |
| Power & Cooling | |
|---|---|
| Power | Up to 370 W PoE budget (depends on power supply and configuration) |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X,IEEE 802.3ad |
| Product Description |
|---|
The Cisco Catalyst 3850 Series switch is built for managing network traffic efficiently in medium to large business environments. It combines high-speed connectivity with the ability to power devices such as IP phones and wireless access points directly through the Ethernet ports. Often found in enterprise networks and data centers, it delivers routing and switching features in one device. Designed for network administrators and IT teams, this switch offers advanced Layer 3 features allowing for better traffic management and scalability. It is commonly used in corporate offices, campus networks, and anywhere centralized network control is needed. Key Features
This switch is typically deployed in office wiring closets, data centers, or campus environments where reliable power and data connectivity are essential. It helps reduce cabling complexity by powering devices directly and simplifies network management with integrated routing capabilities. |
