| Product Overview |
|---|

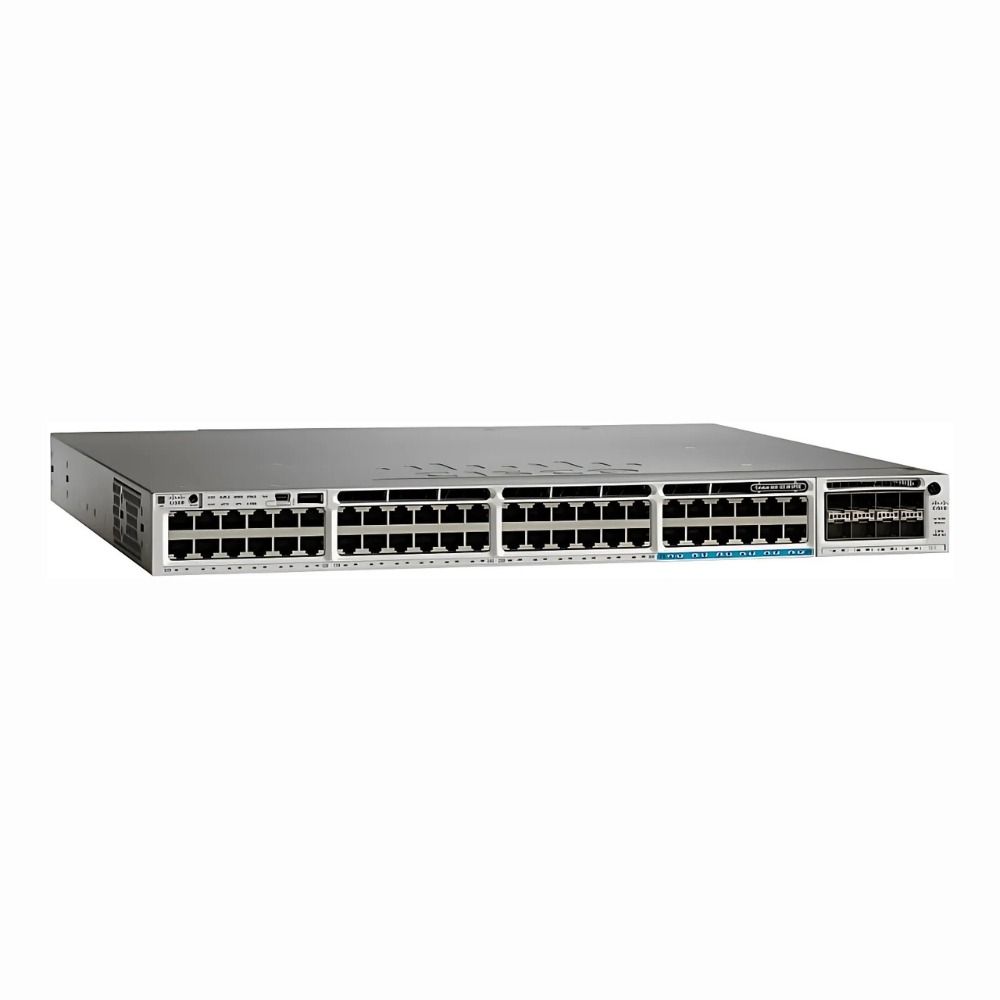

The Cisco Catalyst 3850 Series switch combines extensive port density with Layer 3 routing and stackable flexibility, supporting the needs of growing enterprise networks. It fits well in network cores or aggregation layers, handling both data traffic and device power requirements efficiently. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3850-12X48UW-S |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10GBase-T, RJ-45, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T,10GBase-T |
| UpLink Ports | 12 x 10GBase-T (RJ-45) |
| POE Support | PoE++ |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI, Web GUI, SNMP, SSH, Telnet, Console (RJ-45), USB |
| Management Type | Local and Remote (CLI, SNMP, Web) |
| Remote Management Protocol | SNMPv2c,SNMPv3,SSH,Telnet,HTTP,HTTPS,NETCONF |
| Routing Protocol | Static,RIP,OSPF,EIGRP,BGP |
| Power & Cooling | |
|---|---|
| Fans | Variable speed, field-replaceable fans (4) |
| Power | 1100W (UPOE capable, typical PSU configuration) |
| Power Supply | 1100W AC (default) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.5 in (H x W x D) |
| Weight | 5.00 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X |
| Product Description |
|---|
The Cisco Catalyst 3850 Series switch is designed for enterprise networks requiring versatile connectivity and strong Layer 3 routing features. It is often found in environments where high-density ports and power over Ethernet are essential, such as office buildings and campus networks. Built for IT teams managing complex infrastructures, this switch integrates network access and routing in one device, simplifying management and improving efficiency. Its stackable capability means it can grow with the network as demands increase. Key Features
In practical use, this switch is commonly deployed in mid to large enterprise networks where reliable connectivity and power delivery are vital. It helps reduce the need for separate power supplies and adapts well to evolving network roles. |
