| Product Overview |
|---|

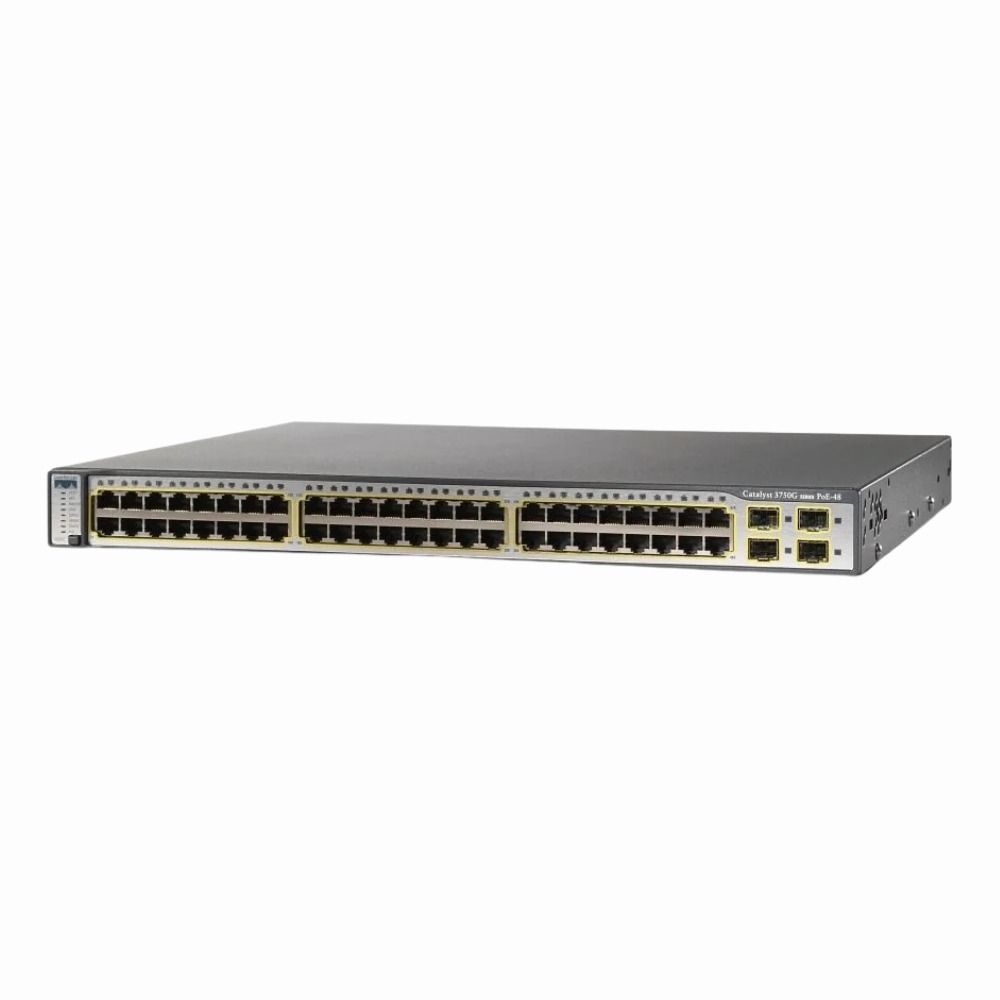

The Cisco Catalyst 3750G-48TS-S-V04 combines high-density gigabit ports with Layer 3 switching to support demanding business networks. It fits neatly in a 1U rack and offers stacking features that make network expansion straightforward. This switch is ideal for environments where both speed and manageability are priorities, bridging the gap between core and access layers in a network. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3750G-48TS-S-V04 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T,1000Base-X |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 41.7 Mpps |
| DRAM | 128 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF |
| Remote Protocols | Yes |
| Management Interfaces | Serial Console (RJ-45),USB Console,Web (HTTP/HTTPS),CLI (SSH/Telnet),SNMP |
| Remote Management Protocol | SNMP,HTTP,HTTPS,SSH,Telnet,RMON |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.3x |
| Product Description |
|---|
The Cisco Catalyst 3750G-48TS-S-V04 is a robust gigabit Ethernet switch designed for enterprise-level networking. It offers a combination of high port density and integrated Layer 3 features, making it suitable for complex network environments demanding both switching and routing. Often found in data centers and large office networks, this switch is built to provide reliable connectivity and manage traffic efficiently. Network administrators and IT professionals benefit from its stacking capabilities, which simplify management and expand network capacity without additional complexity. Key Features
This switch is typically deployed in environments requiring scalable, high-performance network infrastructure such as enterprise campuses and server rooms. Its stackable design allows organizations to grow their network without disrupting operations, while the integrated routing features help optimize internal data flow. |
