| Product Overview |
|---|

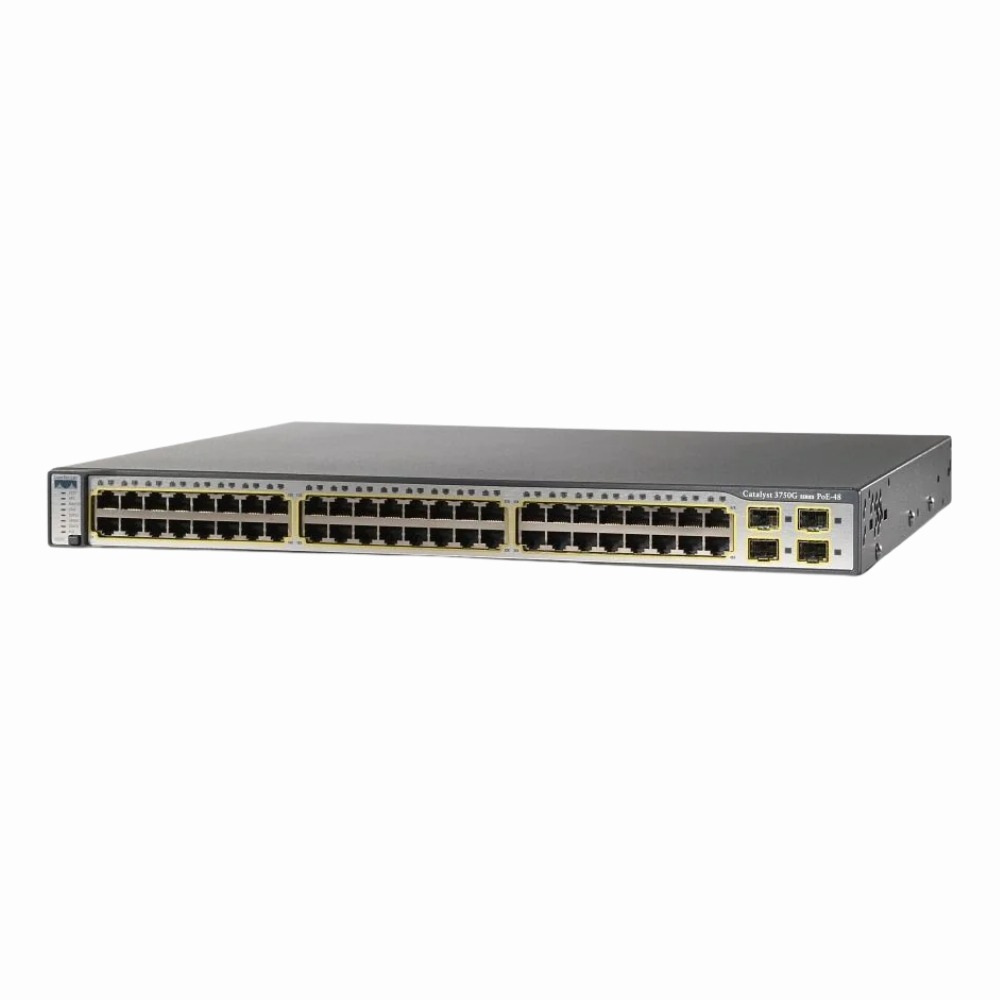

The Cisco Catalyst 3750G-48PS is a versatile Layer 3 network switch that provides 48 PoE-enabled Gigabit Ethernet ports along with four fiber uplinks. It fits well in enterprise settings requiring both power and data transmission through a single hardware platform. The stackable design lets organizations grow their network smoothly, and its routing abilities help manage traffic efficiently across different segments. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3750G-48PS-S-V06 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP |
| POE Support | PoE |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 77.37 Mpps |
| DRAM | 128 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 (up to 4094 VLANs) |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, HSRP, IGMP, Policy-Based Routing (PBR) |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45), USB Console, Telnet, SSH, SNMP, RMON |
| Security | 802.1X, Access Control Lists (ACLs), Port Security |
| Remote Management Protocol | SSH, Telnet, SNMP v1/v2c/v3, HTTP/HTTPS |
| Routing Protocol | Static,RIP,OSPF,HSRP,VRRP |
| Power & Cooling | |
|---|---|
| Power | AC 100-240V; 370W PoE budget |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.5 in (4.4 x 44.5 x 44.5 cm) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1X |
| Product Description |
|---|
The Cisco Catalyst 3750G-48PS is a managed network switch designed to handle demanding enterprise environments. It offers Power over Ethernet (PoE) across all 48 ports, enabling connection of devices like IP phones, wireless access points, and security cameras without separate power sources. This switch is commonly used in office networks, data centers, and campus environments. Built for network administrators who need reliable performance, the 3750G-48PS supports Layer 3 routing, making it suitable for both access and distribution layers. Its stackable architecture allows multiple units to operate as a single logical switch, simplifying management and expanding capacity when needed. Key Features
This switch is typically deployed in medium to large enterprise networks where high port density and PoE support are essential. It's often found in wiring closets powering end devices while maintaining robust network performance. By combining data connectivity and power delivery, it reduces cable clutter and streamlines infrastructure. |
