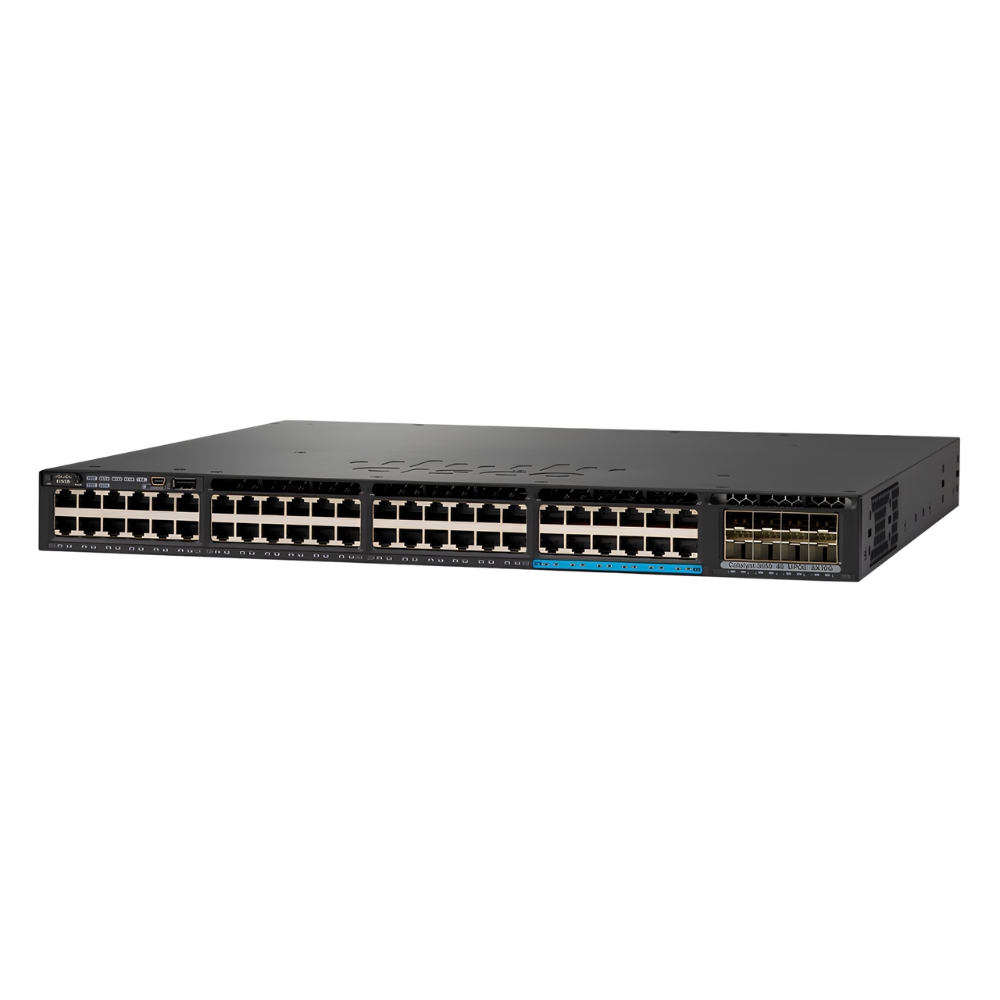

Name: WS-C3650-48FQM-S Cisco Catalyst 3650 48-Port L3 Managed Switch
Brand: Cisco
SKU: WS-C3650-48FQM-S
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The Cisco Catalyst 3650 48-Port Managed L3 Switch provides 48 1G PoE+ ports along with 4 10G SFP+ uplinks, enabling both network connectivity and power delivery. It supports Layer 3 routing functions suitable for enterprise access layer deployments. The 775W PoE power budget accommodates multiple powered devices simultaneously.

General Information
Brand	Cisco
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T,10G SFP+
UpLink Ports	4x10G SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	95.2 Mpps
DRAM	4 GB
Flash Memory	2 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps
Remote Protocols	Yes
Management Interfaces	Console (RJ-45), USB Console, Web GUI (Cisco DNA/Device Manager), CLI, SNMP, SSH
Security Features	802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, ACLs, RADIUS/TACACS+, SSH, Storm Control
Management Type	Local (CLI/GUI), Remote (SNMP/SSH/HTTPS)
Security	802.1X,RADIUS,TACACS+
Remote Management Protocol	SNMP,SSH,HTTPS
Routing Protocol	Static,RIP,OSPF,EIGRP

Power & Cooling
Fans	Variable-speed internal fans, front-to-back airflow, redundant
Power	775W (PoE budget)
Power Supply	Internal AC power supply (100-240 VAC)

Physical Characteristics
Dimensions	1.73 x 17.5 x 17.9 in
Weight	3.00
Operating Temperature	0 to 40°C (32 to 104°F)

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.3af, IEEE 802.3at

Product Description
The Cisco Catalyst 3650 48-Port Managed Layer 3 Switch is designed to provide robust network connectivity with high port density and Power over Ethernet Plus (PoE+) capabilities. It is commonly deployed in enterprise campus environments requiring advanced switching and routing functionalities combined with power delivery over the network ports. This switch supports 48 1 Gigabit Ethernet ports that deliver PoE+ power to network devices such as IP phones, wireless access points, and security cameras. Additionally, four 10 Gigabit SFP+ uplink ports enable high-bandwidth connections to aggregation or core layers of the network. Targeted at network administrators and IT professionals, the WS-C3650-48FQM-S enables flexible network designs that integrate data, voice, and video traffic with Layer 3 routing protocols. It is suitable for enterprise access layer deployments that require managed network infrastructure. Key Features 48 x 1G PoE+ ports providing data and power over Ethernet 4 x 10G SFP+ uplinks for enhanced throughput and aggregation Layer 3 functionality supporting advanced routing protocols 775W PoE power budget to support multiple powered devices Managed switch with configuration and monitoring capabilities This switch plays a critical role in enterprise network access layers, offering both connectivity and power to end devices while supporting routing functions to segment and manage traffic efficiently. Its integration of PoE+ and 10GbE uplinks makes it adaptable for environments with growing bandwidth and power needs.

Use Cases
This switch is typically used in enterprise campus access networks where there is a need to connect and power a variety of devices such as IP phones, wireless access points, and security cameras. It suits environments requiring managed Layer 3 switching and high-speed uplinks for aggregation. How It's Used: Connecting VoIP phones and providing PoE+ power in office buildings Supporting wireless access points in enterprise WLAN deployments Aggregating access layer traffic via 10GbE SFP+ uplinks to core switches Implementing Layer 3 routing policies within campus networks Powering security cameras and other powered endpoints over Ethernet The switch serves as a foundation for scalable and manageable campus networks, combining data switching, power delivery, and routing capabilities. It enables network administrators to efficiently manage network traffic and device connectivity in a centralized manner.

FAQ's
What is the PoE power budget of the WS-C3650-48FQM-S? The switch provides a total Power over Ethernet budget of 775 watts to power connected PoE+ devices across its 48 ports. How many 10G uplink ports does this Cisco switch have? It features four 10 Gigabit SFP+ uplink ports for high-speed connections to aggregation or core network layers. Does the switch support Layer 3 routing? Yes, the WS-C3650-48FQM-S is a managed Layer 3 switch that supports advanced routing protocols and features. What type of Ethernet ports are available on this model? The switch has 48 1 Gigabit Ethernet ports that also provide PoE+ to power compatible devices. Who typically uses the Cisco Catalyst 3650 48-Port switch? This switch is used by network administrators in enterprise campus environments requiring managed Layer 3 access switching with PoE capabilities. Is this switch suitable for powering wireless access points? Yes, its PoE+ ports deliver power to wireless access points along with data connectivity.
