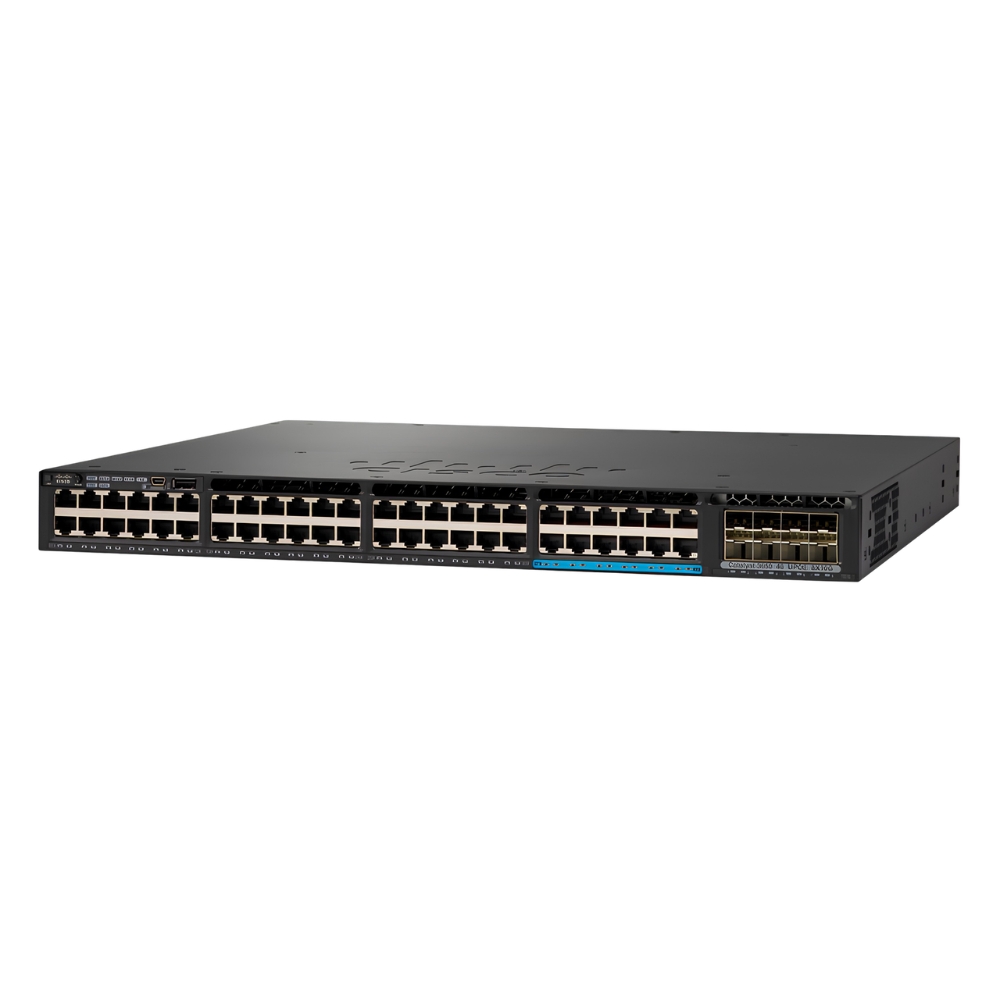

Name: WS-C3650-48FQ-S Cisco Catalyst 3650 48-Port PoE+ L3 Managed Switch
Brand: Cisco
SKU: WS-C3650-48FQ-S
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The Cisco Catalyst 3650 48-Port PoE+ Managed L3 Switch delivers 48 PoE+ enabled Gigabit Ethernet ports with Layer 3 switching capabilities. It supports advanced routing, network management, and security features, fitting into enterprise and campus environments as part of the Cisco Catalyst 3650 series infrastructure.

General Information
Brand	Cisco
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	1000Base-X, 10G SFP+, USB Console, Serial Console (RJ-45)
Port Speed	1G,10G
UpLink Ports	4 x 10G SFP+
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	95.23 Mpps
DRAM	4 GB
Flash Memory	2 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP,SFP+,Serial Console (RJ-45),USB

Performance
Latency	Approximately 2 microseconds (64-byte frames)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Console (RJ-45), USB Console, SSH, Telnet, SNMP (v1/v2/v3), Web GUI, RMON, Cisco Prime
Security Features	IEEE 802.1X, MAC address filtering, DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard, ACLs, SSH, RADIUS, TACACS+
Management Type	CLI, Web UI, SNMP, Cisco Prime
Security	Yes
Remote Management Protocol	SSH, Telnet, HTTP/HTTPS, SNMPv1/v2/v3
Routing Protocol	Static,RIP,RIPng,OSPF,OSPFv3,EIGRP,BGP,VRRP,HSRP,GLBP,PIM-SM,IGMP

Power & Cooling
Fans	Yes (internal, field-replaceable, variable-speed)
Power	AC 100-240V, 50-60Hz
Power Supply	Internal fixed AC power supply (100-240VAC)

Physical Characteristics
Dimensions	1.73 x 17.5 x 18.9 in (H x W x D)
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1x, IEEE 802.3x

Product Description
The Cisco Catalyst 3650 48-Port PoE+ Managed L3 Switch (WS-C3650-48FQ-S) is a network switch that integrates high-density Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) capabilities. It is designed to support demanding enterprise and campus networks by providing advanced Layer 3 routing and comprehensive management features. This switch is typically deployed in environments where combining data and power over a single cable is needed, such as connecting IP phones, wireless access points, and other powered devices. Network administrators benefit from its robust feature set for managing data traffic efficiently and securely. Key Features 48 Gigabit Ethernet ports with PoE+ support for powered devices Layer 3 switching capabilities for routing and network segmentation Advanced network management and security features Integration within the Cisco Catalyst 3650 series for consistent operation Designed for scalable enterprise and campus network infrastructure This switch facilitates streamlined network infrastructure by consolidating switching, routing, and power delivery in a single device. It is suitable for organizations looking to deploy or expand medium to large-scale networks with managed Layer 3 capabilities and device power needs.

Use Cases
This switch is commonly used in enterprise campus networks and medium to large office environments that require both data connectivity and device power through PoE+. It supports workloads involving IP telephony, wireless access, and data segmentation across multiple network segments. How It's Used: Providing network access and power to IP phones and wireless access points in office buildings Layer 3 routing for internal network segmentation and traffic management Integrating into existing Cisco Catalyst 3650 deployments for consistent network operations Supporting security and management policies in managed enterprise networks Connecting endpoints in campus networks requiring high port density and PoE+ Overall, this switch serves as a core component for building scalable and manageable network infrastructures where combining data and power delivery is essential. It supports network segmentation and routing to optimize operational workflows.

FAQ's
What does the WS-C3650-48FQ-S model number indicate? The WS-C3650-48FQ-S is a Cisco Catalyst 3650 series switch with 48 Gigabit Ethernet ports and enhanced features, including PoE+ support and Layer 3 capabilities. Can this switch provide power to connected devices? Yes, it supports Power over Ethernet Plus (PoE+), allowing it to supply power to compatible devices like IP phones and wireless access points through its Ethernet ports. What kind of network environments is this switch suited for? This switch is suited for enterprise and campus network environments requiring managed Layer 3 switching with PoE+ capabilities to support various powered endpoints. Does the WS-C3650-48FQ-S support Layer 3 routing? Yes, it includes Layer 3 features such as routing protocols and network segmentation to manage traffic effectively across different VLANs. Is the WS-C3650-48FQ-S compatible with other Cisco Catalyst 3650 series devices? Yes, it is designed to integrate within Cisco Catalyst 3650 deployments, ensuring consistent operation and management across devices in the series. What management features are available on this switch? The switch provides advanced network management options, including configuration for routing, security policies, and monitoring, suitable for managed enterprise networks.
