| Product Overview |
|---|

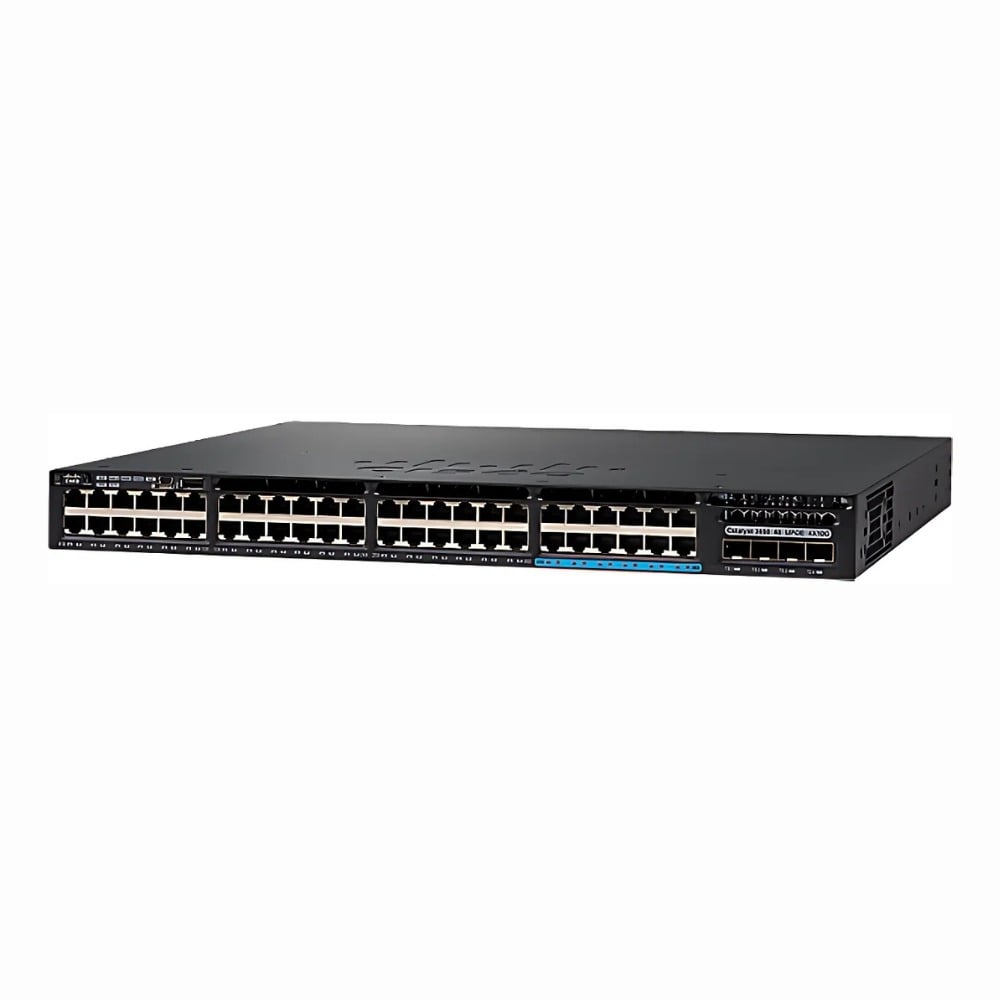

The Cisco Catalyst 3650-48FD-S combines high-density Gigabit Ethernet ports with PoE+ capabilities and advanced Layer 3 features, making it a versatile choice for enterprise networks. It fits well in environments that need both reliable wired connections and power delivery to devices, supporting diverse networking needs in a rack-mountable package. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3650-48FD-S |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 x 10G SFP+ |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 95.2 Mpps |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| NIM Slot | 1 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45), USB Console, SSH, Telnet, HTTP/HTTPS, SNMP, RMON, NetFlow, Cisco Prime, REST API |
| Remote Management Protocol | SNMPv1/v2/v3,SSH,Telnet,HTTP/HTTPS,RESTCONF |
| Routing Protocol | Static,RIP,OSPF,OSPFv3,EIGRP,BGP,VRRP,HSRP,PIM-SM |
| Power & Cooling | |
|---|---|
| Fans | 2 (field-replaceable, front-to-back airflow) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.6 in |
| Weight | 5.00 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Cisco Catalyst 3650-48FD-S is a robust network switch designed to handle demanding enterprise environments. It offers 48 high-speed Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) to power devices like IP phones, wireless access points, and other connected gear directly through the network cable. This switch is commonly used in medium to large-sized networks where reliable wired and wireless access is critical. Built for network professionals managing complex infrastructure, the Catalyst 3650 integrates advanced Layer 3 routing features to simplify network segmentation and traffic management. It's often found in wiring closets or data centers, serving as a backbone switch to maintain high performance and uptime. Key Features
This switch is typically deployed in enterprise office networks, campus backbones, and data centers where both high port density and advanced routing matter. It plays a key role in connecting various segments of a network while providing power to edge devices without additional cabling. Its reliability and performance help maintain smooth communication across the organization. |
