| Product Overview |
|---|

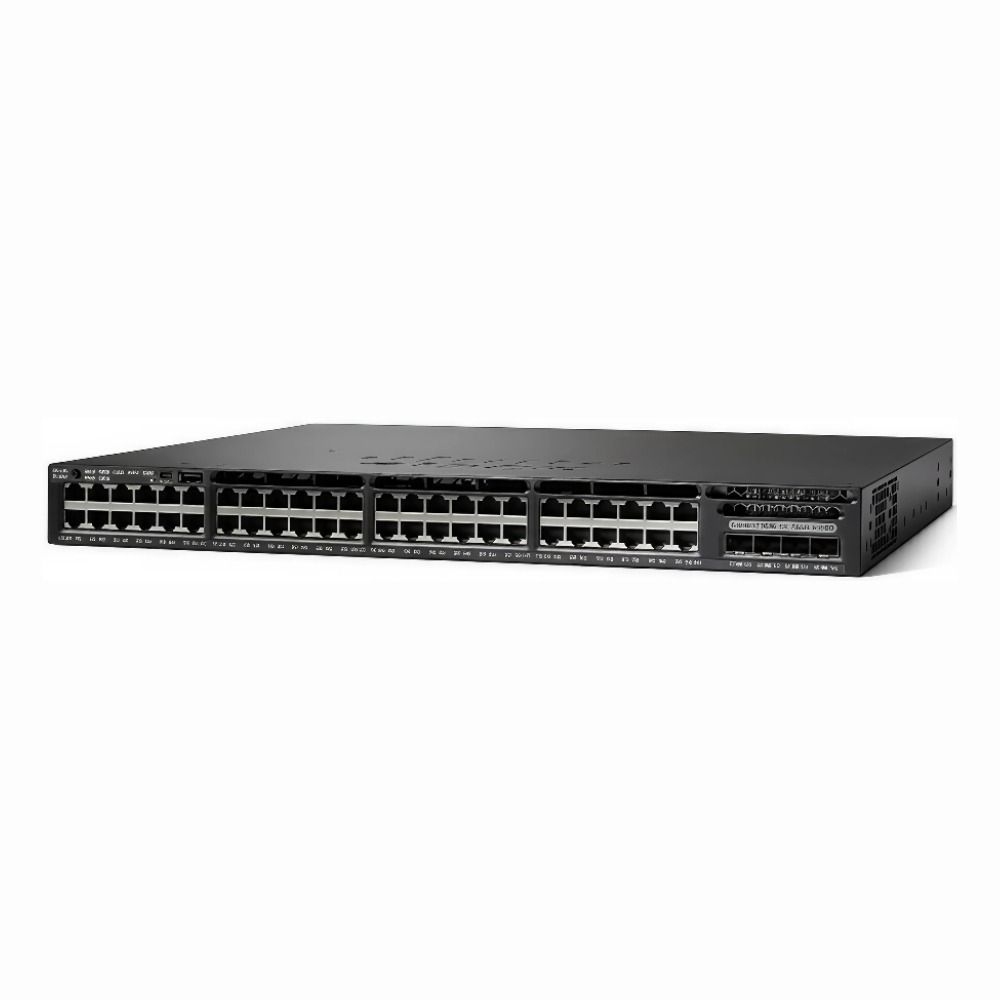

The Cisco Catalyst 3650-48FD-L is a versatile, high-capacity switch crafted to support enterprise networks requiring both power and advanced connectivity options. It fits well within network cores or distribution layers where stacking and expansion capabilities help maintain scalable and manageable infrastructures. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3650-48FD-L |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| POE Support | PoE+ |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| NIM Slot | 2 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Type | In-band and Out-of-band (console & Ethernet) |
| Security | 802.1X,ACLs,Port Security |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMPv2/SNMPv3,NETCONF/RESTCONF (IOS XE) |
| Routing Protocol | Static,OSPF,EIGRP,BGP,RIPv2,VRRP,HSRP,GLBP,PIM (depending on license and configuration) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 18.9 inches |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Cisco Catalyst 3650-48FD-L is a robust network switch designed to handle demanding enterprise environments. Often found in medium to large office networks, it offers power-over-Ethernet (PoE+) support to power devices such as IP phones, wireless access points, and security cameras directly through the network cable. Built for scalability, the switch can be stacked with other units to act as a single logical device, simplifying network management. Network administrators and IT professionals benefit from its flexible configuration options and reliable performance. It's commonly deployed in corporate LANs, data centers, and campus networks where both high port density and advanced routing are necessary. Key Features
This switch is typically deployed in environments where multiple powered devices need reliable network connections and centralized control. Its features help streamline infrastructure while supporting growing network demands without significant complexity. You'll often see it in IT closets and wiring rooms powering and connecting numerous endpoints efficiently. |
