| Product Overview |
|---|

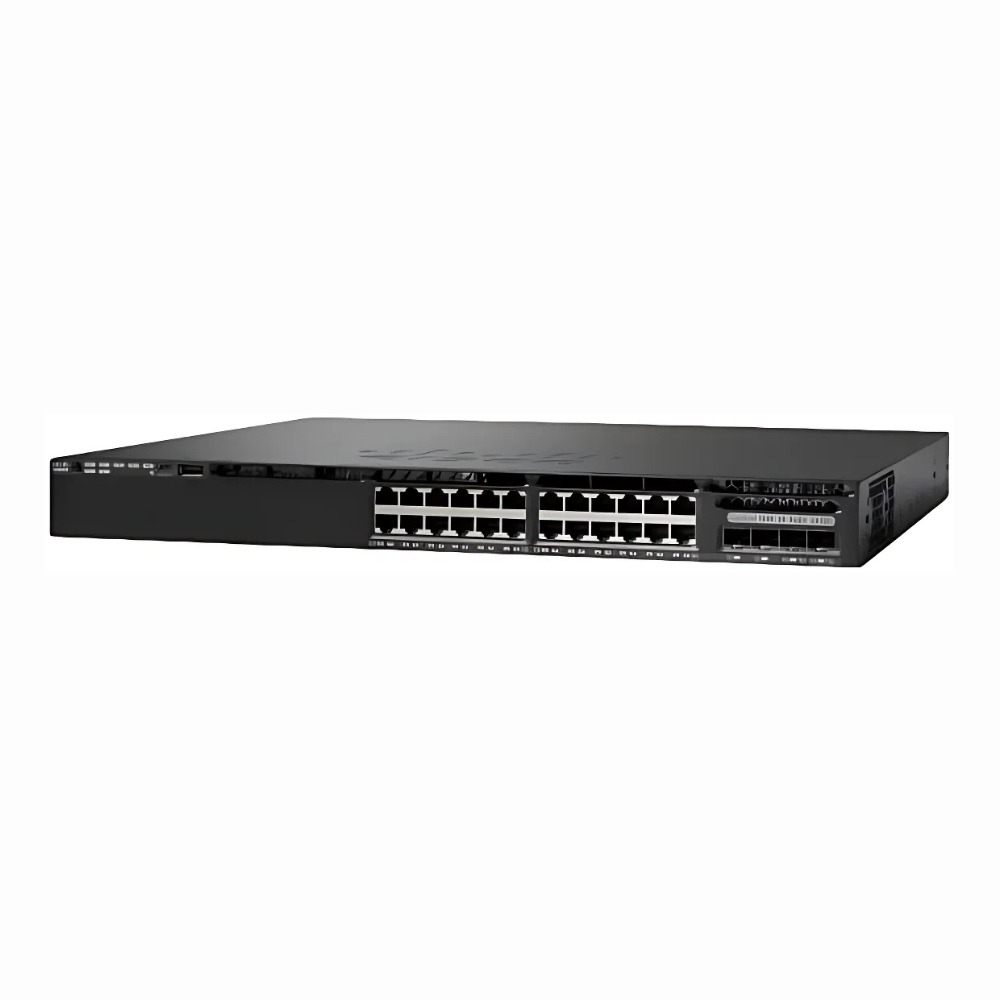

The Cisco Catalyst 3650-24PS switch offers a balanced mix of power and flexibility, delivering PoE+ support alongside Layer 3 routing in a rack-mount design. It fits well in enterprise networks that require reliable connectivity and efficient device powering, serving as a versatile backbone for data and voice traffic management. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3650-24PS-L |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, VRRP, HSRP, PIM-SM, IGMP, MLD |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45),USB Console,Web (HTTP/HTTPS),CLI (SSH/Telnet),SNMP |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMP |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
| Product Description |
|---|
The Cisco Catalyst 3650-24PS is a robust Layer 3 switch designed for enterprise networking needs. It handles both data and power delivery over Ethernet, making it ideal for environments that require PoE for devices such as IP phones, wireless access points, and security cameras. Often found in medium to large business networks, this switch supports complex routing and switching functions, which network administrators rely on to maintain smooth communication between devices and network segments. Key Features
This switch is typically deployed in enterprise wiring closets or network rooms where high port density and power delivery are required. It helps streamline network layout by reducing the need for separate power supplies for connected devices. By combining both switching and routing capabilities, the Cisco Catalyst 3650-24PS enables efficient traffic handling and management, making it a dependable choice for organizations aiming to improve network performance without adding complexity. |
| Use Cases |
|---|
The Cisco Catalyst 3650-24PS switch is primarily deployed in mid-sized enterprise networks and branch offices where integrated power over Ethernet is critical. It suits environments that require consolidated data and voice traffic management with scalable, high-performance Layer 3 routing capabilities in a compact rack-mounted form factor. How It's Used:
By combining PoE+ and advanced Layer 3 features, this switch enhances operational efficiency in environments demanding scalable, unified network services. Its rack-mount design and flexible connectivity options support evolving network topologies with minimal disruption. |
