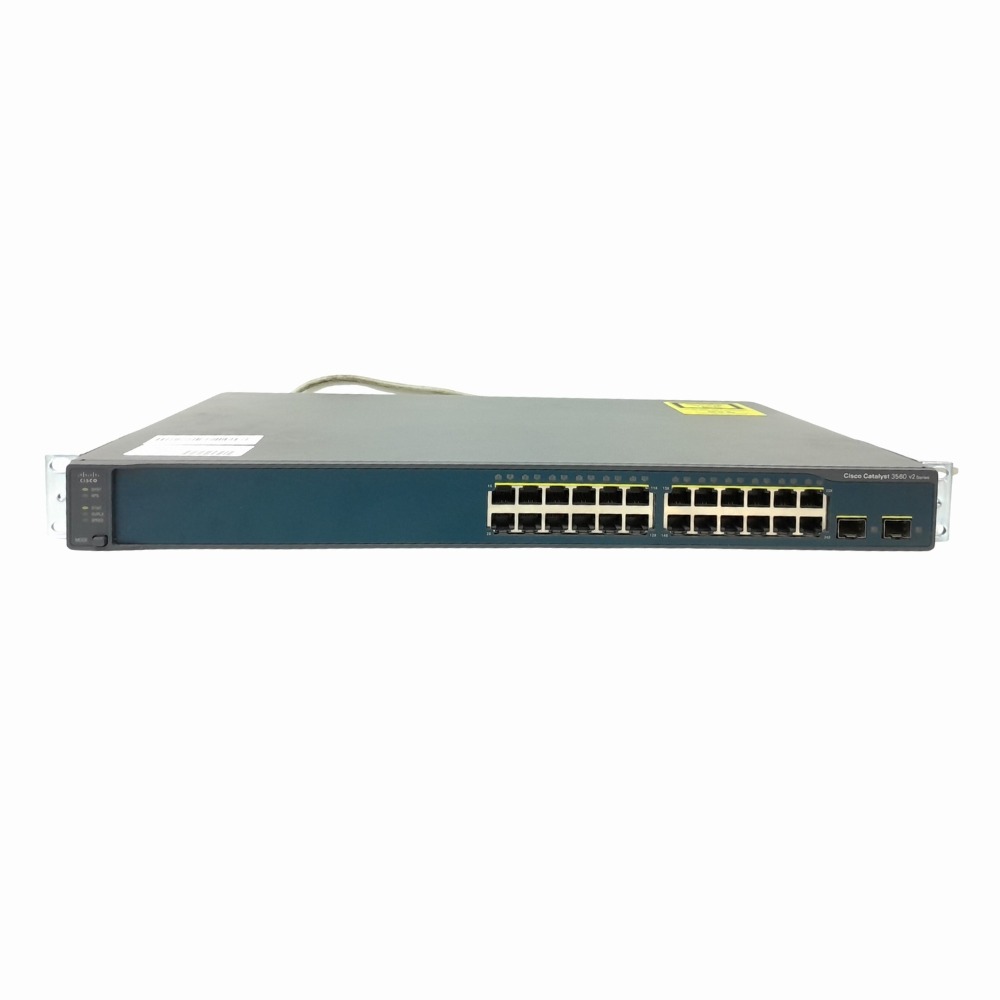

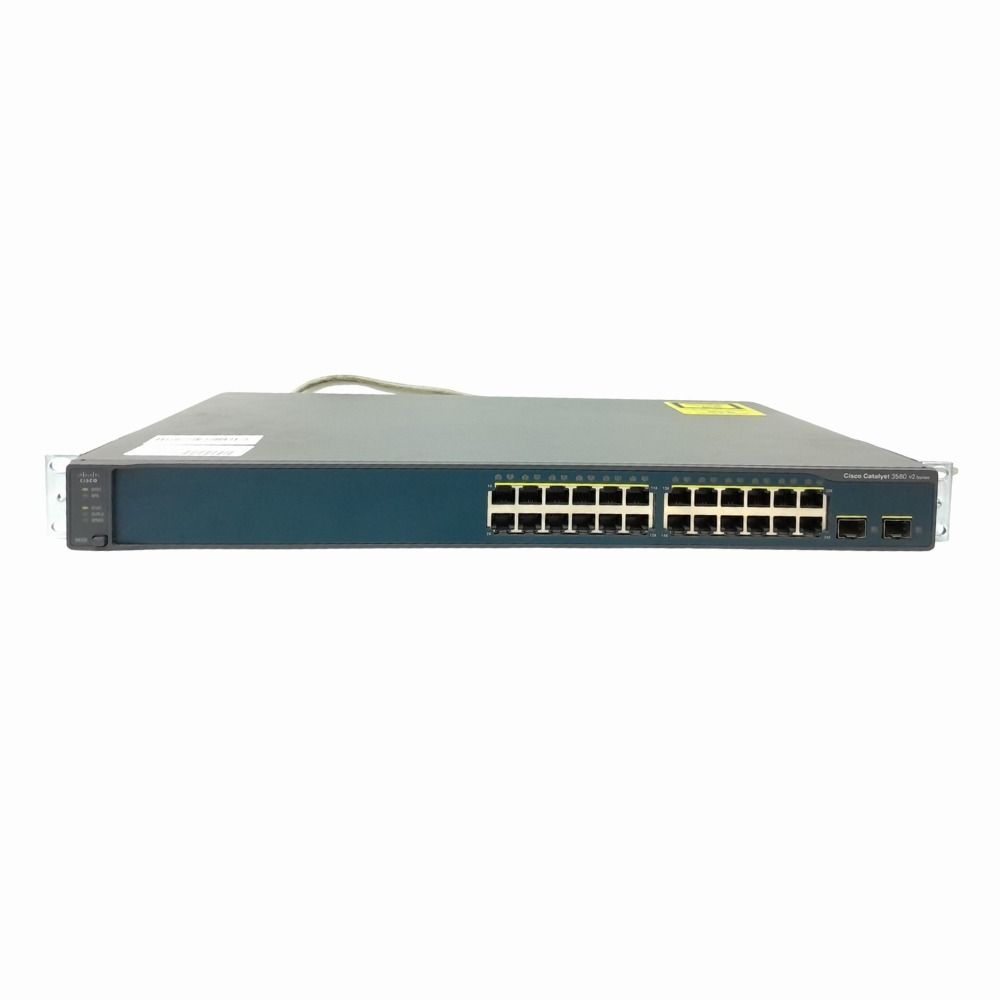

Name: WS-C3560V2-24TS-S Cisco Catalyst 3560V2 Series 3560V2-24T 24 x RJ-45 Ports 10/100Base-TX + 2 x SFP Ports Layer 3 Managed Rack-mountable Fast Ethernet Network Switch
Brand: Cisco
SKU: WS-C3560V2-24TS-S
Price: 109.00 USD
Availability: InStock
Rating: 4.8 (130 reviews)

Product Overview
The Cisco Catalyst 3560V2-24TS-S is a compact Layer 3 switch designed for small to medium-sized networks. It provides a balance of fast Ethernet ports and fiber uplinks, fitting well in rack-mounted setups where space and connectivity flexibility are both needed.

General Information
Brand	Cisco
Part Number	WS-C3560V2-24TS-S
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100Base-TX, SFP, Serial Console (RJ-45)
Port Speed	10/100Base-TX
UpLink Ports	2 x SFP
POE Support	No
Switching Capacity	8.8 Gbps
Switch Forwarding Rate	17.2 Mpps
DRAM	128 MB
Flash Memory	32 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, HSRP, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (Console/SSH/Telnet),Web GUI (HTTP/HTTPS),SNMP
Security Features	802.1X,ACLs,Port Security,SSH,RADIUS,TACACS+
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS,RMON

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.1p,IEEE 802.1q,IEEE 802.1D,IEEE 802.1w

Product Description
The Cisco Catalyst 3560V2-24TS-S is a managed Fast Ethernet switch that combines 24 copper ports with 2 fiber uplink options. It's commonly found in enterprise networks where both security and performance are necessary for daily operations. This switch is built for network administrators who need robust Layer 3 features alongside straightforward port management. Key Features Offers static and dynamic routing to improve internal network traffic flow Supports QoS to prioritize critical data transmissions Includes energy-efficient Ethernet to reduce power consumption Allows network segmentation through VLAN support Equipped with security features like port security and access control lists These switches are typically deployed in business environments that require reliable wired connections for workstations, servers, and VoIP phones. Their ability to manage traffic efficiently helps maintain smooth communication and data exchange across the network.

Use Cases
The Cisco Catalyst 3560V2-24TS-S is commonly deployed in small to medium-sized business networks requiring robust Layer 3 switching capabilities. It is particularly suited for environments where cost-effective fast Ethernet connectivity and flexible fiber uplinks are essential to support diverse connectivity needs in a compact rack-mounted form factor. How It's Used: Providing network segmentation and routing within SMB office environments to enhance traffic management and security. Serving as an access layer switch in campus networks, connecting wired endpoints while uplinking to core switches via fiber. Supporting edge computing deployments where reliable fast Ethernet ports and fiber uplinks enable efficient data aggregation and distribution. Facilitating remote branch office networking by aggregating local device connections and routing traffic to central data centers. Integrating with virtualization environments to isolate traffic flows and maintain network performance across multiple virtualized workloads. This switch enables operational efficiency by combining Layer 3 routing with flexible port configurations, allowing IT teams to scale network segments without adding complexity. Its rack-mount form factor and fiber uplink options support evolving infrastructure demands while maintaining consistent performance for critical business applications.
