Product Overview |
|---|

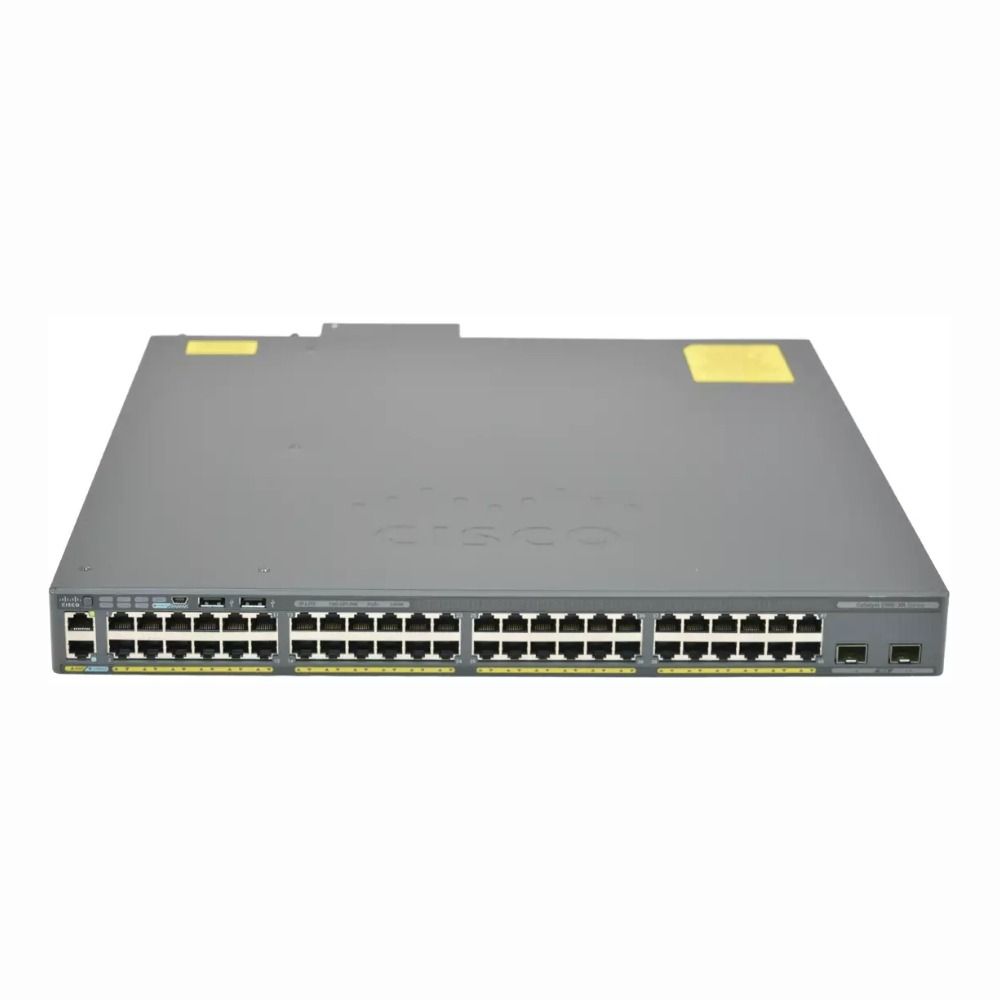

The Cisco Catalyst 2960-XR-48FPD-I is a managed gigabit switch designed to provide reliable network connectivity and power delivery in enterprise settings. It fits into network infrastructures requiring multiple PoE+ ports along with advanced Layer 3 routing capabilities, making it suitable for access layer deployments that connect numerous endpoints and support evolving network demands. |
General Information |
|
|---|---|
| Brand | Cisco |
| Part Number | WS-C2960XR-48FPD-I |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 2 x 10G SFP+ |
| POE Support | PoE+ |
| Switching Capacity | 216 Gbps |
| Switch Forwarding Rate | 95.2 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, VRRP, HSRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45), USB, CLI (SSH/Telnet), Web UI (Cisco Network Assistant), SNMP, RMON |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMPv1/v2c/v3 |
| Routing Protocol | Static |
Power & Cooling |
|
|---|---|
| Fans | 1 (field-replaceable) |
| Power | AC 100-240V, 50-60Hz; PoE budget up to 740W |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.73 x 17.5 x 15.5 in (H x W x D) |
| Weight | 5.00 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
Miscellaneous |
|
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x |
Product Description |
|---|
The Cisco Catalyst 2960-XR Series switch provides a robust solution for enterprise networks requiring reliable, high-speed connectivity with power over Ethernet. Built for medium to large-scale deployments, this switch combines 48 Gigabit Ethernet ports capable of delivering PoE+ to power devices like IP phones and wireless access points. Often found in wiring closets of businesses and campus environments, it supports advanced Layer 3 features, allowing network administrators to manage routing and improve traffic efficiency within the network. IT professionals who need a dependable and scalable switch benefit from its straightforward management and flexible port options. Key Features
This switch is typically deployed in enterprise access networks where reliable connectivity and device powering are essential. It plays a key role in environments that demand both high throughput and efficient management of network traffic, supporting a wide range of business applications and services. |
Use Cases |
|---|
The Cisco Catalyst 2960-XR-48FPD-I is commonly deployed in enterprise network access layers where dense PoE+ connectivity and advanced routing are essential. It serves organizations that require robust power delivery to endpoints like IP phones and wireless access points, alongside scalable network segmentation and routing capabilities. How It's Used:
This switch enhances operational efficiency by consolidating power and data into a single infrastructure, while its Layer 3 features support scalable network design and improved traffic management. It aligns well with enterprises aiming for streamlined network operations without sacrificing performance or flexibility. |
