| Product Overview |
|---|

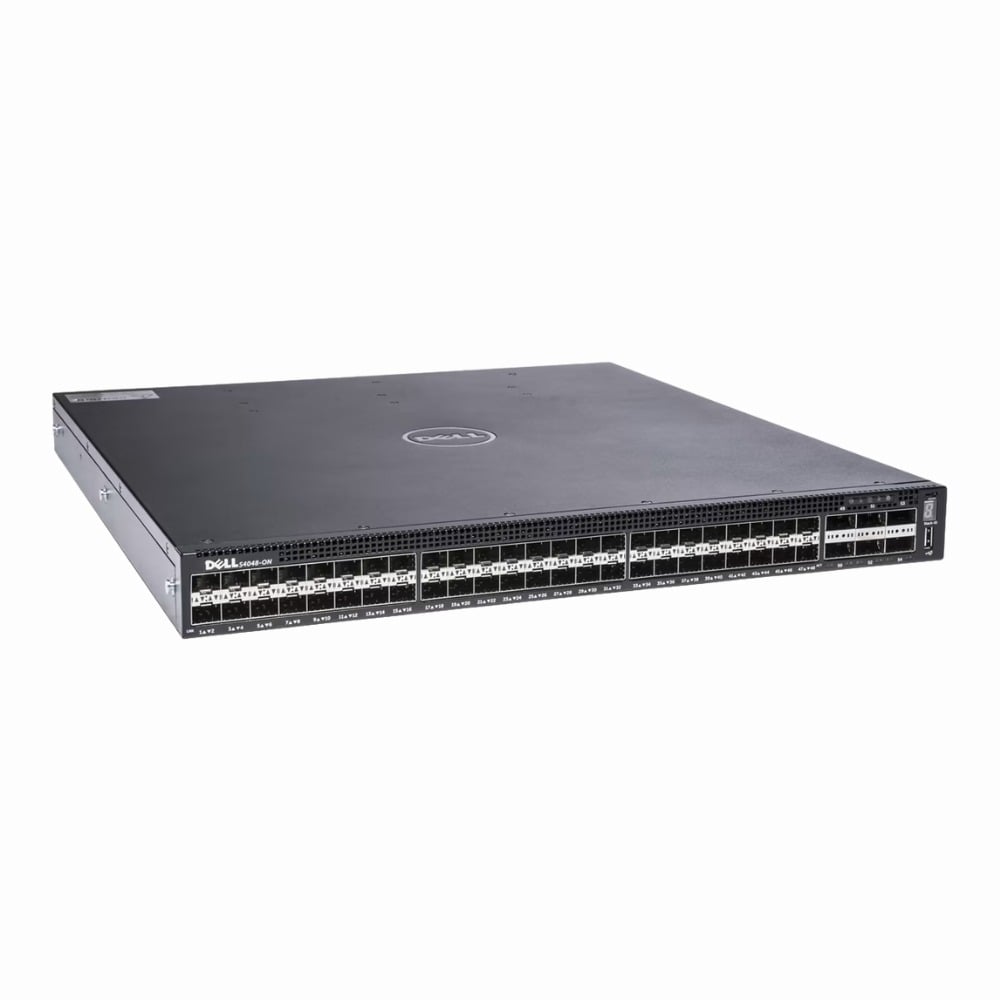

The Dell PowerSwitch S4048-ON is a Layer 3 managed network switch offering 48 SFP+ ports for 10Gbps connections and 6 QSFP+ ports for 40Gbps uplinks or stacking. It’s designed for data centers and enterprise networks needing high-speed, flexible networking in a 1U rack-mountable package. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | TK747 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 54-Ports |
| Port Type | 10G SFP+, 40G QSFP+ |
| Port Speed | 10 Gbps |
| UpLink Ports | 6 |
| POE Support | No |
| Switching Capacity | 1.44 Tbps |
| Switch Forwarding Rate | 2812.5 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Security Features | 802.1X,ACLs,Port Security,RADIUS,TACACS+,SSH,Storm Control,BPDU Guard,ARP Inspection |
| Remote Management Protocol | SSH,Telnet,HTTP/HTTPS,SNMPv1/v2/v3,RMON |
| Power & Cooling | |
|---|---|
| Fans | 3 (hot-swappable fan modules) |
| Power | AC 100-240V, 50-60Hz (supports redundant PSUs) |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3,IEEE 802.3ad (LACP),IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.3ae |
| Product Description |
|---|
The Dell PowerSwitch S4048-ON is a robust Layer 3 managed switch designed to handle demanding network traffic with its 48 high-speed SFP+ ports and 6 QSFP+ ports. It supports 10GBase-X connections, making it a strong fit for environments needing reliable and fast data exchange. Often found in data centers and enterprise networks, this switch is built to provide scalable and efficient network switching. Network administrators and IT professionals benefit from its comprehensive management features and flexible port configurations. Key Features
This switch is commonly deployed in data centers and enterprise access layers where high throughput and low latency are important. It helps maintain smooth network operations by efficiently routing and managing traffic across multiple devices. The PowerSwitch S4048-ON fits well into infrastructures requiring scalable bandwidth and reliable connectivity without compromising rack space or power efficiency. |
