| Product Overview |
|---|

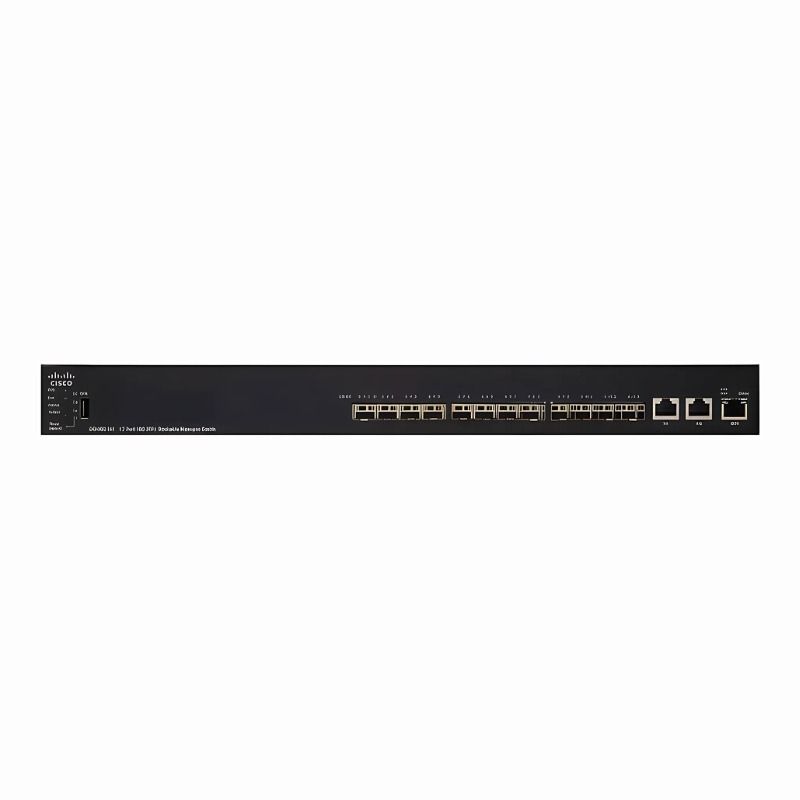

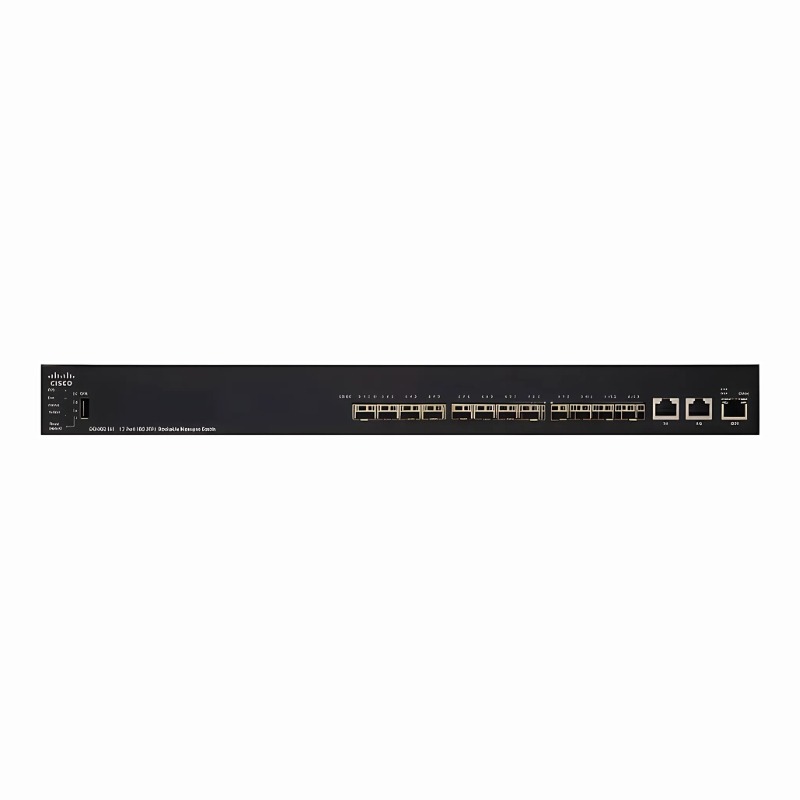

The Cisco Series 550X 12-port switch combines 10GBase-T and SFP+ connectivity to support fast, flexible network setups. It fits well in environments where solid 10 Gigabit speeds are needed without extensive management overhead, making it a straightforward choice for growing networks that want reliable Layer 3 features in a compact rack-mount form. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | SX550X-12F-K9 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 12 |
| Number of Ports | 12-Ports |
| Port Type | 10GBase-T, Combo RJ-45/SFP, SFP+ |
| Port Speed | 10 Gbps |
| UpLink Ports | 2 |
| POE Support | No |
| Switching Capacity | 240 Gbps |
| Switch Forwarding Rate | 178.6 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | SFP+,RJ-45 (10GBase-T),Combo SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Web GUI,CLI,SNMP |
| Management Interfaces | Web (HTTPS),CLI (Console/SSH),SNMP |
| Security Features | 802.1X,Access Control Lists (ACLs),Port security,MAC-based authentication,SSH,HTTPS |
| Remote Management Protocol | HTTP,HTTPS,SSH,Telnet,SNMPv1/v2/v3 |
| Routing Protocol | Static,RIP,OSPF |
| Power & Cooling | |
|---|---|
| Fans | 2 (variable speed, front-to-back) |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, cULus |
| Product Description |
|---|
This Cisco Series 550X switch offers a mix of 10GBase-T and SFP+ ports, delivering flexibility for network uplinks and server connections. It's built for environments needing fast data transfers without the complexity of full management features. Often found in small to medium enterprise networks, data centers, or branch offices, the switch handles high-throughput demands while remaining straightforward to deploy and maintain. Network administrators and IT professionals who want Layer 3 capabilities with minimal configuration benefit from this device. Key Features
This switch is commonly deployed in server rooms or network closets where space and performance are key. By combining speed with simple management, it plays a practical role in boosting network efficiency without added complexity. |
