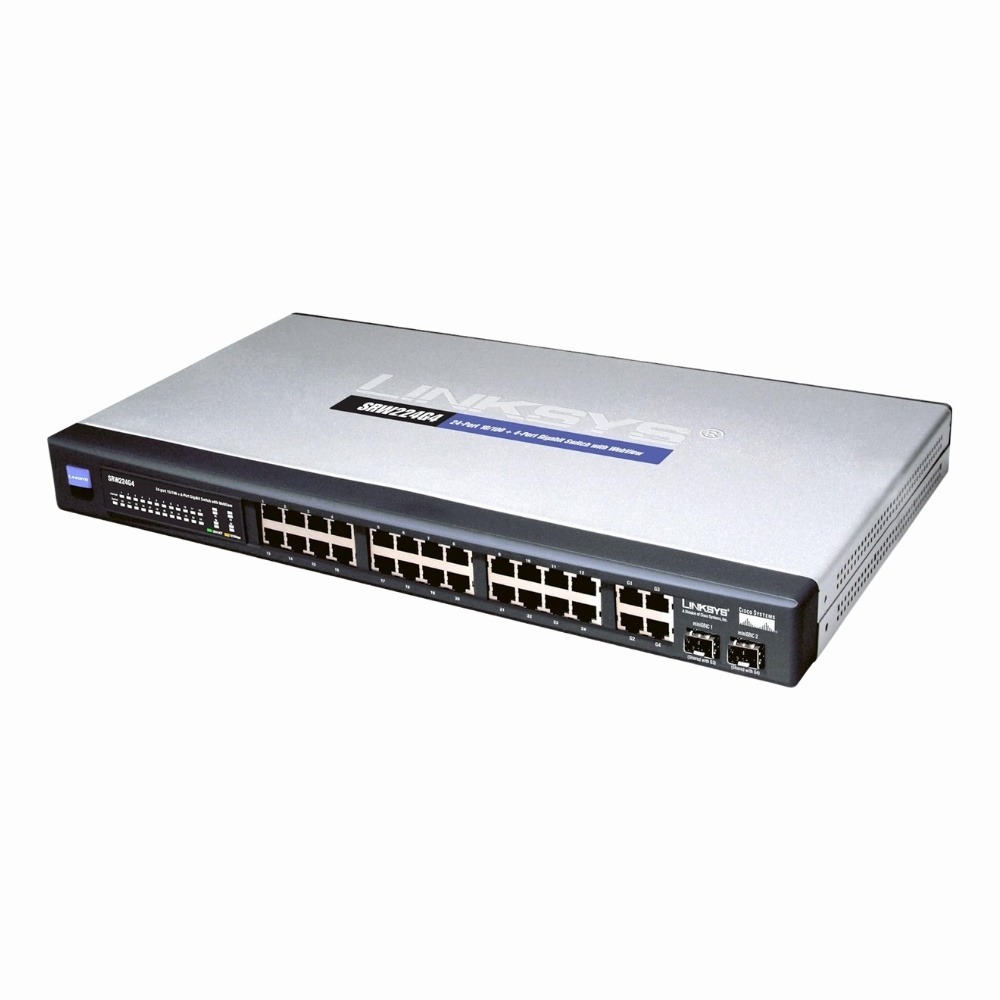

SRW224G4-SG Linksys SRW224G4 Gigabit Ethernet Switch 2 x SFP (mini-GBIC) Shared 24 x 10/100Base-TX LAN 4 x 10/100/1000Base-T Uplink

SKU:

SRW224G4-SG

Weight: 4.00 lbs
Condition: Refurbished
  • 24 ports of 10/100Base-TX for fast device connections
  • 4 Gigabit Ethernet uplink ports for high-speed network aggregation
  • 2 SFP mini-GBIC slots for flexible fiber optic connectivity
  • Managed switch offering enhanced network control
In stock

$161.00
Product Overview

The Linksys SRW224G4 Gigabit Ethernet Switch mixes 24 standard Fast Ethernet ports with 4 Gigabit uplink ports and 2 SFP slots for fiber connections. It fits well in business networks that need a blend of speed, management options, and flexible connectivity. This switch sits at the core of many small offices’ networks, balancing the demands of multiple users and devices with straightforward control features.

General Information
Brand Linksys
Part Number SRW224G4-SG
Condition Refurbished
Technical Information
Switch Ports 24 x 10/100Base-TX
Number of Ports 28-Ports
Port Type 10/100Base-TX, 10/100/1000Base-T, Combo RJ-45/SFP, SFP, USB Console, Serial Console (RJ-45)
Port Speed 10/100 Mbps,1000 Mbps
UpLink Ports 4 x 10/100/1000Base-T uplinks,2 x SFP (mini-GBIC) shared
POE Support No
Switching Capacity 12.8 Gbps
Switch Forwarding Rate 25 Mpps
DRAM 64 MB
Flash Memory 16 MB
VLAN Support Yes
Max VLANs Supported 1-4094 (supports up to 255 active VLANs)
Stackable No
Layer Support Layer 2+
Connector Type RJ-45,SFP,Console (RJ-45)
Performance
Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 8K (8192) entries
Management and Configuration
Routing Protocols Static, IGMP
Remote Protocols Yes
Management Interfaces Web GUI,Command Line Interface (CLI),SNMPv1/v2/v3,Telnet,Console (RJ-45),SSH,HTTPS
Security Features 802.1X,Access Control Lists (ACLs),Port Security,SSH/SSL,MAC filtering,Storm control
Remote Management Protocol HTTP,HTTPS,Telnet,SSH,SNMP
Routing Protocol Static
Power & Cooling
Fans Fanless
Power 100-240VAC, 50/60Hz, ~12W typical
Physical Characteristics
Dimensions 44 x 440 x 205 mm (H x W x D)
Weight 4.00
Operating Temperature 0°C to 40°C
Miscellaneous
Compliance Standards RoHS, CE, FCC, UL
Compliant Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.3x


Product Description

The Linksys SRW224G4 is a managed Ethernet switch designed to handle the networking needs of small to medium-sized businesses. It provides a mix of fast 10/100 ports and gigabit uplinks, making it suitable for environments where reliable performance and scalability are important. This switch is often found in office networks, wiring closets, or small data centers where users benefit from improved traffic management and simplified expansion.

Built for IT professionals and network administrators, the SRW224G4 supports VLANs and QoS features that help optimize traffic flow and secure sensitive data. Its two SFP slots allow fiber connections, extending the network reach beyond typical copper cabling limits.

Key Features

  • Supports 24 Fast Ethernet ports for connecting multiple devices efficiently
  • Includes 4 Gigabit uplink ports to handle backbone or server connections
  • Equipped with 2 SFP slots for fiber optic flexibility and extended range
  • Managed switch functions enable VLAN setup and traffic prioritization
  • Simple web-based interface allows for straightforward configuration and monitoring

This switch is commonly deployed in office environments where multiple desktop devices, printers, and IP phones require reliable connectivity. Its combination of copper and fiber ports means it can bridge different segments of a network without issue. Overall, it helps maintain smooth data flow and supports incremental growth without replacing existing infrastructure.


Use Cases

The SRW224G4-SG switch is well-suited for businesses looking to enhance their network infrastructure with a mix of Fast Ethernet and Gigabit connectivity options.

How It's Used:

  • Connecting office computers and printers over 10/100 Mbps Ethernet
  • Providing high-speed uplink connections to servers or core switches via Gigabit ports
  • Extending network reach with fiber optic links using SFP modules
  • Implementing VLANs to segment network traffic for security and efficiency
  • Supporting network expansion in small and medium business environments

This switch offers a reliable and flexible solution for organizations aiming to balance cost, performance, and scalability in their network setups.
