| Product Overview |
|---|

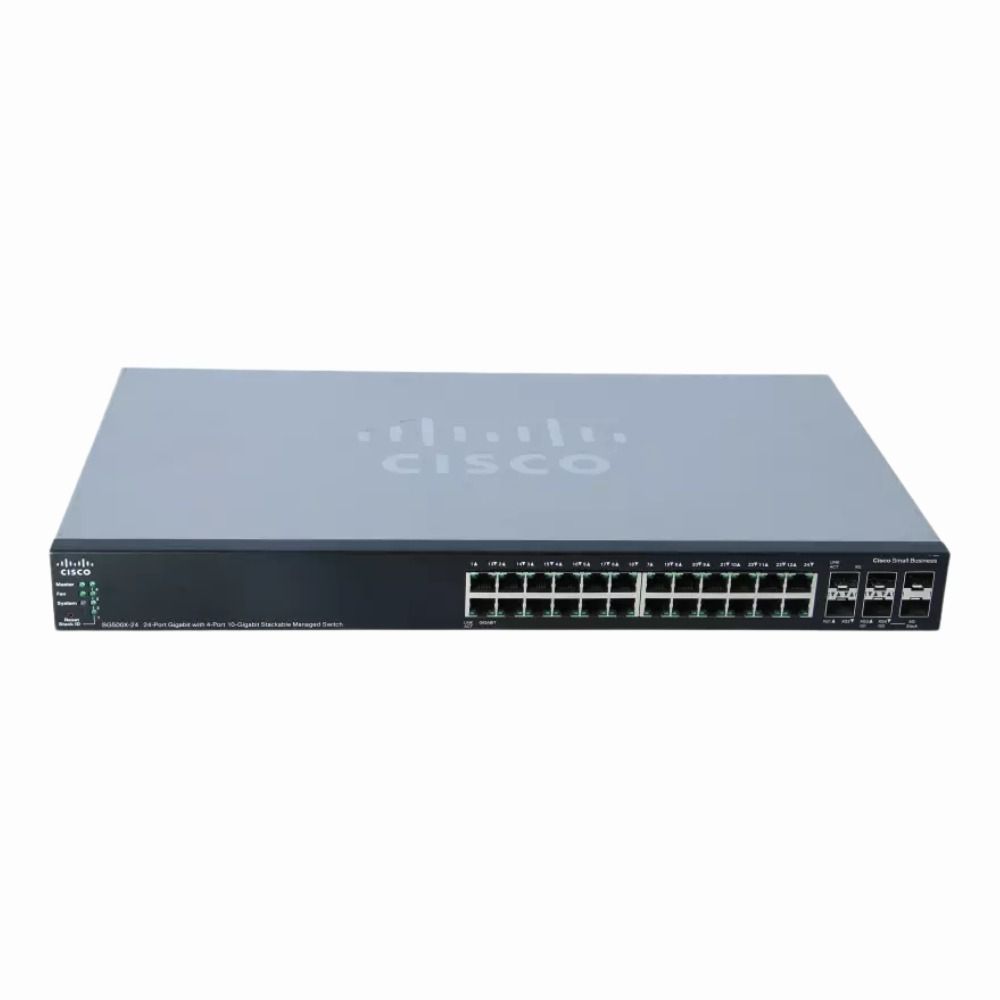

The Cisco Small Business 500 Series SG500X-24-K9-G5 is a rack-mountable managed switch offering 24 gigabit Ethernet ports and 4 SFP slots, designed to provide versatile and robust network connectivity with layer 3 routing capabilities. It fits well in small business networks, allowing for efficient device interconnection and traffic management without complexity. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | SG500X-24-K9-G5 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T,1000Base-X |
| UpLink Ports | 4 x SFP (1000Base-X) |
| POE Support | No |
| Switch Forwarding Rate | 250 Mpps (calculated for 64-byte packets at full-duplex 128 Gbps switching capacity) |
| DRAM | 512 MB (approximate; device-class: 0.5 GB DRAM typical for SG500X series) |
| Flash Memory | 128 MB (flash storage for firmware/configuration; typical for SG500X appliances) |
| VLAN Support | Yes |
| Max VLANs Supported | 4096 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Latency | Approximately 2–3 µs (64-byte frames at line rate; typical low-latency Gigabit switching) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 entries (approx.) |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, VRRP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), Command-Line Interface (Console, SSH, Telnet), SNMP v1/v2c/v3, RMON, Syslog |
| Security | Yes |
| Remote Management Protocol | SNMP,HTTP,HTTPS,SSH,Telnet,CLI |
| Routing Protocol | Static,RIP,OSPF |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 13.0 in (44 x 440 x 330 mm) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X |
| Product Description |
|---|
This Cisco Small Business 500 Series switch offers reliable network performance with 24 gigabit Ethernet ports and 4 SFP slots, ideal for expanding network infrastructure. It's commonly used in office environments to connect workstations, servers, and other network devices efficiently. Built for IT professionals and small business owners, it provides layer 3 features that help manage traffic and optimize network performance. Its rack-mountable design fits neatly into standard server racks, making it a practical choice for organized networking setups. Key Features
This switch is often deployed in small to medium-sized businesses, branch offices, or network closets where reliable, scalable connectivity is needed. It helps maintain smooth communication between devices and supports growing network demands over time. |
