Product Overview |
|---|

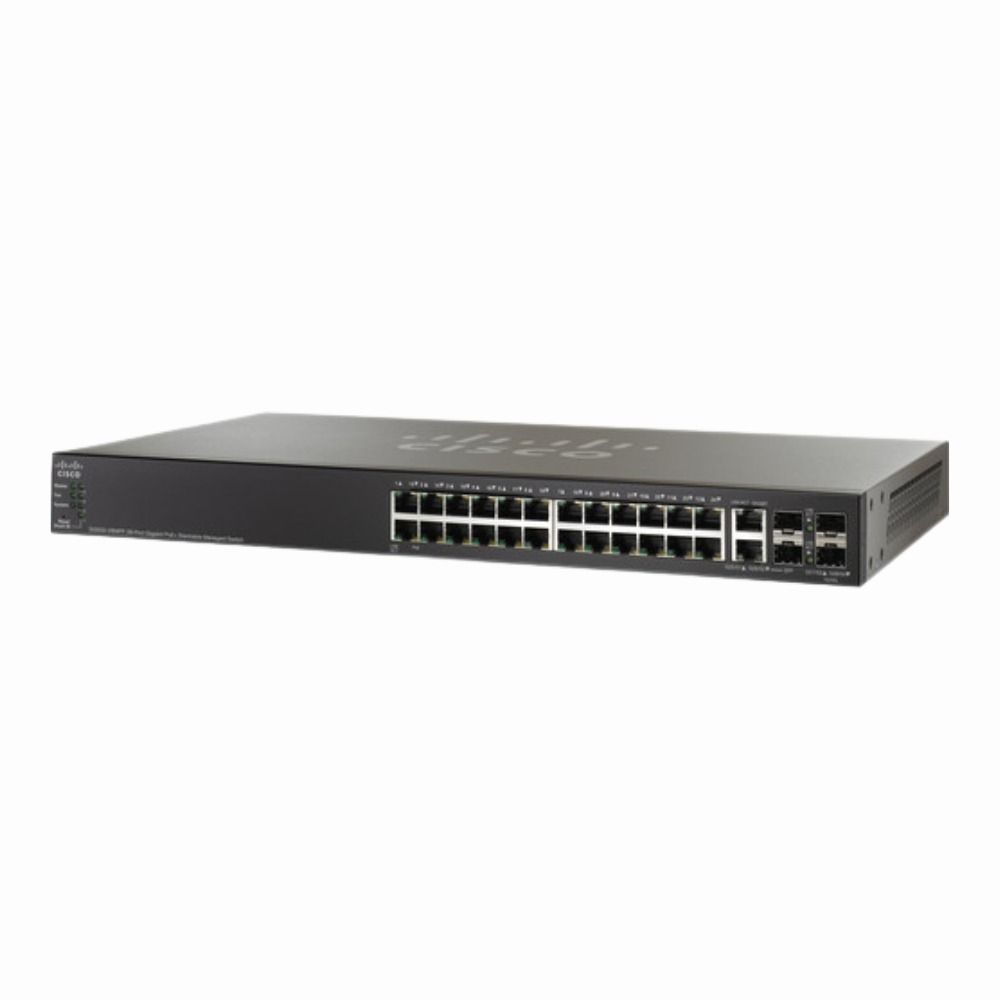

The Cisco SG500-28MPP-K9 is a versatile managed switch that combines PoE+ capability with Layer 3 routing and stacking features. It fits well in small to mid-size networks needing consolidated management of both data and power for connected devices, helping simplify infrastructure while allowing room to grow. |
General Information |
|
|---|---|
| Brand | Cisco |
| Part Number | SG500-28MPP-K9 |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Ports | 24 |
| Number of Ports | 28-Ports |
| Port Type | 10/100/1000Base-T, Combo RJ-45/SFP, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 41.67 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,Combo RJ-45/SFP,USB Console,Serial Console (RJ-45) |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), Command Line Interface (Console/SSH/Telnet), SNMP v1/v2c/v3, RMON, Syslog, TFTP/FTP |
| Remote Management Protocol | SNMP,SSH,HTTPS,Telnet,HTTP,RMON |
| Routing Protocol | Static,RIP |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.73 x 17.32 x 11.02 in |
| Weight | 5.00 |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
Miscellaneous |
|
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at |
Product Description |
|---|
The Cisco Small Business 500 Series SG500-28MPP-K9 is a managed gigabit Ethernet switch designed to deliver reliable, high-performance connectivity. It offers 24 PoE+ ports suitable for powering devices like IP phones and wireless access points directly through the network cable. Often found in small to medium-sized office environments, this switch provides essential Layer 3 features such as static routing, allowing more efficient traffic management within the network. Built for IT teams looking to combine straightforward management with scalability, it supports stacking so multiple units can operate as a single system. This model is commonly deployed in workplaces that need to support a mixture of data and voice traffic while maintaining robust network control. Key Features
This switch is typically found in office networks, small campuses, and retail locations where centralized management and power over Ethernet are critical. Its combination of features eases deployment of business applications and supports a variety of connected devices without requiring separate power sources. |
Use Cases |
|---|
The Cisco SG500-28MPP-K9 switch is well-suited for small to medium-sized enterprise environments that require centralized management of network traffic and power delivery to connected devices. Typical deployments include office networks where VoIP phones, wireless access points, and security cameras need reliable PoE+ support alongside advanced Layer 3 routing capabilities. How It's Used:
By combining PoE power delivery with Layer 3 routing and scalable stacking, this switch supports operational efficiency and network growth in dynamic SMB and branch office settings. Its capabilities allow IT teams to optimize infrastructure layout while ensuring consistent performance and simplified network management. |
