| Product Overview |
|---|

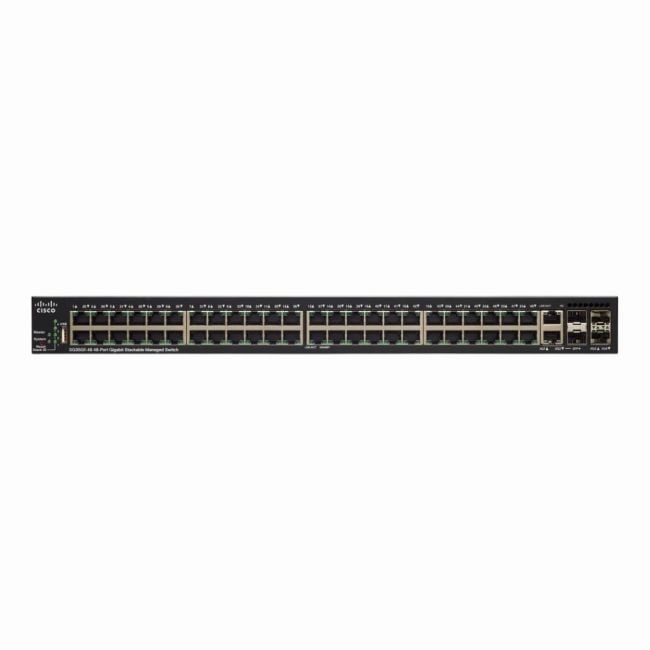

The Cisco SG350X-48PV-K9-JP is a managed Ethernet switch designed to deliver power and fast data connections across a mid-sized network. It fits well in settings where multiple devices require reliable power through PoE+ along with high-speed links, providing a solid foundation for growing network needs without added complexity. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | SG350X-48PV-K9-JP |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 40-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, 10GBase-T, 2.5GBase-T, 5GBase-T, RJ-45, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T,2.5GBase-T,5GBase-T,10GBase-T |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Latency | Approx. 2 µs (64-byte frames) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR) |
| Remote Protocols | Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), SNMPv1/v2c/v3, RMON, Syslog |
| Management Interfaces | Web (GUI), CLI, SSH, Telnet, SNMP, RMON, HTTP/HTTPS |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS, RMON |
| Routing Protocol | Static,RIP,OSPF |
| Power & Cooling | |
|---|---|
| Power | AC 100-240V, 50/60Hz; PoE budget up to 740W |
| Physical Characteristics | |
|---|---|
| Dimensions | 44 x 440 x 290 mm (1U rack-mount) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ad,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X,IEEE 802.3af,IEEE 802.3at |
| Product Description |
|---|
The Cisco SG350X-48PV is a versatile managed switch that facilitates high-speed connectivity with Power over Ethernet Plus (PoE+) support. It’s commonly used in mid-sized business networks where reliable power and data delivery to devices like IP phones, cameras, and access points are essential. Built for network administrators who require detailed control and scalability, this switch provides advanced Layer 3 features and multi-gigabit ports for future-proofing network infrastructure. It often finds its place in environments demanding stable performance and flexible deployment options. Key Features
This switch is typically deployed in office networks, surveillance systems, and wireless infrastructure setups where devices need both power and data connectivity. Its combination of PoE+ and multi-gigabit capabilities makes it a practical choice for expanding network demands without needing extensive rewiring. In real-world use, it helps maintain smooth operations for connected devices while offering the flexibility to handle future technology upgrades. |
