| Product Overview |
|---|

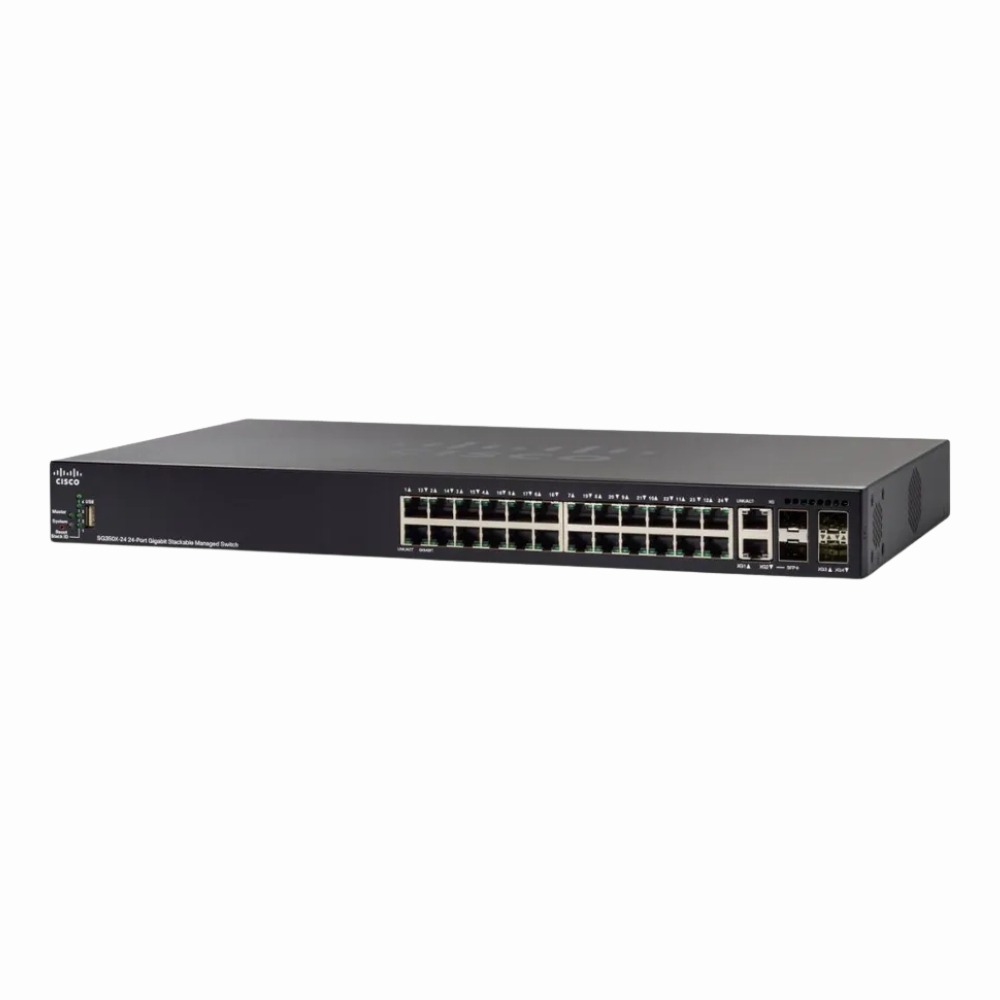

The Cisco Small Business SG350X-24MP is a Layer 3 managed switch that combines Power over Ethernet capabilities with flexible uplink options. It fits well where businesses require a compact switch delivering both data and power to endpoint devices while supporting network routing functions typically found in larger setups. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | SG350X-24MP-K9-NA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 26-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, SFP, SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP (1G), 2 x SFP+ (10G) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web UI (HTTP/HTTPS), CLI (SSH/Telnet), SNMP v1/v2/v3, RMON, Syslog |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 12.76 in |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Cisco Small Business SG350X-24MP is a managed Layer 3 switch built for reliable, high-speed network performance. It delivers up to 24 PoE+ ports, which simplifies powering devices like IP phones, cameras, and wireless access points directly through the switch. Often found in office environments and branch networks, this switch supports advanced networking functions such as static routing and link aggregation to optimize data flow. Network administrators benefit from its extensive management features that make monitoring and configuration straightforward. Key Features
This switch is commonly deployed in small business networks, branch offices, or anywhere a compact yet capable Layer 3 switch is needed. It helps maintain smooth connectivity and power delivery to essential network devices without extra cabling. |
