Name: SAS9300-4I4E Broadcom 4-Port 12Gb/s SAS PCIe 3.0 x8 Host Bus Adapter
Brand: Broadcom
SKU: SAS9300-4I4E
Price: 669.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview

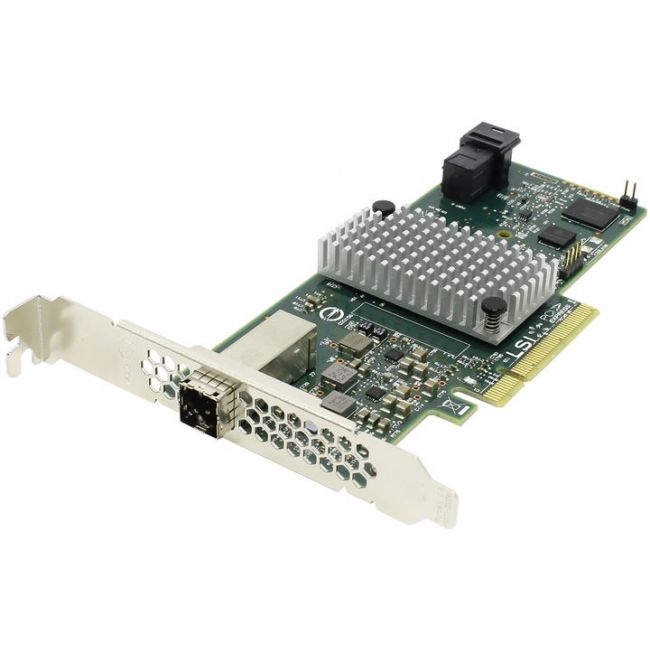

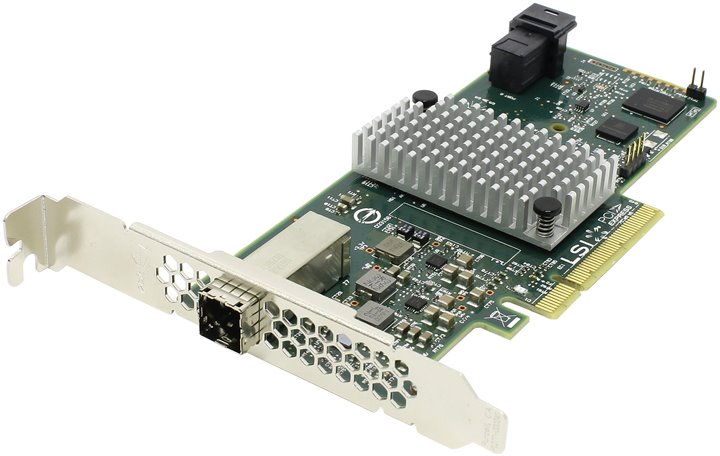

The Broadcom SAS9300-4I4E is a SAS host bus adapter that connects multiple storage devices via a PCIe 3.0 x8 slot. It offers four internal SAS ports running at 12Gb/s, balancing speed and compatibility with SAS and SATA drives. Commonly used in server environments, it provides the hardware support needed for managing complex storage setups without taxing the main CPU.

General Information
Brand	Broadcom
Part Number	SAS9300-4I4E

Technical Information
Protocol	SAS (Serial Attached SCSI)
Data Rate	12Gbps SAS
Port Count	4-Port (Quad)
Bus Interface	PCIe 3.0 x8
Connector Type	Mini-SAS HD (SFF-8644)
Chipset / Controller	Broadcom SAS3008
Network Topology	Point-to-Point
Bracket Height	Both Brackets Included

Advanced Features & Compatibility
Management Features	Boot from SAN, Selective LUN Masking, Diagnostics (D_Port)
OS Compatibility	Windows Server 2019, Windows Server 2022, VMware ESXi 7.x, VMware ESXi 8.x, RHEL 8, RHEL 9, SLES 15

Physical Characteristics
Form Factor	Low Profile PCIe Card
Weight	5.00
Condition	Refurbished

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus

Product Description
The Broadcom SAS9300-4I4E is a single host bus adapter designed to connect storage devices using SAS and SATA protocols. It provides four internal SAS ports that deliver fast 12Gb/s data transfer rates, making it suitable for storage-intensive applications. Often found in enterprise servers and storage arrays, this HBA is built for IT professionals needing reliable and efficient storage connectivity. It helps manage multiple drives with ease, supporting a range of configurations and RAID setups. Key Features Delivers high-speed data transfer with 12Gb/s SAS ports Equipped with PCIe 3.0 x8 for optimal throughput Compatible with both SAS and SATA drives Includes hardware RAID offload to reduce CPU load Supports multiple RAID levels for flexible storage management This adapter is typically deployed in data centers and business servers where storage performance and reliability are critical. It enables seamless integration of high-speed drives, helping ensure efficient data access and storage scalability.

Use Cases
The Broadcom SAS9300-4I4E is commonly deployed in enterprise data centers and server farms where high-throughput and reliable storage connectivity is critical. IT administrators and system integrators leverage this adapter to manage complex storage arrays and enhance data access speeds in virtualization and database environments. How It's Used: Connecting SAS and SATA drives in rack-mounted storage servers for scalable capacity expansion in large-scale data centers. Supporting virtualization hosts running multiple VMs that require fast, low-latency access to shared storage resources. Integrating with storage clusters to improve data availability and redundancy for mission-critical enterprise applications. Enabling remote office storage consolidation by linking multiple disk enclosures through high-speed SAS interfaces. Facilitating backup and archival solutions that demand high throughput without imposing CPU overhead. By offloading RAID processing and providing versatile SAS connectivity, this adapter enables efficient data handling and smoother storage management. It supports environments that require rapid data transfers and robust drive compatibility, thereby optimizing overall system performance and scalability.
