S8026GM2NRE

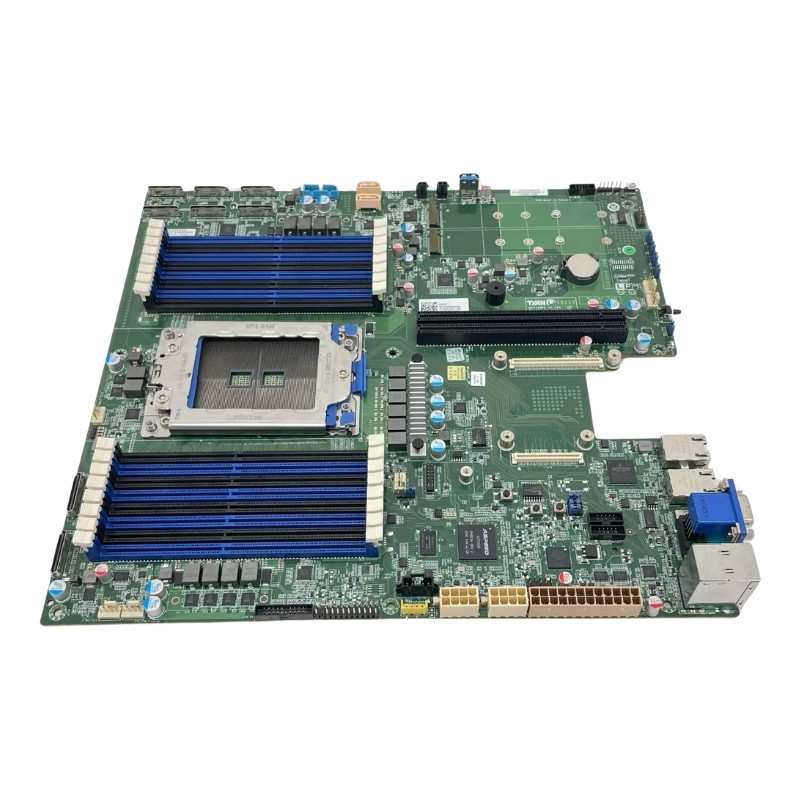

The Tyan Tomcat SX S8026 Server Motherboard (model S8026GM2NRE) is a high-performance solution designed to meet the demands of modern server environments. Equipped with the Aspeed AST2500 chipset, this motherboard is compatible with AMD EPYC™ 7000 Series processors, supporting configurations of up to 32 cores and 64 threads, making it ideal for heavy workloads and virtualization. The motherboard features 16 DDR4 DIMM slots, providing support for up to 2TB of memory, and ensures top-tier performance for data-intensive applications.

With advanced storage capabilities, the motherboard includes 8 x 80-Pin Oculink connectors offering 16 NVMe ports for high-speed storage and 2 x M.2 connectors supporting both NVMe and SATA drives. The board also includes PCIe Gen3 slots, with a x24 and x16 slot for expansion. For networking, the motherboard comes with dual 1GbE ports (Broadcom BCM5720), ensuring robust connectivity. Additionally, the video output is available through a VGA port (D-Sub 15-pin) for basic display needs.

Key Features

• Compatible with AMD EPYC™ 7000 Series processors, supporting up to 32 cores and 64 threads
• 16 x DDR4 DIMM slots, supporting up to 2TB memory at 2667 MHz
• 8 x 80-Pin Oculink connectors with 16 NVMe ports for high-speed storage
• 2 x M.2 connectors for NVMe/SATA storage
• Expansion capabilities with PCIe Gen3 x24 and x16 slots
• Dual 1GbE networking ports (Broadcom BCM5720) for efficient data transfer
• USB 3.0, USB 2.0, and VGA ports for versatile connectivity options
• EATX form factor for enterprise server setups

The Tyan Tomcat SX S8026 motherboard offers an ideal platform for building powerful server systems, whether for high-performance computing or data centers. Its support for high core count processors, expansive memory capacity, and multiple storage options ensures it can handle the most demanding workloads with ease.
