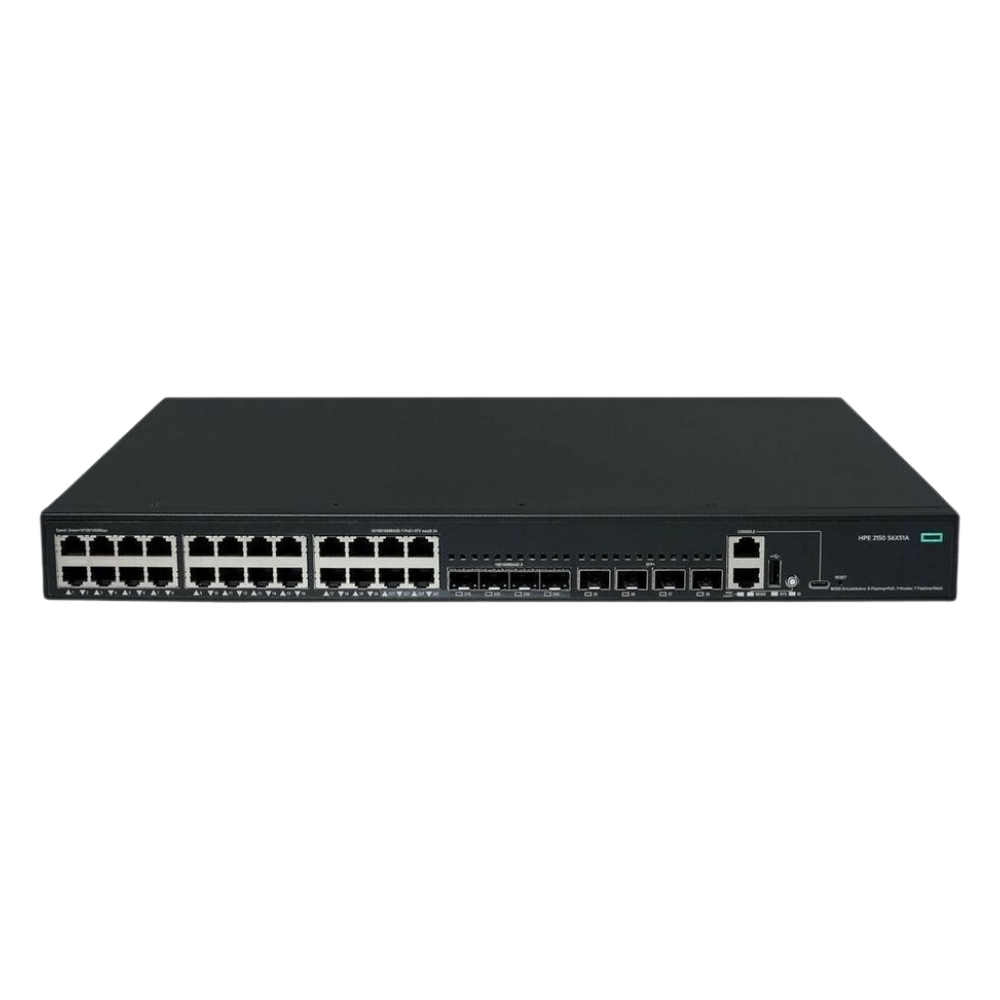

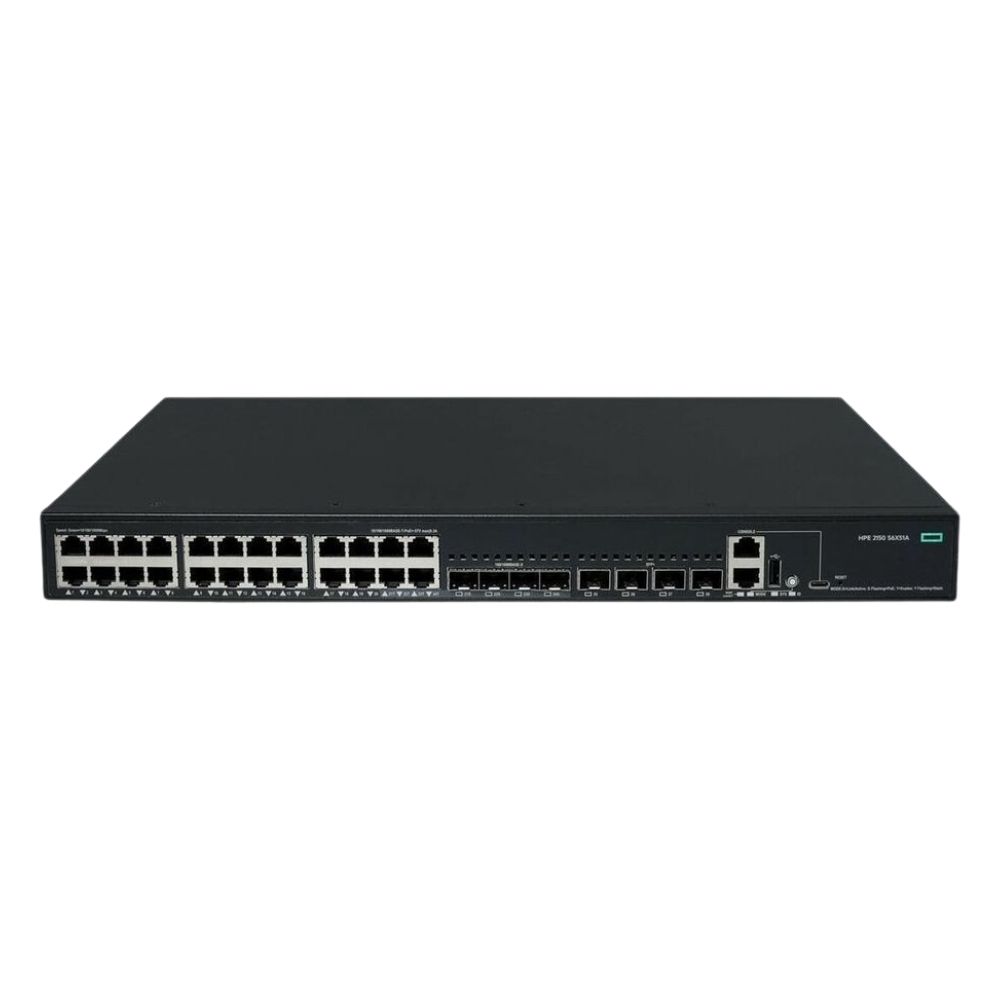

Name: S6X51A#ABA HPE Aruba CW2150 24-Port PoE+ Gigabit Managed Switch
Brand: HPE
SKU: S6X51A#ABA
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The HPE Aruba Networking CW2150 switch provides a comprehensive network solution with 24 PoE+ Gigabit ports, 4 1GbE SFP combo ports, and 4 10GbE SFP+ ports. It is a managed switch designed for organizations requiring both power delivery and flexible connectivity in a single device.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Managed Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 1000Base-X, 10G SFP+, Combo RJ-45/SFP
Port Speed	10/100/1000Base-T
UpLink Ports	4
POE Support	PoE+
Switching Capacity	128 Gbps
Switch Forwarding Rate	250 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Connector Type	RJ-45,SFP,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static
Remote Protocols	Yes
Management Interfaces	Web GUI,Command Line (SSH),SNMP,Serial Console (RJ-45)
Security Features	802.1X,ACLs,RADIUS,SSH
Management Type	Managed
Remote Management Protocol	SNMP v1/v2c/v3,SSH,HTTP/HTTPS

Physical Characteristics
Weight	3.00

Miscellaneous
Eco Friendly	Yes
Assembly Required	No

Product Description
The HPE Aruba Networking CW2150 (S6X51A#ABA) is a managed network switch designed to support demanding enterprise environments. It provides a versatile port configuration including 24 Gigabit Ethernet PoE+ ports, 4 1GbE SFP combo ports, and 4 10GbE SFP+ ports, allowing for flexible connectivity options across copper and fiber links. This switch is typically deployed in office networks, branch locations, and campus environments where both data and Power over Ethernet capabilities are needed. Network administrators use it to efficiently manage traffic and power supply to connected devices such as IP phones, wireless access points, and security cameras. Key Features 24 PoE+ Gigabit Ethernet ports provide power and data over a single cable 4 1GbE SFP combo ports support fiber connections for network expansion 4 10GbE SFP+ ports deliver uplink bandwidth for aggregation and core connectivity Managed switch capabilities enable VLANs, QoS, and network segmentation Compact form factor suitable for rack or desktop installation With this switch, organizations can centralize network management and deliver power to endpoint devices without additional cabling. Its combination of high port density and multi-speed fiber uplinks supports scalable network architectures and evolving bandwidth demands.

Use Cases
This switch is well-suited for enterprise and campus network environments that require reliable data and power delivery to edge devices. It supports deployments that need a combination of copper and fiber connections with managed network features. How It's Used: Connecting and powering IP phones and wireless access points in office buildings Providing fiber uplinks to aggregation switches or network cores Enabling VLAN segmentation and QoS policies in corporate networks Supporting security camera deployments with PoE+ power requirements Extending network reach with SFP and SFP+ fiber modules in campus environments The switch plays a central role in network infrastructure by consolidating power and data delivery while offering management tools for optimized traffic and security controls. Its flexibility helps accommodate growing network demands.

FAQ's
What does PoE+ mean on the S6X51A#ABA switch? PoE+ refers to Power over Ethernet Plus, which supplies up to 30 watts per port, allowing devices like IP phones and wireless access points to receive power and data over the same cable. Can the S6X51A#ABA switch support fiber connections? Yes, it includes 4 1GbE SFP combo ports and 4 10GbE SFP+ ports for fiber optic connectivity, supporting various SFP modules for network expansion. Is the CW2150 a managed or unmanaged switch? The CW2150 is a managed switch, providing advanced features such as VLAN configuration, quality of service, and network segmentation. What types of devices can be powered by the PoE+ ports? The PoE+ ports can supply power to compatible devices like IP telephones, wireless access points, and security cameras that support IEEE 802.3at standards. How many 10GbE uplink ports does the switch have? This model includes 4 10GbE SFP+ ports designed for uplink connections to aggregation layers or core switches. What installation options are available for the CW2150 switch? The switch supports rack mounting or can be used as a desktop unit, allowing flexible deployment in various network setups.
